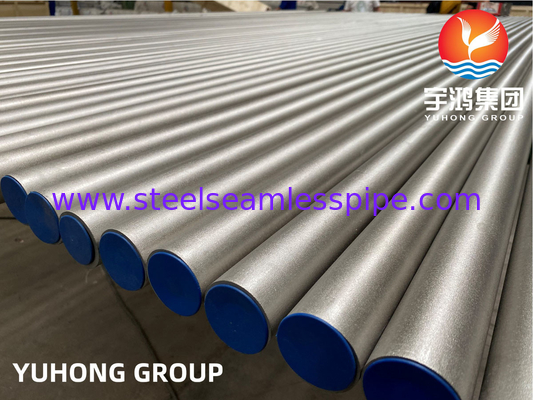

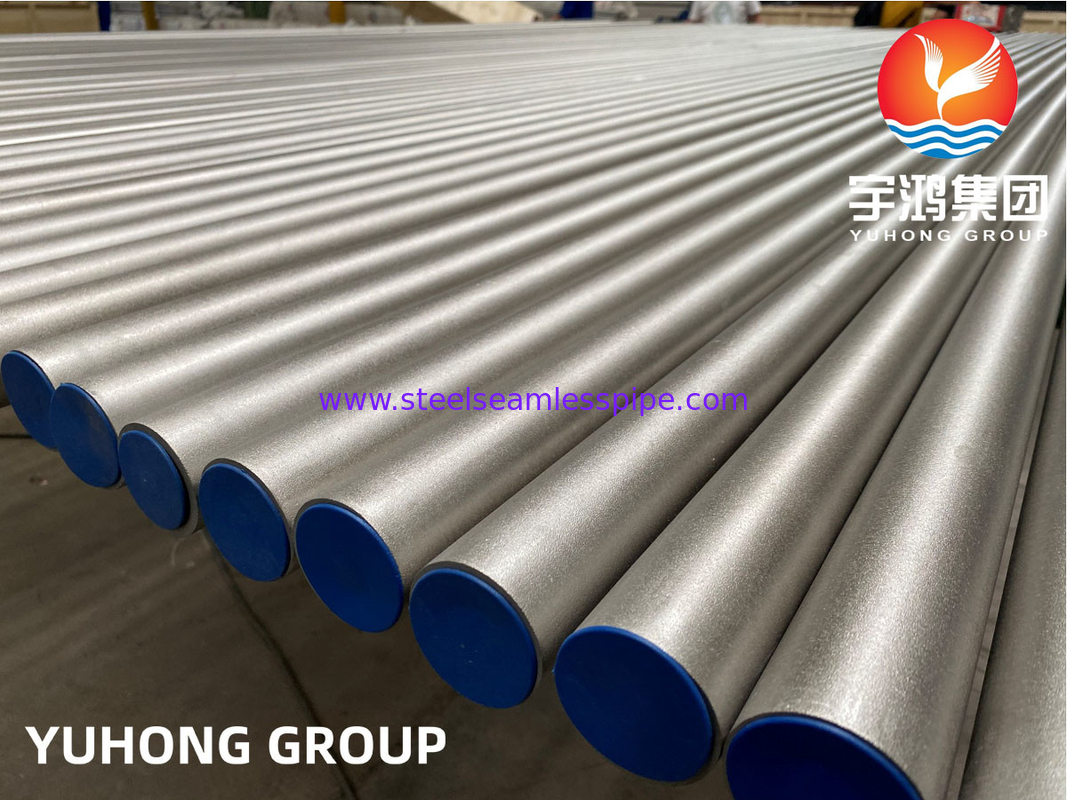

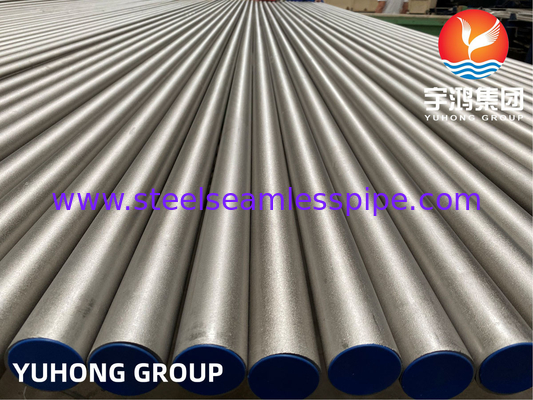

Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application

Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application

  • Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application
  • Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application
  • Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application
  • Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application
Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: INCOLOY800, INCOLOY 800H , INCOLOY 800HT, INCOLOY 825, ALLOY 8926
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10days->
Payment Terms: T/T, L/C
Supply Ability: 1500 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Material Grade: Alloy 800, Alloy 800H, Alloy 800HT, Alloy 825, Alloy 926 Standard: ASTM B407 , B163 , ASME SB407, ASME SB163
NDT: ET, HT, UT, PT OD: 3MM TO 1200MM
WT: 0.3MM TO 100MM Application: Petrochemical , Boiler , Heat Exchanger , Oil Refining, Tube Bundle
Condition: Pickled&Annealed, Polished, Bright Annealed. Quality Requirements: Mill Test Certificate (EN 10204/3.1); Third Part Inspection Is Acceptable.
Highlight:

800H Boiler Tube

,

Alloy 800 Boiler Tube

,

ASTM B407 Boiler Tube

Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application

YUHONG'S Incoloy 800H(UNS N08810) has a restricted carbon content range of 0.05 to 0.10%, which is in the upper portion of that of Incoloy 800, and is annealed at 1149 to 1177℃ (Incoloy 800 is annealed at 983 to 1038℃). These differences impart it to have higher stress rupture and creep properties than Incoloy 800.


Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application 0




Chemical Composition of Incoloy Alloy 825
Table 1. Chemical composition of Incoloy Alloy 825 (ASTM B163 Heat exchanger tube)


Element		 % Element %
Nickel 38.0--46.0 Carbon 0.05 max
Chromium 19.5--23.5 Manganese 1.0 max
Molybdenum 2.5--3.5 Sulfur 0.03 max
Copper 1.5 --3.0 Silicon 0.5 max
Titanium 0.6--1.2 Aluminium 0.2 max
Iron 22.0 min (~33%)

Tensile Properties of Incoloy Alloy 825
Table 2. Typical room temperature tensile properties (not for design. Consult the relevant material or product specification for design values)



Form		   Condition 0.2% Proof Stress
MPa		   Tensile Strength
MPa		   Elong
%
Tube   Annealed 440   770   35
Tube   Cold drawn 880   1000

15



Incoloy 800 Din 1.4876 Square Tube size and weight


DIMENSIONS WALL WEIGHT PER DIMENSIONS WALL WEIGHT PER
(MM) (MM) METRE (KG) (MM) (MM) METRE (KG)
12.7 x 12.7 1.20 0.44 40 x40 1.20 1.49
12.7 x 12.7 1.50 0.55 40 x40 1.50 1.85
15 x 15 1.20 0.53 40 x40 2.00 2.45
15 x 15 1.50 0.65 40 x40 3.00 3.75
20 x 20 1.20 0.71 50 x50 1.50 2.32
20 x 20 1.50 0.88 50 x50 2.00 3.08
20 x 20 2.00 1.19 50 x50 3.00 4.65
25 x 25 1.20 0.92 60 x60 2.00 3.71
25 x 25 1.50 1.14 60 x60 3.00 5.49
25 x 25 2.00 1.49 70 x70 3.00 6.53
25 x 25 3.00 2.20 80 x80 2.00 4.98
30 x 30 1.20 1.10 80 x80 3.00 7.53
30 x 30 1.50 1.37 100 x 100 2.00 6.40
30 x 30 2.00 1.84 100 x 100 3.00 9.53
30 x 30 3.00 2.72




Nickel Alloy 800 Capillary Tube Size Chart


Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 - 0.317 0.064 - 0.089
29 o.330 - 0.342 0.064 - 0.089
28 0.355 - 0.368 0.076 - 0.102
27 0.406 - 0.419 0.089 - 0.115 0.064 - 0.089
26 0.457 - 0.469 0.089 - 0.114
25 0.508 - 0.520 0.115 - 0.140 0.089 - 0.114
24 0.558 - 0.571 0.114 - 0.140 0.089 - 0.114   0.051 - 0.102
23 0.635 - 0.647 0.140 - 0.165 0.089 - 0.114   0.051 - 0.102
22 0.711 - 0.723 0.140 - 0.165 0.096 - 0.121 0.077 - 0.102 0.051 - 0.102
21 0.812 - 0.825 0.140 - 0.165 0.102 - 0.127   0.051 - 0.102
20 0.901 - 0.914 0.108 - 0.165 0.108 - 0.134
19 1.054 - 1.079 0.166 - 0.216 0.102 - 0.140 0.070 - 0.108
18 1.257 - 1.282 0.191 - 0.241 0.127 - 0.165 0.083 - 0.121 0.051 - 0.102
17 1.460 - 1.485 0.177 - 0.229 0.115 - 0.152 0.083 - 0.127 0.057 - 0.102
16 1.638 - 1.663 0.204 - 0.254 0.127 - 0.165 0.096 - 0.133 0.070 - 0.121
15 1.816 - 1.841 0.204 - 0.254 0.127 - 0.165 0.096 - 0.134 0.070 - 0.121
14 2.082 - 2.133 0.216 - 0.292 0.165 - 0.229 0.114 - 0.165 0.076 - 0.134
13 2.387 - 2.438 0.267 - 0.343 0.191 - 0.267
12 2.743 - 2.749 0.267 - 0.321
11 3.023 - 3.073 0.293 - 0.368 0.216 - 0.292
10 3.378 - 3.429 0.318 - 0.394 0.216 - 0.292


Application
Incoloy 825 is the material of choice in a wide variety of applications up to a temperature of approximately 550C (1020F),

  • Chemical Processing
  • Nuclear Fuel Reprocessing
  • Acid Production
  • Pickling Equipment

Boiler Tube Nickel Alloy ASTM B407 Alloy 800 800H 800HT for Tube bundle Application 1
