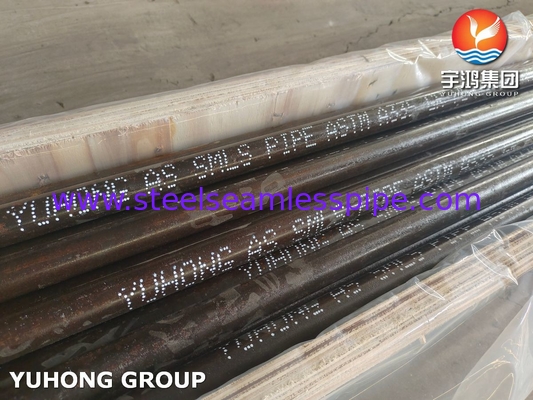

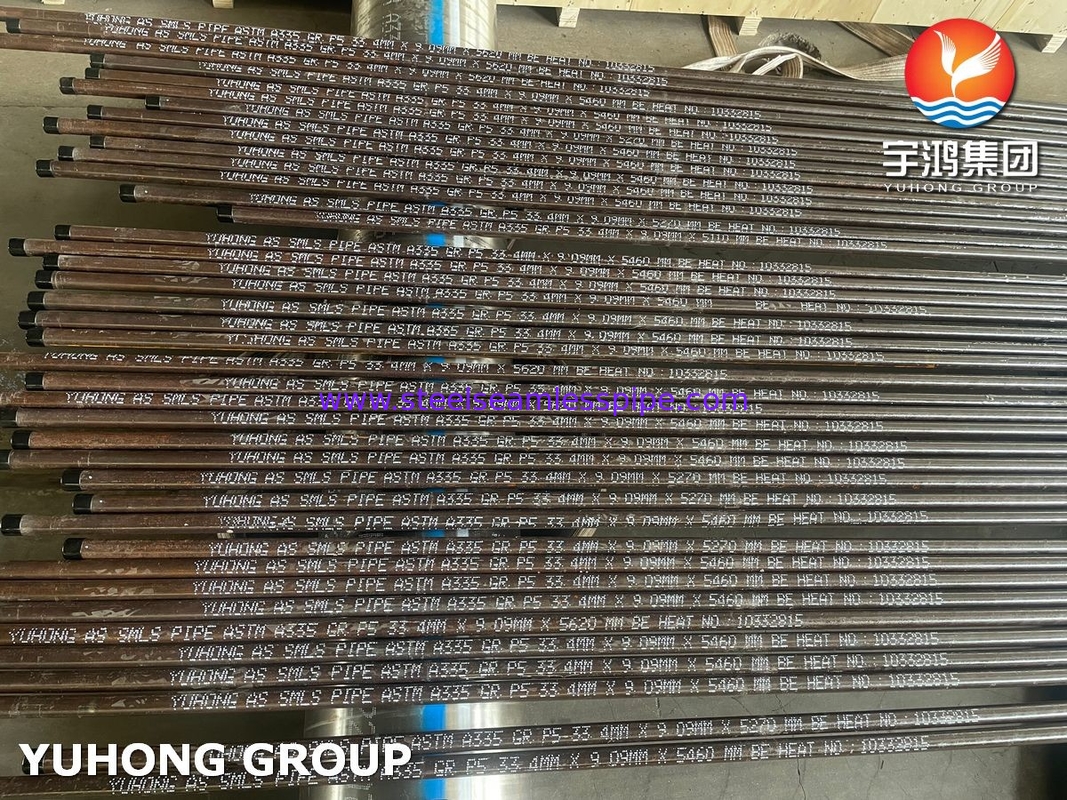

Alloy Steel Seamless Tubes ASTM A335 P5 Black Painting Beveled End Pipe

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, BV, DNV, GL, LR, SGS, IEI
Model Number:	ASTM A335 P11,ASTM A335 P22, ASTM A335 P5, ASTM A335 P9, ASTM A335 P91

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Packaging Details:	BUNDLE,PLYWOOD CASE
Delivery Time:	7DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Model:	ASTM A335 P5	SURFACE:	BLACK/VANISH
STANDARD:	ASTM A335	OD:	1/2" TO 24 "
LENGTH:	Single Random, Double Random & Cut Length.	END:	PLAIN,BEVELED
Highlight:	Black Painting Alloy Steel Seamless Tubes , ASTM A335 Alloy Steel Seamless Tubes , Beveled End Alloy Steel Seamless Tubes

Alloy Steel Seamless Tubes ,ASTM A335 P5,Black Painting,Beveled End Pipe

ASTM A335 P5/ASME SA335 P5 pipe, Chrome content at 4.00% to 6.00 %, Moly content 0.45% to 0.65%. Also called P5 grade Chrome Moly Alloy Pipe, it is in seamless made used for high-temperature and corrosion environment. Corresponding to welded pipe standard in ASTM A691 5CR, made from ASTM A387 Grade 5 steel plate.

Alloy steel seamless pipe/tube
PIPES & TUBES	: ASTM A335, ASTM A213, ASTM A691
PIPES FITTINGS	: ASTM A234
FITTINGS & FLANGES	: ASTM A182
GRADES	: P1/P5/P9/P11/P12/P22/P91 & T5/T9/T11/T22/T91
FORM (PIPES)	: SEAMLESS / E.R.W / EFSW
Yuhong Special Steel is Exporters & Supplier of alloy steel seamless pipe, alloy steel pipe gr p5, alloy steel pipe gr p11, alloy steel pipe gr p9, alloy steel pipe gr p22, alloy steel pipe gr p91, ASTM A335, ASTM A213, ASTM A691.
Available Shapes :
Tubes & Pipes (SEAMLESS ) up to 30". Tubes & Pipes (ERW ) up to 60". Sheets / plates up to 150 MM. Rod / Bar up to 350 MM. Circle up to 1000 & Above as per your requirements. thickness up to 200 MM & Above as per requirements.

Alloy Steel Seamless Pipe A 335 P5 :

Size : 1/2" TO 24 "IN OD & NB

Schedule: SCH20, SCH30, SCH40.
Type : Seamless / Fabricated
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End.

MATERIALS :
Alloy Steel Pipe A335 P5 – AS Pipe A335 P5
ASTM A335, Gr. P5, P9, P11, P12, P21, P22 & P91

Chemical composition(%):

Grade	C	Mn	P≤	S≤	Si	Cr	Mo
P11	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65
P22	0.05-0.16	0.30-0.60	0.025	0.025	≤0.50	1.90-2.60	0.87-1.13
P5	≤0.15	0.30-0.60	0.025	0.025	≤0.50	4.00-6.00	0.45-0.65
P9	≤0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.90-1.10
P91	0.08-0.12	0.30-0.60	0.020/0.010	0.020/0.010	0.02-0.50	8.00-9.50	0.85-1.05
P92	0.07-0.13	0.30-0.60	0.020/0.010	0.020/0.010	≤0.50	8.50-9.50	0.30-0.60
