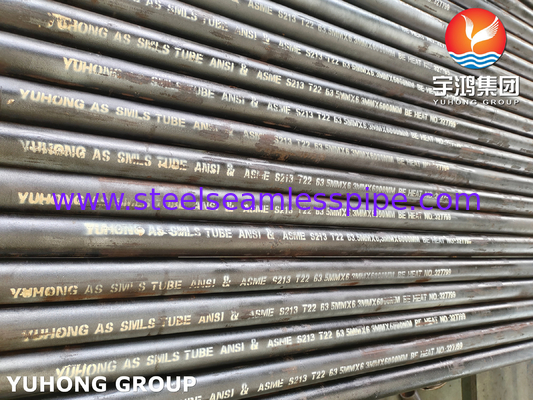

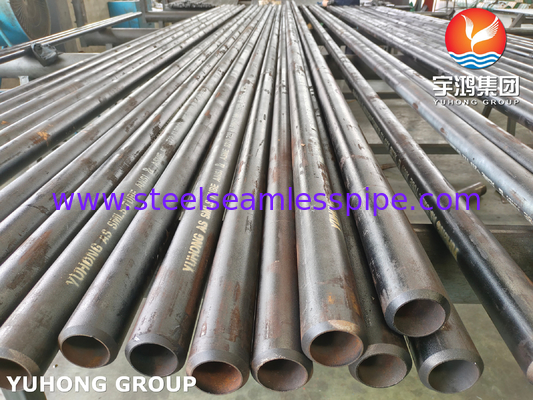

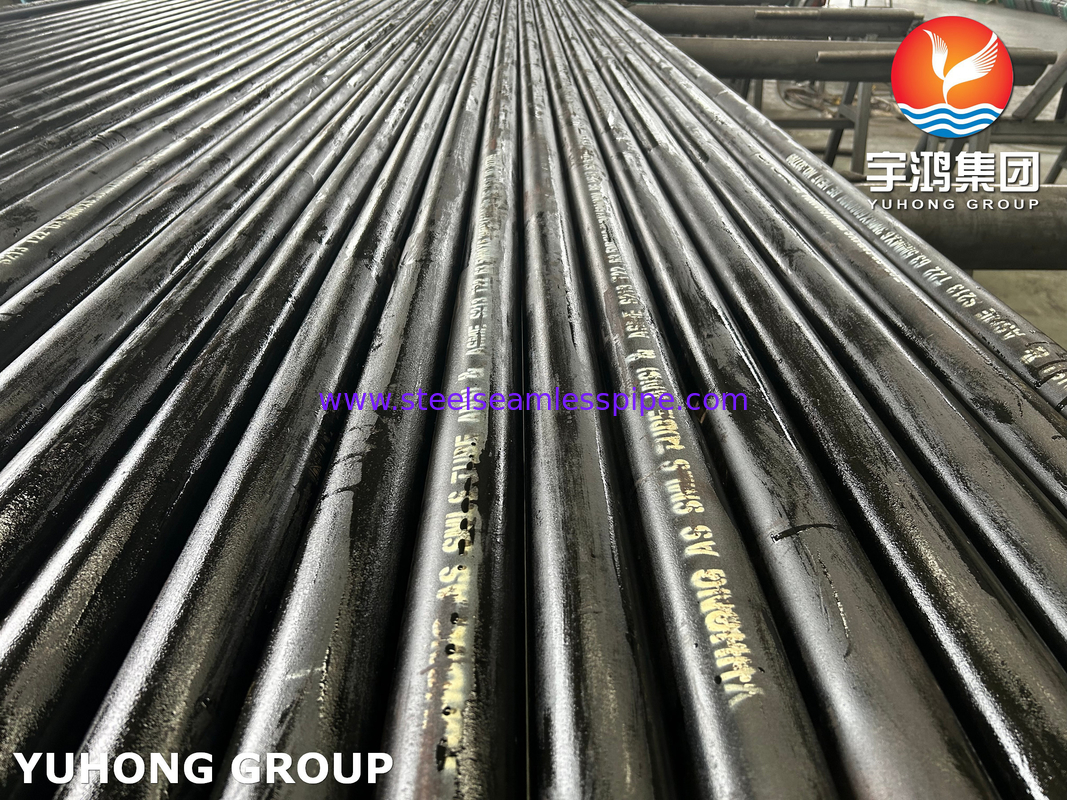

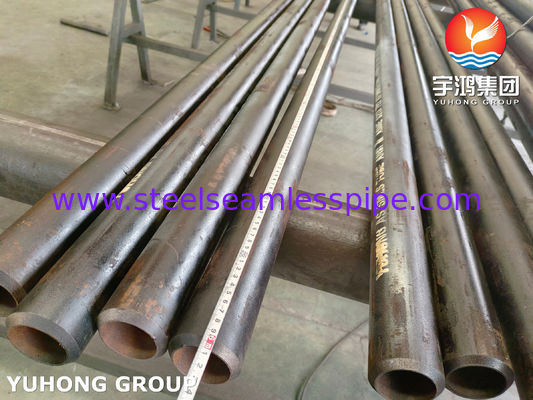

Alloy Steel Tube ASTM A213 T22 Seamless Boiler Tube For Fired Heaters And Heat Exchangers
ASTM A213 T22 is a specification for seamless ferritic and austenitic alloy steel boiler, superheater, and heat-exchanger tubes. These tubes are commonly used in high-temperature applications in power plants, refineries, and other industrial settings. The T22 designation indicates that the alloy steel tube is made from a material that contains 2.25% chromium and 1% molybdenum, which gives it improved corrosion resistance and high-temperature strength. This alloy steel tube is suitable for operating temperatures up to 600°C (1112°F).
ASTM A213 T22 seamless alloy steel tubes are available in various sizes and thicknesses to meet specific application requirements. They are typically used in high-pressure and high-temperature environments where resistance to corrosion and thermal stress is crucial. These tubes are usually supplied in the normalized and tempered condition, which ensures high strength and toughness. There are many good qualities like high tensile strength, high durability, flexibility, non-corrosive, longevity, tough construction, hardness. Also, ASTM A213 T22 seamless alloy steel tubes have excellent resistant ability against general corrosion, stresses corrosion cracking, crevice corrosion, pitting and oxidations.
Equivalent Grades:
| STANDARD |
WERKSTOFF NR. |
UNS |
| A213 T22 |
1.7380 |
K21590 |
Features Of Alloy Steel Tubes:
1. High temperature resistance: ASTM A213 T22 Alloy Steel Tubes are designed to withstand high temperatures, making them ideal for applications in industries such as power generation, chemical processing, and petrochemical.
2. Corrosion resistance: These tubes are resistant to corrosion, making them suitable for use in harsh environments where corrosion is a concern.
3. Excellent mechanical properties: ASTM A213 T22 Alloy Steel Tubes have excellent mechanical properties, including high tensile strength, yield strength, and impact resistance.
4. Good weldability: These tubes can be easily welded using standard welding techniques, making them easy to install and fabricate.
5. High pressure capabilities: ASTM A213 T22 Alloy Steel Tubes can withstand high pressure applications, making them suitable for use in piping systems and pressure vessels.
6. Versatile applications: These tubes can be used in a wide range of applications, including heat exchangers, boilers, superheaters, and condensers.
7. Conformance to ASTM standards: ASTM A213 T22 Alloy Steel Tubes meet the specifications set by ASTM International, ensuring quality and consistency in their performance.
Chemical Composition(%):
| C |
0.05-0.15 |
| Mn |
0.30-0.60 |
| P |
0.025 max |
| S |
0.025 max |
| Si |
0.50 |
| Cr |
1.90-2.60 |
| Mo |
0.87-1.13 |
Mechanical Properties:
| Tensile Strength, MPa |
415 min |
| Yield Strength, MPa |
205 min |
| Elongation, % |
30 min |
Applications Of ASTM A213 T22 Alloy Steel Tubes:
1. Power Generation: ASTM A213 T22 alloy steel tubes are commonly used in power generation plants for their high temperature and pressure resistance. They are often used in boilers, superheaters, and heat exchangers in steam turbines and other power generation equipment.
2. Chemical Processing: The corrosion resistance and high temperature capabilities of ASTM A213 T22 alloy steel tubes make them ideal for use in chemical processing plants. They are commonly used in reactors, distillation columns, and other equipment that requires resistance to corrosive chemicals and high temperatures.
3. Oil and Gas Industry: ASTM A213 T22 alloy steel tubes are used in the oil and gas industry for both upstream and downstream applications. They are used in drilling equipment, pipelines, and refineries where high temperature and pressure resistance is required.
4. Automotive Industry: ASTM A213 T22 alloy steel tubes are used in the automotive industry for applications such as exhaust systems, turbochargers, and fuel injection systems. Their high temperature resistance and durability make them ideal for use in these critical components.
5. Aerospace Industry: ASTM A213 T22 alloy steel tubes are used in the aerospace industry for applications such as aircraft engines, landing gear, and hydraulic systems. Their high temperature resistance and strength-to-weight ratio make them ideal for use in aircraft components that require high performance and reliability.
6. Construction Industry: ASTM A213 T22 alloy steel tubes are used in the construction industry for applications such as structural support beams, building facades, and infrastructure projects. Their high strength and durability make them ideal for use in construction projects that require materials with high load-bearing capacity.
