EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry

EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry

  • EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
  • EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
  • EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
  • EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
  • EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
  • EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: EN10216-5 1.4541
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE

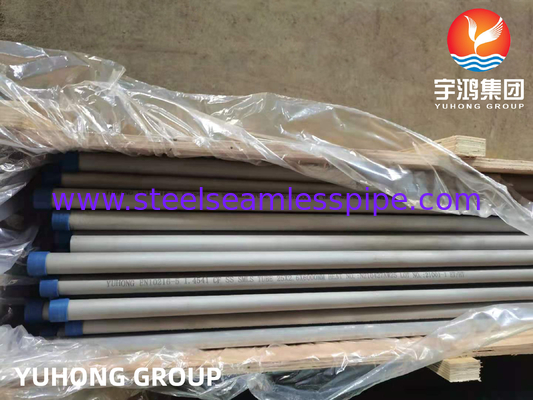

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons Per Month
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Standard: EN 10216-5 Application: Boiler Tube
Thickness: 2 - 70 Mm Technique: Hot Rolled,Cold Drawn,Cold Rolled
Length: 4-12 M Type: Seamless
Highlight:

EN10216-5 Seamless Tube

,

Oil and Gas Industry Seamless Tube

,

1.4541 Seamless Tube

EN10216-5 1.4541 Seamless Tube



YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 33 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 65 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.



EN10216-5 1.4541 seamless tube is a stainless steel tube that is made from grade 1.4541 stainless steel. This type of tube is commonly used in applications that require high temperature and corrosion resistance. The tube is seamless, which means that it does not have any welded joints, making it stronger and more durable than welded tubes.

The 1.4541 grade of stainless steel contains titanium, which provides added resistance to corrosion and high temperatures. This makes it an ideal material for use in applications such as chemical processing, petrochemicals, and power generation.

EN10216-5 1.4541 seamless tube is available in a range of sizes and thicknesses to suit different applications. It can be used in a variety of industries, including oil and gas, food processing, and pharmaceuticals.

The tube is manufactured to meet EN10216-5 standards, which ensures that it meets strict quality and performance requirements. It is also tested to ensure that it is free from defects and meets the required specifications.

Overall, EN10216-5 1.4541 seamless tube is a high-quality, reliable, and durable stainless steel tube that is suitable for use in a wide range of applications. Its excellent corrosion and temperature resistance make it an ideal choice for use in harsh environments.








Chemical Composition (wt.%)
Steel Grade C Si Mn P S Cr Mo Ni N Others
1.4301 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.5-19.5   8.0-10.5
1.4306 ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.015 18.0-20.0   10.0-12.0
1.4307 ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.5-19.5   8.0-10.5
1.4948 ≤0.12 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0   8.0-11.0
1.4401 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.015 16.5-18.5 2.0-2.5 10.5-13.5
1.4436 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.015 16.5-18.5 2.5-3.0 10.5-13.0
1.4404 ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.015 16.5-18.5 2.0-2.5 10.0-13.0
1.4571 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.015 16.5-18.5 2.0-2.5 10.5-13.5   Ti: 5xC to 0.70
1.4435 ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0 2.5-3.0 12.5-15.0
1.4541 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0   9.0-12.0   Ti: 5xC to 0.70
1.4941 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0   9.0-12.0
1.4550 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.015 16.5-18.5 2.5-3.0 10.5-13.5   Ti: 5xC to 0.70
1.4961 ≤0.10 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0   9.0-12.0
1.4539 ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.015 19.0-21.0 4.0-5.0 24.0-26.0
1.4529 ≤0.02 ≤1.00 ≤2.00 ≤0.035 ≤0.015 19.5-21.5 2.0-2.5 24.0-26.0
1.4547 ≤0.02 ≤0.70 ≤1.00 ≤0.035 ≤0.015 19.5-20.5 4.0-4.5 25.0-26.0 ≤0.11 Cu: 0.5-1.0
1.4563 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.015 24.0-26.0 4.0-5.0 19.0-22.0 ≤0.15
1.4958 ≤0.10 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0   9.0-12.0
1.4959 ≤0.10 ≤1.00 ≤2.00 ≤0.045 ≤0.015 17.0-19.0   9.0-12.0
1.4462 ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.015 21.0-23.0 2.5-3.5 4.5-6.5 0.10-0.22
1.4362 ≤0.03 ≤1.00 ≤2.00 ≤0.040 ≤0.015 23.0-25.0 0.10-0.60 3.5-5.5 ≤0.20
1.4507 ≤0.02 ≤0.50 ≤1.00 ≤0.035 ≤0.015 24.0-25.0 1.0-1.5 6.0-7.0 0.10-0.20 Cu: 1.5-2.5
1.4410 ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.015 25.0-26.0 3.0-4.0 6.0-7.0 0.10-0.22
1.4501 ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.015 24.0-26.0 3.0-4.0 6.0-8.0 0.10-0.25 Cu: ≤0.75
Mechanical Properties
Steel Grade Rp0.2 (MPa) Rm (MPa) A (%)
1.4301 ≥190 500-700 ≥45
1.4306 ≥180 480-680 ≥40
1.4307 ≥180 450-650 ≥40
1.4948 ≥180 460-660 ≥40
1.4401 ≥200 520-720 ≥40
1.4436 ≥200 520-720 ≥40
1.4404 ≥200 500-700 ≥40
1.4571 ≥210 500-700 ≥40
1.4435 ≥200 500-700 ≥40
1.4541 ≥210 500-700 ≥40
1.4941 ≥210 500-700 ≥40
1.4550 ≥200 520-720 ≥40
1.4961 ≥210 500-700 ≥40
1.4539 ≥230 540-740 ≥35
1.4529 ≥240 550-750 ≥35
1.4547 ≥300 650-850 ≥25
1.4563 ≥240 530-730 ≥35
1.4958 ≥210 500-700 ≥40
1.4959 ≥210 500-700 ≥40
1.4462 ≥450 620-850 ≥25
1.4362 ≥400 600-800 ≥20
1.4507 ≥450 680-880 ≥25
1.4410 ≥550 750-950 ≥20
1.4501 ≥550 750-950 ≥25


TECHNICAL SPECIFICATIONS

Specification Value
Standard EN 10216-5 Seamless Stainless Steel Tubes
Grade 1.4301, 1.4306, 1.4307, 1.4948, 1.4401, 1.4436, 1.4404, 1.4571, 1.4435, 1.4541, 1.4941, 1.4550, 1.4961, 1.4539, 1.4529, 1.4547, 1.4563, 1.4958, 1.4959, 1.4961, 1.4462, 1.4362, 1.4507, 1.4410, 1.4501
Delivery Condition HFD: Hot finished heat treated, descaled
CFD: Cold finished heat treated, descaled
CFA: Cold finished bright annealed
CFG: Cold finished heat treated, ground
CFP: Cold finished heat treated, polished
MFG. Methods Hot-finished or cold-finished
Test Categories TC1, TC2
Density 7.93 – 7.98g/cm³
Dimension OD: 10-762mm

WT: 1-100mm

L: 6000/12000mm
Inspection Certificate EN 10204 Type 3.1 (Mill Test Certificate), EN 10204 Type 3.2 (Witness Testing or 3rd Party Inspection)
Tests Chemical Analysis, Tensile Test, Flattening Test, Ring Tensile Test, Drift/Ring Expanding Test, Leak tightness Test, Visual & Dimensional Inspection, NDT


Applications



1. Chemical processing

2. Food and beverage processing

3. Oil and gas industry

4. Medical equipment

5. Aerospace industry

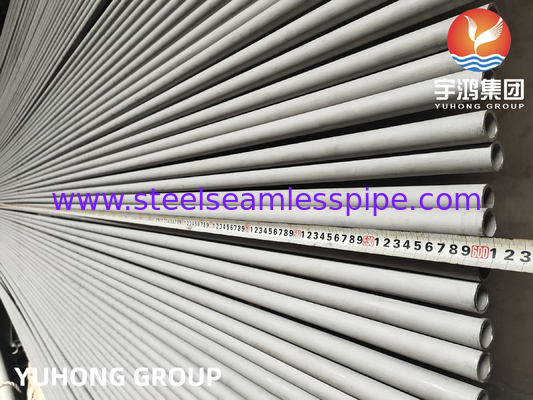

EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry 0

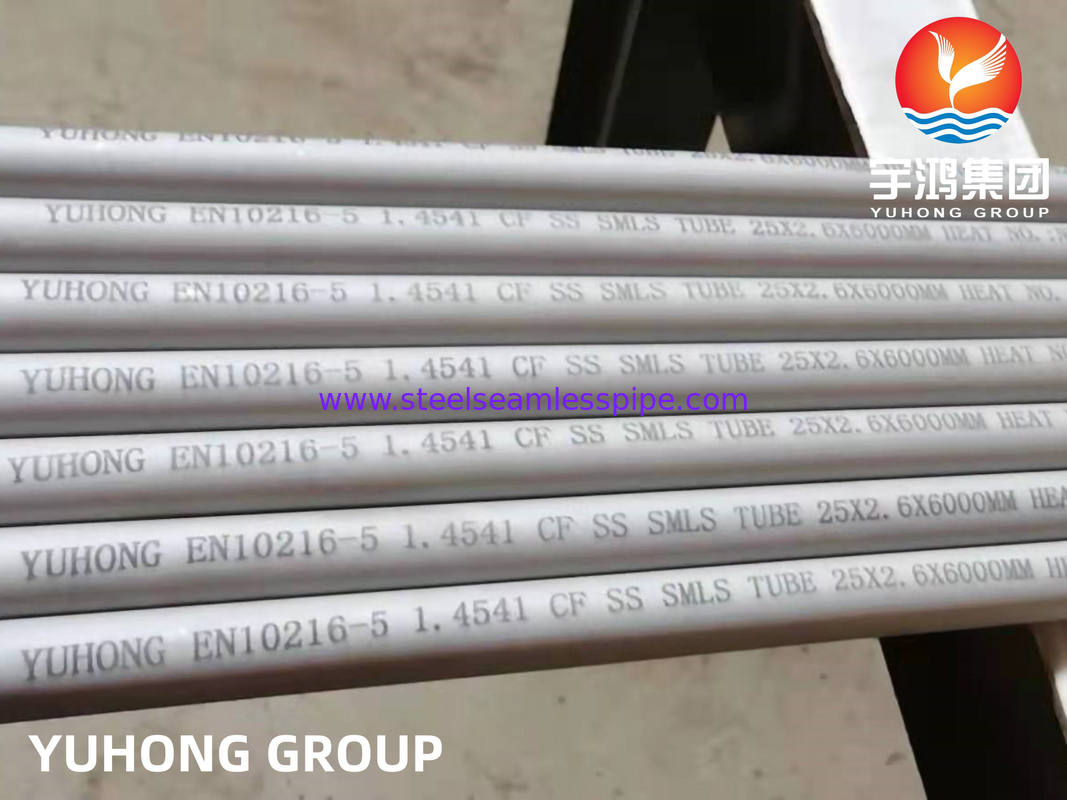

EN10216-5 1.4541 Seamless Tube For Power Generation And Oil And Gas Industry 1
