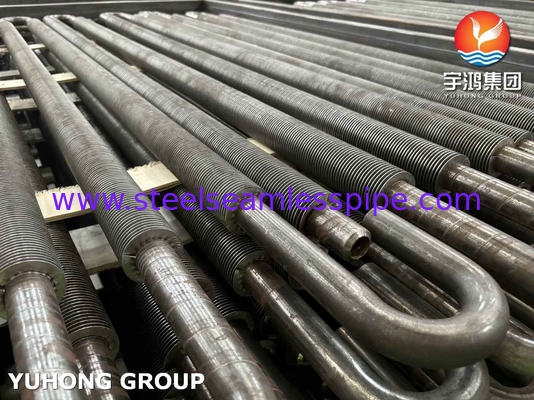

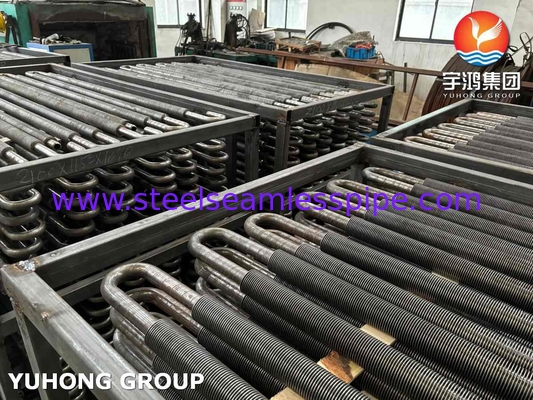

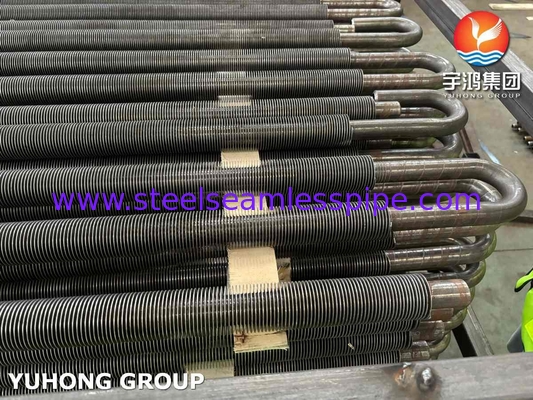

High Frequency Finned Tube HFW Heat Exchanger U Bend Finned Convection Tube

High Frequency Finned Tube HFW Heat Exchanger U Bend Finned Convection Tube

  • High Frequency Finned Tube HFW Heat Exchanger U Bend Finned Convection Tube
  • High Frequency Finned Tube HFW Heat Exchanger U Bend Finned Convection Tube
  • High Frequency Finned Tube HFW Heat Exchanger U Bend Finned Convection Tube
High Frequency Finned Tube HFW Heat Exchanger U Bend Finned Convection Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: Heat Exchanger U Bend Finned Tube
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Packaging Details: Plywood case, iron case
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Product Name: U Bend Finned Tube Tube Material:: Carbon Steel, Stainless Steel, Copper Alloy, Nickel Alloy
O.D.: 16mm - 38mm Radius: Can Custom
Length: Can Custom Type: Straight, U Bend
Application: Chemical And Petrochemical Plants, Oil And Gas Plants, Refineries, Power Plants And Renewable Energy Plants
Highlight:

High Frequency Finned Tube

,

Stainless Steel Finned Tube

,

U Bend Finned Convection Tube

HFW Finned Tube , Stainless Steel U Bend Finned Tube For Convection and Radiation Heater





A U bend finned tube is utilized as a heat exchanger component in a variety of industrial settings. It comprises a U-shaped tube with fins affixed to its outer surface. The main function of the U bend finned tube is to improve the heat transfer between the fluid circulating inside the tube and the adjacent air or gas. The fins expand the tube's surface area, enabling more efficient heat exchange. The U-shaped design is especially beneficial when space constraints or design specifications necessitate a compact layout of the heat exchanger.





Fin Tube Specification

PRODUCT TYPE NAME BARE TUBE MATERIAL FIN MATERIAL

Heat Exchanger

Finned

Tube

 EMBEDDED G-TYPE FIN TUBE CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY ALUMINUM
EXTRUDED SINGLE METAL GOMBINED METAL CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY COPPER, ALUMINUM

LOW FIN TUBE

T-TYPE FIN TUBE

 CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY /

BAMBOO TUBE

CORRUGATED TUBE

 CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY /
WOUND L/KL/LL TYPE FIN TUBE CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY COPPER,ALUMINUM
STRING STRING FIN TUBE ALUMINUM, COPPER, CARBON STEEL, STAINLESS STEL ALUMINUM, COPPER, CARBON STEEL, STAINLESS STEL
U-TYPE U-TYPE TUBE CARBON STEEL, COPPER, STAINLESS STEEL /
WELDING HF WELDING FIN TUBE CARBON STEEL, STAINLESS STEEL, ALLOY CARBON STEEL, STAINLESS STEEL, ALLOY
U-TYPE H/HH TYPE FIN TUBE CARBON STEEL, STAINLESS STEEL, ALLOY CARBON STEEL, STAINLESS STEEL, ALLOY
WELDING STUDDED FIN TUBE CARBON STEEL, STAINLESS STEEL, ALLOY CARBON STEEL, STAINLESS STEEL, ALLOY





Base tube material:

stainless steel, carbon steel, alloy steel

ASME SA213/ASTM A213 TP304/304L TP316/TP316L TP321 TP310S TP317,

ASME SA106/ASTM A106 Gr B Gr C,ASME SA179/ASTM A179,ASME SA192/ASTM A192





Material Grade

American Standard Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
GOST Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ





What 's the advantage of using U bend finned tube?
The advantage of using U bend finned tubes lies in their ability to efficiently enhance heat transfer between fluids inside the tube and the surrounding air or gas. The U-shaped configuration of the tube, combined with the fins attached to its outer surface, increases the surface area, thus allowing for greater heat exchange. Additionally, the U-shaped design is particularly advantageous when space limitations or specific design considerations require a compact arrangement of the heat exchanger. This can be especially beneficial in industrial applications where space efficiency is crucial.





Applications

Radiant Heater

Air-conditioner

Convection

Refrigerator

Economizer

chemical

petrochemical industries

other parts of Heat Industry.





Tag:

finned copper tube,

heat exchanger fin tube,

extruded finned tube
