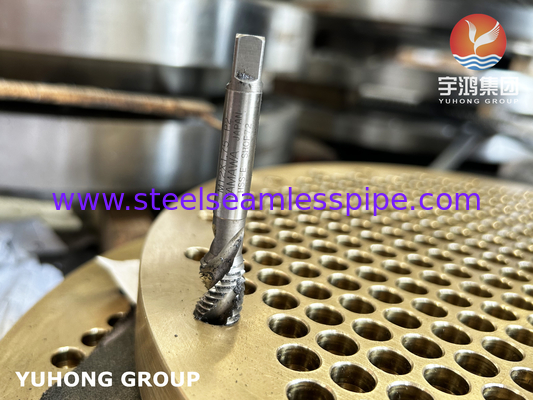

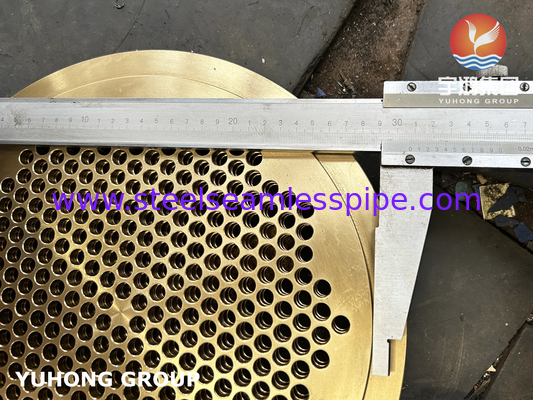

Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger

Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger

  • Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger
  • Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger
  • Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger
  • Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger
Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ASME, TUV, ABS, DNV, LR, ISO
Model Number: ASTM B171 C46400 TUBESHEET
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: According to client requirements/wooden case packing
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 300 pcs per month
Contact Now
Detailed Product Description
Standard: ASTM A171/ASME SA171 Material Grade: C46400/CZ112/CW712R/CuZn36Sn1
Size: As Per Client's Drawing NDT: UT, PT, MT
Application: Marine Hardware/Shipbuilding/Heat Exchangers Main Material: Copper-zinc-tin Alloy
Highlight:

Naval Brass C46400 Tubesheet

,

B171 Cuzn36sn1 Tubesheet

,

Marine Heat Exchanger Tubesheet

Naval Brass C46400 Tubesheet B171 Cuzn36sn1 For Marine Heat Exchanger





Overview



C46400 is a type of naval brass, which is a copper-zinc-tin alloy commonly used in marine environments due to its excellent corrosion resistance, strength, and antimicrobial properties. C46400 naval brass specifically contains around 59% copper, 40% zinc, and 1% tin. This alloy is known for its high strength, good ductility, and resistance to dezincification, making it suitable for various applications, especially in marine and naval industries.







Here are some of the key advantages of C46400 naval brass:



  1. Corrosion Resistance: Naval brass, including C46400, is highly resistant to corrosion in marine environments, especially in seawater and other corrosive media. This resistance helps to maintain the integrity and longevity of components made from this alloy.

  2. Strength and Durability: C46400 naval brass possesses good strength and durability, making it suitable for applications where mechanical properties are crucial. It can withstand moderate to high mechanical stresses without deforming or failing.

  3. Antimicrobial Properties: Brass alloys, including naval brass, have natural antimicrobial properties that inhibit the growth of bacteria on surfaces made from this material. This makes C46400 suitable for applications where hygiene and cleanliness are important.

  4. Ease of Machinability: Naval brass alloys like C46400 are known for their excellent machinability. They can be easily machined into various shapes and components, allowing for intricate designs and precise specifications.

  5. Wear Resistance: C46400 naval brass exhibits good wear resistance, making it suitable for components subjected to friction and wear, such as bearings, bushings, and pump components.

  6. Attractive Appearance: Naval brass has a distinctive golden color that can add aesthetic value to components and structures. It is often used in applications where appearance matters, such as decorative hardware and architectural elements.

  7. Non-Sparking Properties: Brass alloys are non-sparking, which means they do not produce sparks when struck against a hard surface. This property makes C46400 naval brass suitable for applications where fire or explosion hazards need to be minimized.

  8. Biocompatibility: Brass alloys are generally considered biocompatible, which means they are suitable for use in medical and food processing equipment where contact with the human body or consumables is required.

  9. Cost-Effectiveness: Naval brass, including C46400, offers a good balance of performance and cost, making it a cost-effective choice for many applications compared to more expensive corrosion-resistant materials like stainless steel.







Why need to use tubesheet?



Tubesheets are a crucial component in shell-and-tube heat exchangers and similar tube-based equipment for several reasons. Here are some key reasons why tubesheets are necessary in heat exchangers:

  1. Tube Support

  2. Sealing

  3. Heat Transfer Surface

  4. Fluid Distribution

  5. Thermal Expansion

  6. Structural Integrity

  7. Maintenance and Accessibility

In summary, tubesheets are essential components in heat exchangers because they provide support for the tubes, facilitate heat transfer, maintain sealing integrity, ensure structural stability, and allow for proper maintenance of the system. Their presence is critical for the reliable and efficient operation of shell-and-tube heat exchangers and similar tube-based equipment.

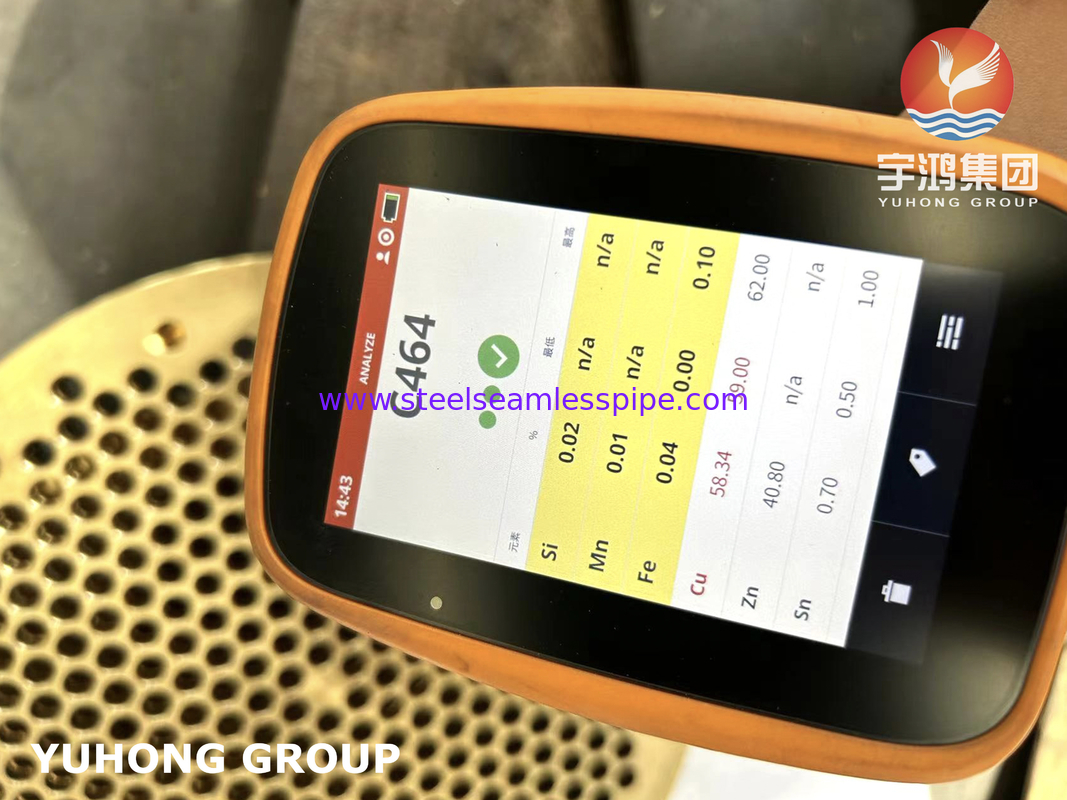

Chemical composition of C46400



Cu% Pb% Sn% Zn% Fe%
59.00-
62.00

0.20
0.50-
1.00

Rem.

0.10



Mechanical Propertiesof C46400



Properties

Metric

Imperial

Tensile strength

379-607 MPa

55000-88000 psi

Yield strength (depending on temper)

172-455 MPa

24900-66000 psi

Elongation at break (in 431.8 mm)

50%

50%

Elastic modulus

117 GPa

17000 ksi

Poisson’s ratio

0.34

0.34

Machinability (UNS C36000 (free-cutting brass) = 100)

30

30

Shear modulus

39.0 GPa

5660 ksi
