Alloy Steel Tubesheet ASTM A335 ASME SA335 F5N OD 1761MM182MM 2476HOLES19.25MM HEAT EXCHANGER APPLICATION

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG GROUP
Certification:	ASME, PED, TUV, ABS, DNV, GL , LR , KR, BV, CCS, COST, ISO
Model Number:	ASTM A182/ ASME SA182 F51, F53, F60, F55

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	USD, CNY , EURO
Packaging Details:	Ply wooden case / Pallet
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T
Supply Ability:	500 tons / month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Product Name:	Tubesheet,Baffle	Material:	ASTM A182/ ASME SA182 F51, F53, F60, F55
Size:	Customized Size	Surface:	Mirror Polish,Matt Finish, Sand-blasting
Application:	Heat Exchanger ,Petroleum, Natrual Gas, Water Treatment	Package:	Wooden Box Package
Highlight:	A335 F5N Alloy Steel Tubesheet , 1761MM*182MM Alloy Steel Tubesheet , 2476HOLES Alloy Steel Tubesheet

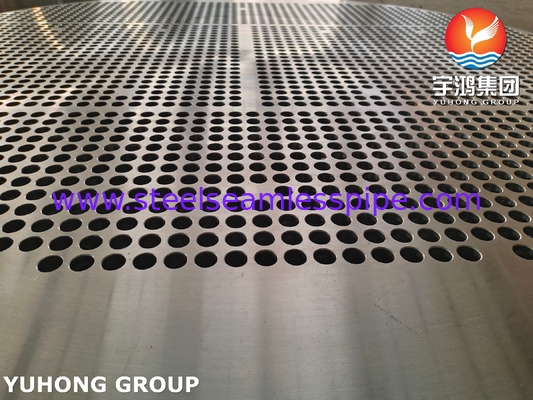

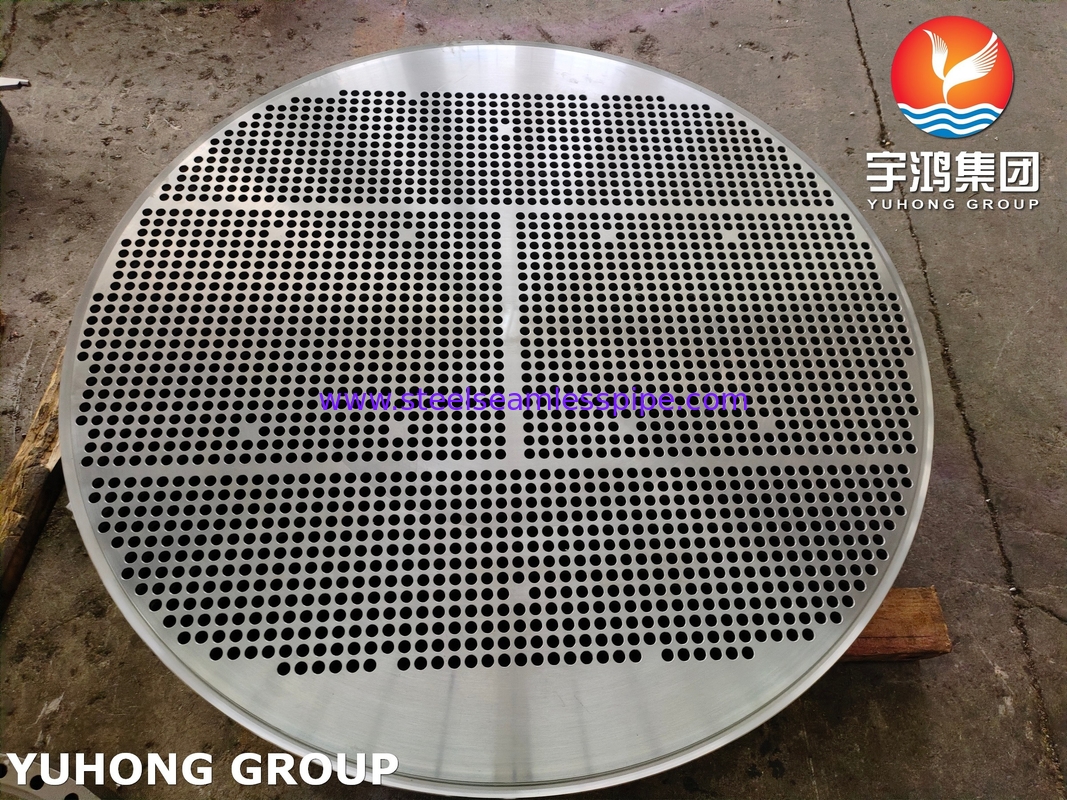

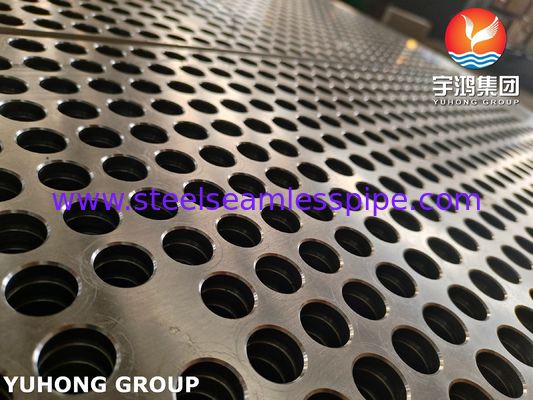

ALLOY STEEL TUBHESST A335 F5N OD 1761MM*182MM 2476HOLES*19.25MM AS PER DRAWING

Tubesheet is usually made from a round flat piece of plate,sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.

A tubesheet may be covered in a cladding material which serves as a corrosion barrier and insulator. Low carbon steel tube sheets can include a layer of a higher alloy metal bonded to the surface to provide more effective corrosion resistance without the expense of using the solid alloy,which means it can save a lot of cost.

Featured process:

Process 1: Rough face turning

Benefits

Apply high D.O.C turning for removing forged skins. By reducing the number of machining paths, the effects of work hardening of materials are reduced and the tool life is extended
After the operation of removing forged skin, apply high feed turning to reduce the machining time
The same insert can be mounted on both holders for high D.O.C and high feed
High economical solution due to 10-cornered insert

Process 2: Drilling (Thin tube sheet)

Benefits

DMC head for high accuracy drilling provides high hole positioning accuracy and hole straightness
DMC head does not require a pre hole process even in 12XD drilling, and it reduces machining time

Process 3: Drilling for clad materials

Benefits

Remove clad material layer by 1.5XD or 3XD drills with high tool rigidity first and then use long drill for further hole depth. By applying this machining method, stability and tool life are improved drastically in clad materials which is difficult to machine

Process 4: Deep drilling (Thick tube sheet)

Benefits

Apply exchangeable insert type gungrill,DeepTri-Drill for deep drilling process over 12XD hole depth
Gun drilling is a drilling method to get the highest straightness and hole positioning
Improves the quality of tubes sheets by preventing hole misalignment and hole bending, which are problems with thick tube sheet
