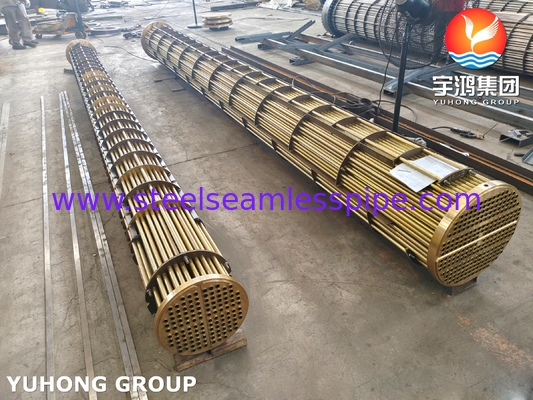

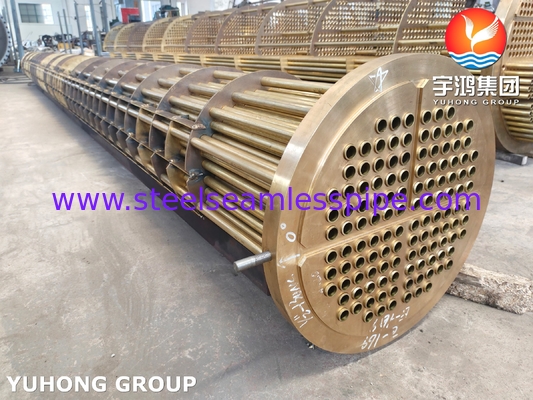

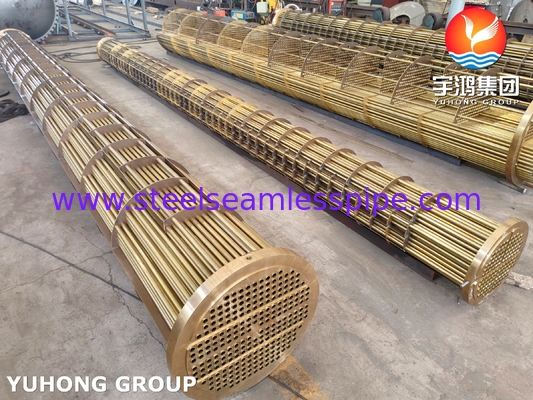

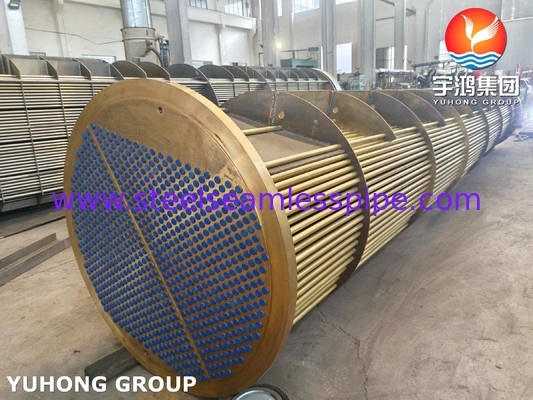

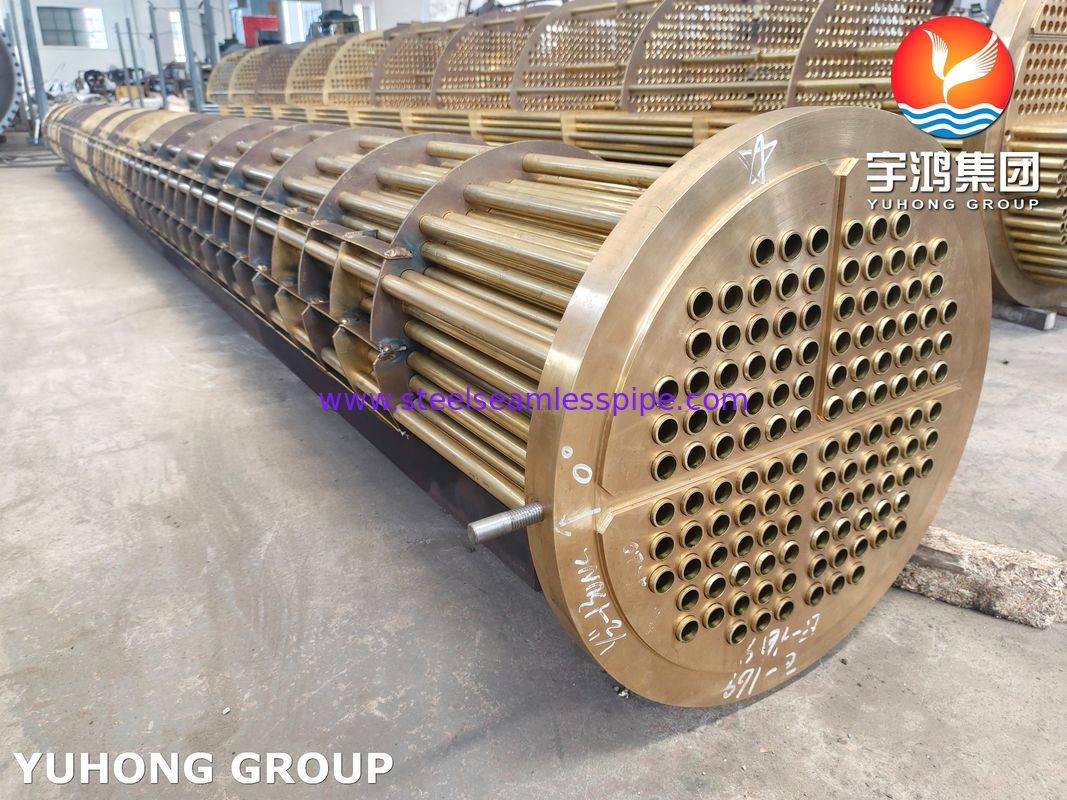

Copper Alloy Straight Tube bundle U Stamped C68700 Tube C46400 Tubesheet

What is tube bundle?

The heat exchange tube bundle is the main part of a heat exchanger, consisting of many parallel arranged tubes, which are usually made of metal materials such as copper, stainless steel, etc. Tube bundles can have different shapes and layouts, commonly including straight tube bundles, U-shaped tube bundles, spiral tube bundles, etc. The two ends of the tube bundle are connected to the shell of the heat exchanger through tube plates, used for heat exchange between the two media, and have high thermal conductivity and good isothermal properties. Heat exchanger is a common industrial equipment used to transfer heat from one medium to another during the heat exchange process, and the bundle level refers to the structure and arrangement of the bundle, which affects the heat transfer efficiency and performance of the heat exchanger.

Key characteristics of tube bundle include:

• Heat Transfer: Tube bundles are designed to facilitate the transfer of heat between two fluids. One fluid flows through the interior of the tubes (tube side), while the other fluid flows around the outside of the tubes (shell side), allowing heat exchange to occur.
• Construction: The tubes within a tube bundle are usually made of materials such as copper, steel, or other metals, depending on the specific application requirements. These tubes are often connected to tube sheets at both ends to maintain structural integrity and to ensure proper flow of the fluids.
• Arrangement: The tubes within a tube bundle can be arranged in various configurations, such as triangular, square, or staggered patterns, based on the heat transfer requirements and space constraints of the application.
• Baffles: Baffles are often used within the shell of a heat exchanger to support and guide the tubes. They help enhance fluid flow and improve heat transfer efficiency by directing the flow of the shell-side fluid.
• Tube Cleaning: Regular maintenance, including tube cleaning, is crucial to prevent fouling and maintain optimal heat transfer efficiency within the tube bundle.

Copper tube bundles' advantages:

• High Thermal Conductivity: Copper is an excellent conductor of heat, which allows for efficient heat transfer between fluids in the tube bundle. This property results in quick and effective heat exchange processes.
• Corrosion Resistance: Copper has natural corrosion resistance properties, making it ideal for applications where exposure to moisture or corrosive fluids is a concern. This resistance helps extend the lifespan of the tube bundle and reduces maintenance requirements.
• Malleability: Copper is a malleable material, meaning it can be easily formed and shaped into tubes of various sizes and configurations. This flexibility in manufacturing allows for customized tube bundle designs tailored to specific application requirements.
• Durability: Copper tube bundles are durable and have a long service life, especially when compared to some other materials. Copper is resistant to wear and tear, making it a reliable choice for heat exchangers operating under demanding conditions.
• Ease of Joining: Copper tubes can be easily joined together using various methods such as soldering, brazing, or welding. This facilitates the assembly of tube bundles and ensures secure connections that can withstand the pressures and temperatures within the heat exchanger.
• Biostatic Properties: Copper has biostatic properties, meaning it has the ability to inhibit the growth of bacteria and microorganisms. This property can be beneficial in applications where cleanliness and hygiene are essential, such as in food processing or medical equipment.
• Energy Efficiency: The high thermal conductivity of copper allows for energy-efficient heat transfer processes. Copper tube bundles can help reduce energy consumption and operating costs in heating, cooling, and refrigeration systems.
• Recyclability: Copper is a highly recyclable material, making copper tube bundles an environmentally friendly choice. Recycling copper reduces the need for new mining and processing, contributing to sustainability efforts.
• Aesthetics: Copper has a visually appealing appearance that can enhance the overall look of a heat exchanger or system. Additionally, the natural color of copper can help with heat absorption and dissipation.

Copper tube bundle application

• HVAC Systems
• Refrigeration Systems
• Heat Exchangers
• Solar Thermal Systems
• Geothermal Heat Pump Systems
• Industrial Processes
• Hydronic Heating Systems
• Oil Coolers
• Heat Recovery Systems
• Automotive Radiators
