ASTM B171 / B171M UNS C46400 Naval Brass Tube Sheet For Heat Exchanger

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Model Number:	ASTM B171 UNS C46400 Naval Brass Tubesheet

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Ply wooden case / Pallet
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (285)

Stainless Steel Seamless Tube (273)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (98)

Fin Tube (608)

Heat Exchanger (15)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (115)

Heat Exchanger Baffle (36)

Air Cooler (7)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (219)

Alloy Steel Tube (177)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (791)

Steel Flange (577)

Others (386)

Cladding Parts (5)

Detailed Product Description

Product Name:	Tubesheet	Standard:	ASTM B171, ASME SB171
Material:	UNS C44300, C46400, UNS C70600, C71500, C68700, Etc	Size:	Can Custom, As Buyer's Drawing Requirements
Shape:	Cylinder	NDT:	100% PT, UT, PMI
Application:	Tubular Heat Exchanger, Boiler, Pressure Vessel, Steam Turbine, Large Central Air Conditioning, Etc.
Highlight:	Heat Exchanger Naval Brass Tube Sheet , ASTM B171 Naval Brass Tube Sheet , UNS C46400 Naval Brass Tube Sheet

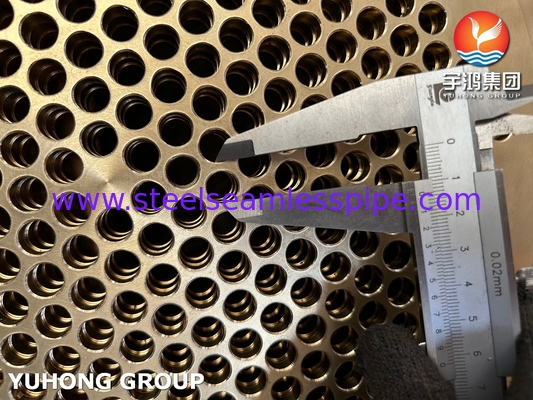

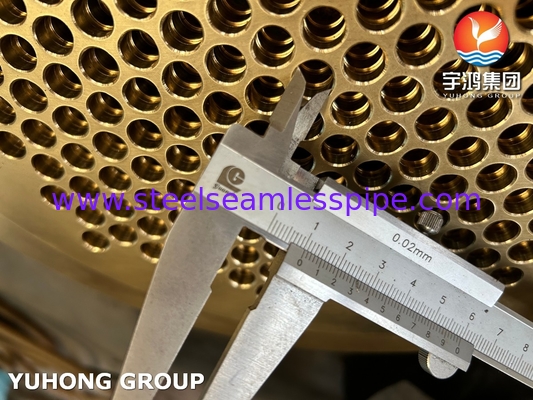

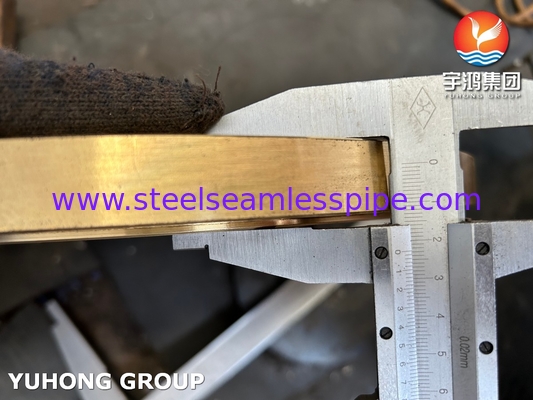

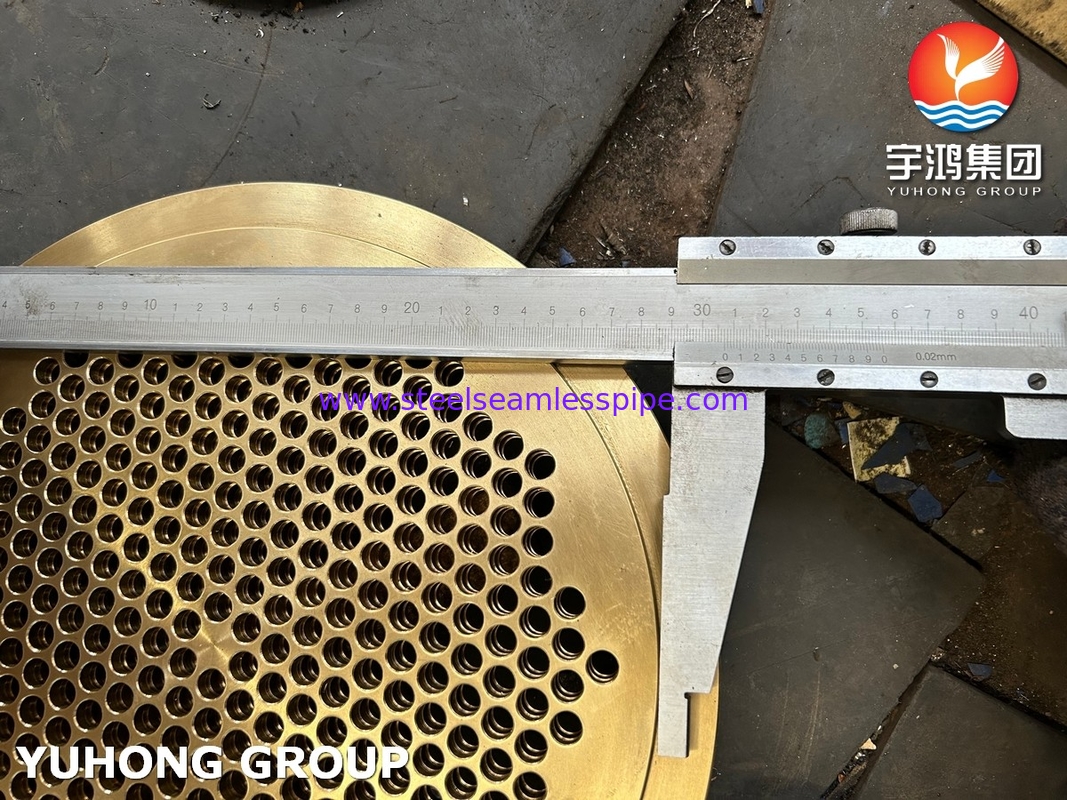

ASTM B171 Naval Brass C46400 Tube Sheet for Heat Exchanger

The material C46400, also known as naval brass, is a type of copper alloy that typically contains copper, zinc, and a small amount of tin. C46400 tubesheets are an excellent choice for industries. It's known for its good corrosion resistance, particularly in marine environments, and excellent strength and durability. Their ability to perform well in challenging environments makes them reliable for various applications, especially in marine setting and also frequently used in heat exchangers, condensers, and other marine and industrial applications where resistance to corrosion is essential.

**Chemical Composition**
	Elements
	Cu(1)	Pb	Sn	Zn	Fe
(1) Cu + Sum of Named Elements 99.6% min.
Min (%)	59.0		0.50
Max (%)	62.0	0.20	1.0	Rem	0.10

**Physical Properties**
Melting Point - Liquidus°F	1650
Melting Point - Solidus°F	1630
Densitylb/cu in. at 68°F	0.304
Specific Gravity	8.41
Electrical Conductivity% IACS at 68°F	26
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F	67
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F)	11.8
Specific Heat CapacityBtu/ lb /°F at 68°F	0.09
Modulus of Elasticity in Tensionksi	15000
Modulus of Rigidityksi	5600

**Mechanical Properties**
Form	Temper	Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Rockwell B scale	Rockwell 30T scale	Shear Strength (ksi)	Reduction of Area (%)	Ultimate Tensile Strength in Shear (ksi)	Section Size (in)	Cold Work (%)
* Measured at room temperature, 68°F (20°C).
Flat Products	1/4 Hard	H01	70 Typ		17 Typ	75 Typ	68 Typ	43 Typ			0.04
	As Hot Rolled	M20	55 Typ	25 Typ	50 Typ	55 Typ	55 Typ	40 Typ			1
	Light Anneal	O50	60 Typ	28 Typ	45 Typ	58 Typ	56 Typ	41 Typ			0.25
	Light Anneal	O50	62 Typ	30 Typ	40 Typ	60 Typ	57 Typ	41 Typ			0.04
	Soft Anneal	O60	58 Typ	25 Typ	49 Typ	56 Typ	55 Typ	40 Typ			0.25
Flat Products & Rod	Soft Anneal	O60	58 Typ		49 Typ					40 Typ	0.24
	Soft Anneal	O60	56 Typ	25 Typ	47 Typ				60 Typ	40 Typ	2
	Soft Anneal	O60	57 Typ	25 Typ	47 Typ				60 Typ	40 Typ	1
	Soft Anneal	O60	58 Typ	27 Typ	45 Typ				60 Typ	40 Typ	0.24
Flat Products, Rod & Bar	1/4 Hard	H01	69 Typ		27 Typ				50 Typ	43 Typ	1	8
	1/4 Hard	H01	67 Typ	40 Typ	35 Typ				50 Typ	43 Typ	2	8
	1/4 Hard	H01	70 Typ	48 Typ	25 Typ				50 Typ	43 Typ	0.24	10
	1/4 Hard	H01	70 Typ	58 Typ	17 Typ					43 Typ	0.04
	Light Anneal	O50	62 Typ	30 Typ	40 Typ					41 Typ	0.04
	Light Anneal	O50	63 Typ	30 Typ	40 Typ				55 Typ	42 Typ	0.24
	Light Anneal	O50	60 Typ	28 Typ	45 Typ					41 Typ	0.24
	Light Anneal	O50	62 Typ	28 Typ	43 Typ				55 Typ	42 Typ	2
	Light Anneal	O50	63 Typ	30 Typ	40 Typ				55 Typ	42 Typ	1
Rod	1/2 Hard	H02	75 Typ		20 Typ	82 Typ		44 Typ			1	20
	1/2 Hard	H02	80 Typ	57 Typ	20 Typ	85 Typ		45 Typ			0.25	20
	1/4 Hard	H01	70 Typ	48 Typ	25 Typ	80 Typ		43 Typ			0.25	10
	1/4 Hard	H01	69 Typ	46 Typ	27 Typ	78 Typ		43 Typ			1	8
	1/4 Hard	H01	67 Typ	40 Typ	35 Typ	75 Typ		43 Typ			2	8
	Light Anneal	O50	63 Typ	30 Typ	40 Typ	60 Typ		42 Typ			1
	Light Anneal	O50	62 Typ	28 Typ	43 Typ	60 Typ		42 Typ			2
	Light Anneal	O50	63 Typ	30 Typ	40 Typ	60 Typ		42 Typ			0.25
	Soft Anneal	O60	58 Typ	27 Typ	45 Typ	56 Typ		40 Typ			0.25
	Soft Anneal	O60	56 Typ	25 Typ	47 Typ	55 Typ		40 Typ			2
	Soft Anneal	O60	57 Typ	25 Typ	47 Typ	55 Typ		40 Typ			1
Rod & Bar	1/2 Hard	H02	75 Typ		20 Typ				45 Typ	44 Typ	1	20
Rod & Bar	1/2 Hard	H02	80 Typ	57 Typ	20 Typ				45 Typ	45 Typ	0.24	20
Tube	Hard Drawn	H80	88 Typ		18 Typ	95 Typ						35

Material Grades of Tubesheet

Type of materials	Technical requirements according to
Duplex Stainless Steel	ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel	ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347
Carbon Steel	ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2
Alloy Steel	ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3
Titanium	ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16
Copper Nickel	ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30)
Brass, Al-brass	ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200
Nickel Alloys	ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625
Alloy 20	ASTM/ASME SB472 UNS 8020
Hastelloy	ASTM/ASME SB564, UNS10276 ( C 276 )
Claded materials	ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1.
Claded materials	Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc.

Application
1. Heat Exchangers
2. Boilers
3. Condensers
4. Reactors
5. Oil and Gas Industry
6. Air Conditioning and Refrigeration
7. Pressure Vessels
