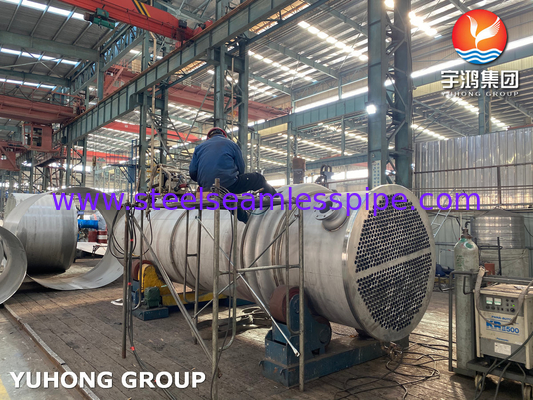

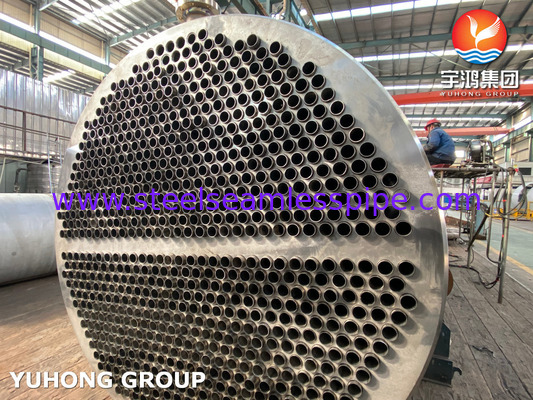

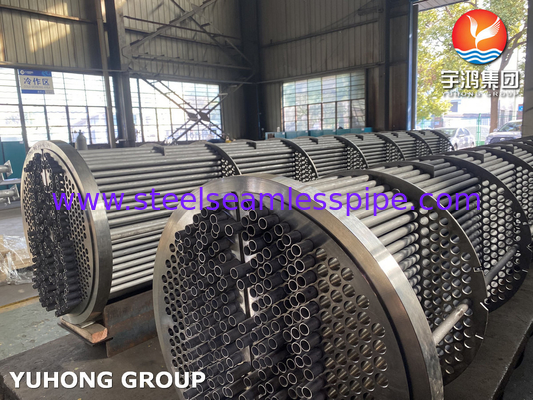

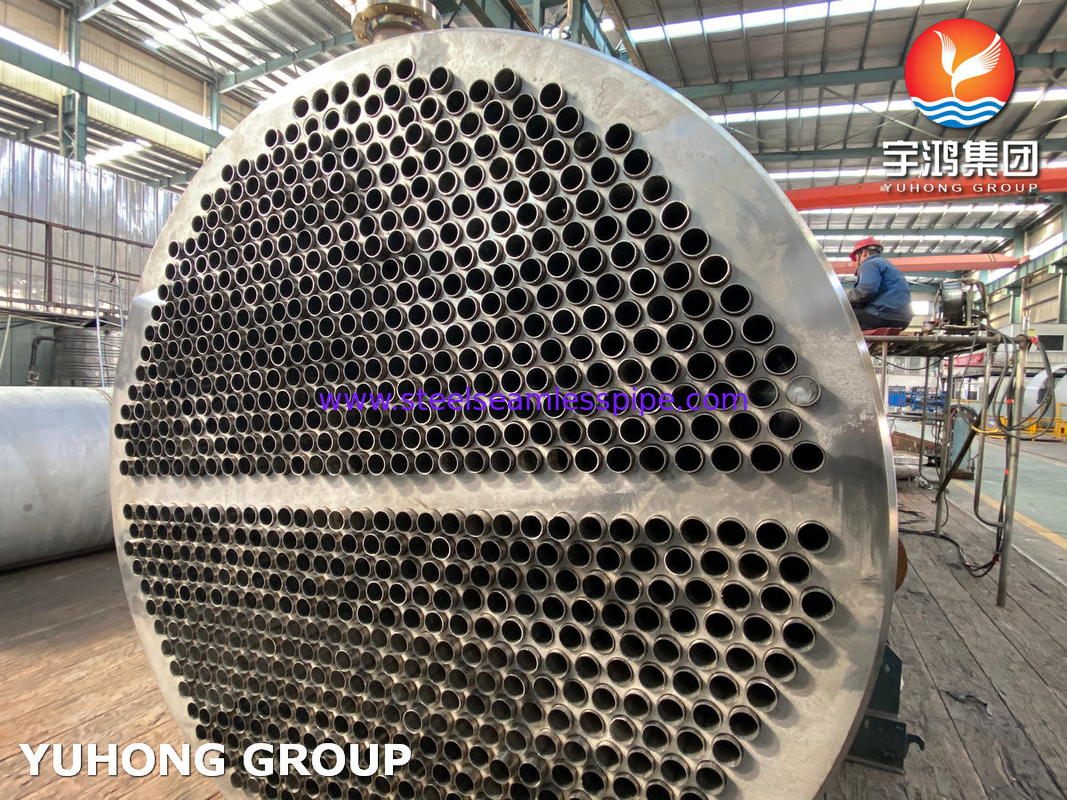

Stainless Steel Tube Bundle For Regenerator Reboiler Oil Cooler

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Tube Bundle , Heat Exchanger , Condenser, Reboiler , Boiler, Air Cooler, Cooling Tower

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Steel Frame, Ply wooden case
Delivery Time:	45-150 days

Contact Now

All Products

Stainless Steel Seamless Pipe (285)

Stainless Steel Seamless Tube (273)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (98)

Fin Tube (608)

Heat Exchanger (15)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (115)

Heat Exchanger Baffle (36)

Air Cooler (7)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (219)

Alloy Steel Tube (177)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (791)

Steel Flange (577)

Others (386)

Cladding Parts (5)

Detailed Product Description

MATERIAL:

Carbon Steel, Stainless Steel, Alloy Steel, Copper Alloy

STANDARD:

ASTM,ASME

Application:

Tubular Heat Exchanger, Chemical Production ,Petroleum Industry, Energy Power, Pharmaceutical

Name:

Heat Exchanger Tube Bundle

Highlight:

Oil Cooler Tube Bundle

Stainless Steel Tube Bundle

Regenerator Reboiler Tube Bundle

Stainless Steel Tube Bundle for Regenerator Reboiler,Oil Cooler

Tube bundles go inside the shell of a heat exchanger. This is the part that fails the most often as the tubes can be vulnerable to corrosion and failure. The average tube bundle uses water that is heated by steam or other fluids in the shell.

A majority the time we can duplicate your tube bundle based of the model number alone. in the rare case, we may need some pictures and dimensions of this bundle to determine how many passes it has and the nominal width and length. We recommend using one of our blank drawings in the field for recording exact measurements,Knowing the steam and water pressure as well as the consistency of the fluids is very important when buying a replacement bundle. This determines the type of materials that should be used.

Design and fabrication capabilities for tube bundles include:

U-tube or straight tube (fixed tubesheet or floating tubesheet)

Enhanced tube, low-fin, lo-fin, integral tube bundles (U-tube or straight tube)

Tank heater tube bundles

Fuel oil heater tube bundles

Double wall vented tube bundles

Standard and specialty alloys

Heads and bonnets

Tank collars and nozzles

Common use material for Tube Bundle Heat Exchanger

There are two different of tube bundles: Straight tubes and U tubes. Depending on specific requirement and application, there are following tube material options:

Carbon Steel Tubes: ASTM A179/ASME SA179/179M, ASTM A192, ASTM A333, ASTM A334
Alloy Steel Tubes: ASTM A213 T5, T9, T11, T22, T91

Stainless Steel Tubes: ASTM A213 TP304, TP304L, TP316L, TP321, etc.

Nickel Alloy Tubes: ASTM B163 UNS N02200, N04400, N06600, N06601, NO8800, N08825, etc
Copper Tubes: ASTM B111 C70600, C68700, C71500, C44300, etc.

Tank Shell Materia Options:

ASTM A516 GR70
ASTM A572 GR50
ASTM A537 CL1

Straight Tube Bundle vs. U Tube Bundle

Both types of tube bundles have their own advantages and applications depending on factors like maintenance requirements, cost considerations, and operating conditions. The choice between straight tube and U tube bundles often depends on specific needs and priorities of the heat exchanger system.

Applications

Tube bundles are used in a wide range of applications where heat transfer is required. Some common applications include:
