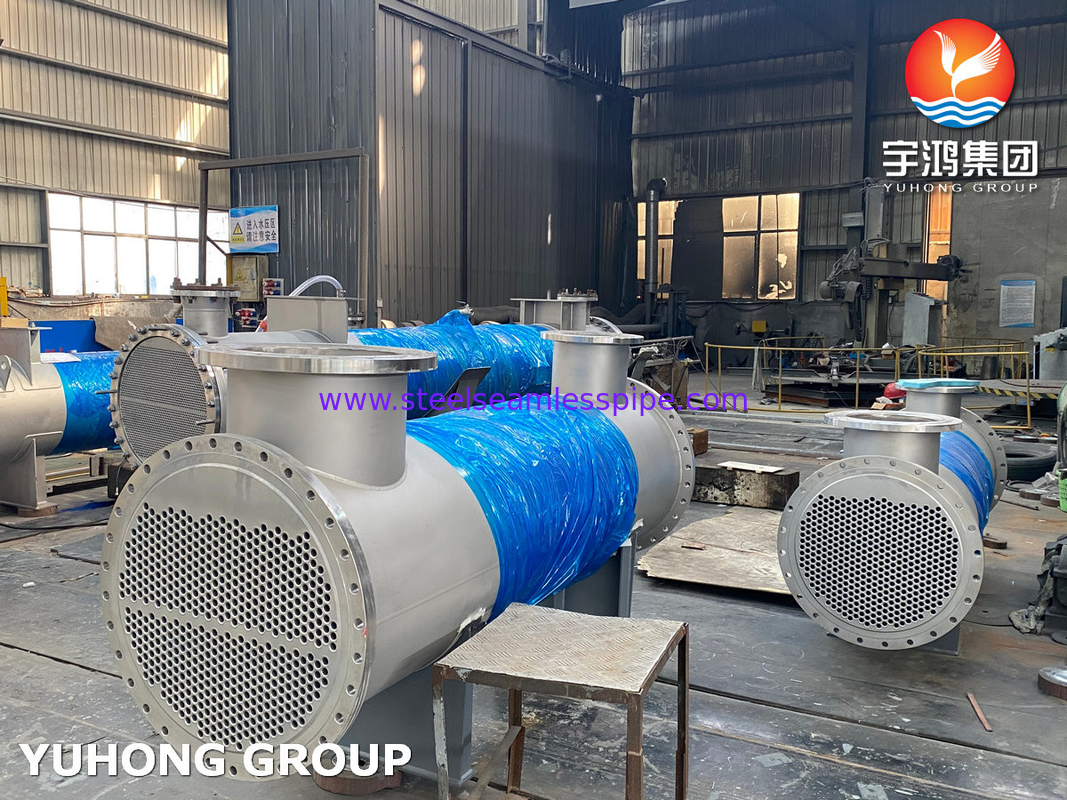

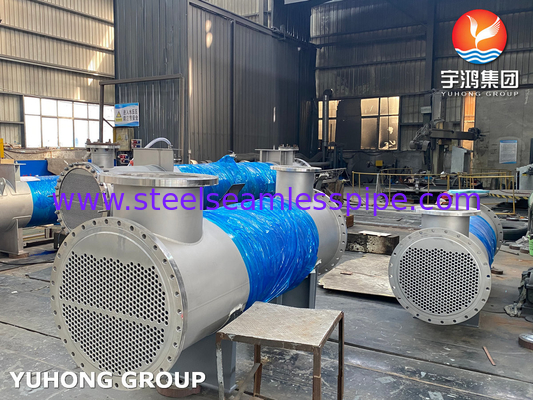

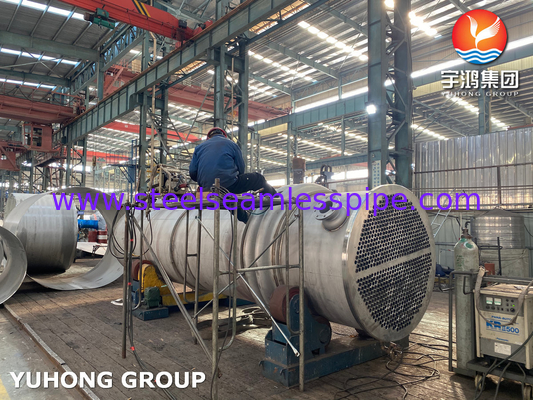

Tube Bundle Heat Exchanger Condenser

   Tube bundles for heat exchanger equipment can be constructed for liquid-to-liquid or steam-to-liquid applications. The bundles can be used for applications including industrial processes and commercial water heating or cooling.

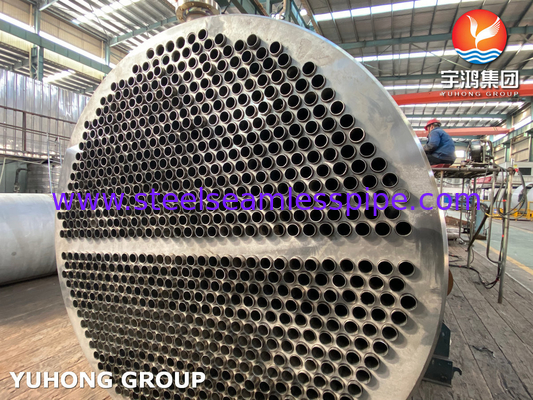

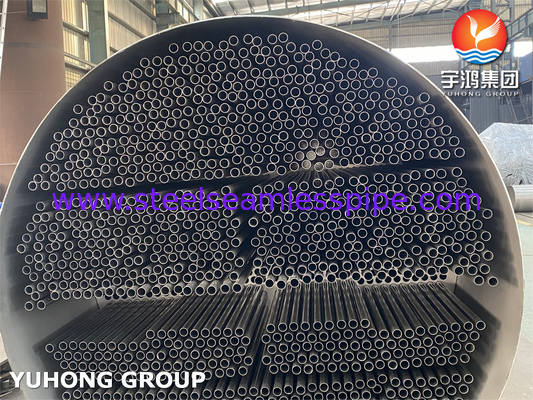

    Tube bundle heat exchanger is a typical heat exchanging device that make two liquid with different temperatures to exchange heat. Through the heat exchanger tank, one fluid can be cooled down and the other fluid can be heated to meet the required temperature. Tube bundle collected many groups of pipe densly packed as a radiation core, outside installed with a tubular tank shell making from the pressure vessle steel plate, when hot liquid or gases are circulated in the tube bundle, the large combined surface area of the tubes will bring efficient heat exchanging performances to transfer heat into the tank shell water and cooling the fluids in the tubes.

    There are two different of tube bundles: Straight tubes and U tubes. Depending on specific requirement and application, there are following tube material options:

    Carbon Steel Tube : ASTM A179/ASME SA179/179M, ASTM A192

    Alloy Steel Tubes: ASTM A213 T5, T9, T11, T22, T91

    Copper Tubes: ASTM B111 C44300, C70600, C71500

    Applications:

    Chemical Production


    Petroleum Industry


    Energy Power


    Pharmaceutical

    Straight Tube bundle VS U Tube Bundle

    Stright tube bundle: The first and previously common use tube bundle is configured with straight tube. As the layout both ends in open status, the hot liquid is pumped through the bundle in a straight line from one end of the tank shell to another end of tank shell. This type is efficient, but it requires more effort to open the tank shall to remove the bundle to do cleanning or maintainace. Straight tube bundle has a lower installation cost than U tube bundle.

    U Tube Bundle: The recommend and new common use tube bundle is the U tube layout. This bundle impressive features is entry and exit points on the same side of the shell on a tube shell cap divided into two sealed chambers. The tubes manufactured in U shape, which it leaves the entry chamber and travel to the opposite end of the shell and return in the opposite direction to the exit chamber. This type of layout is easier to disassemble for maintenance with the bundle typically being slid out as a modular unit. U type tube bundle also suited good with high temperature differences, relieve most thermal expansion and reduce contraction stresses in the bundle.
