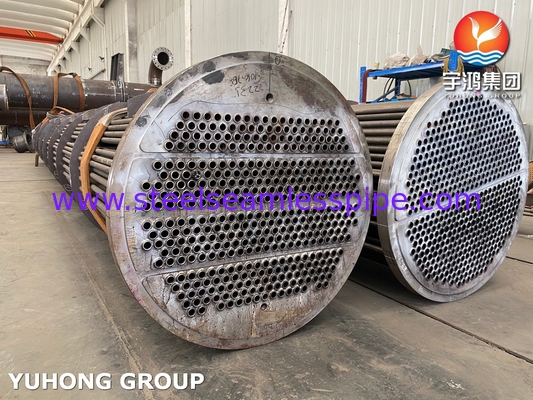

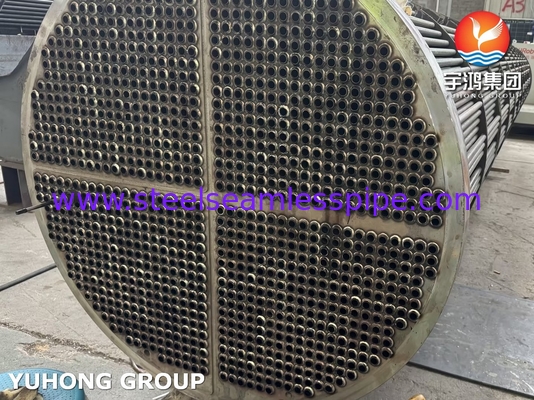

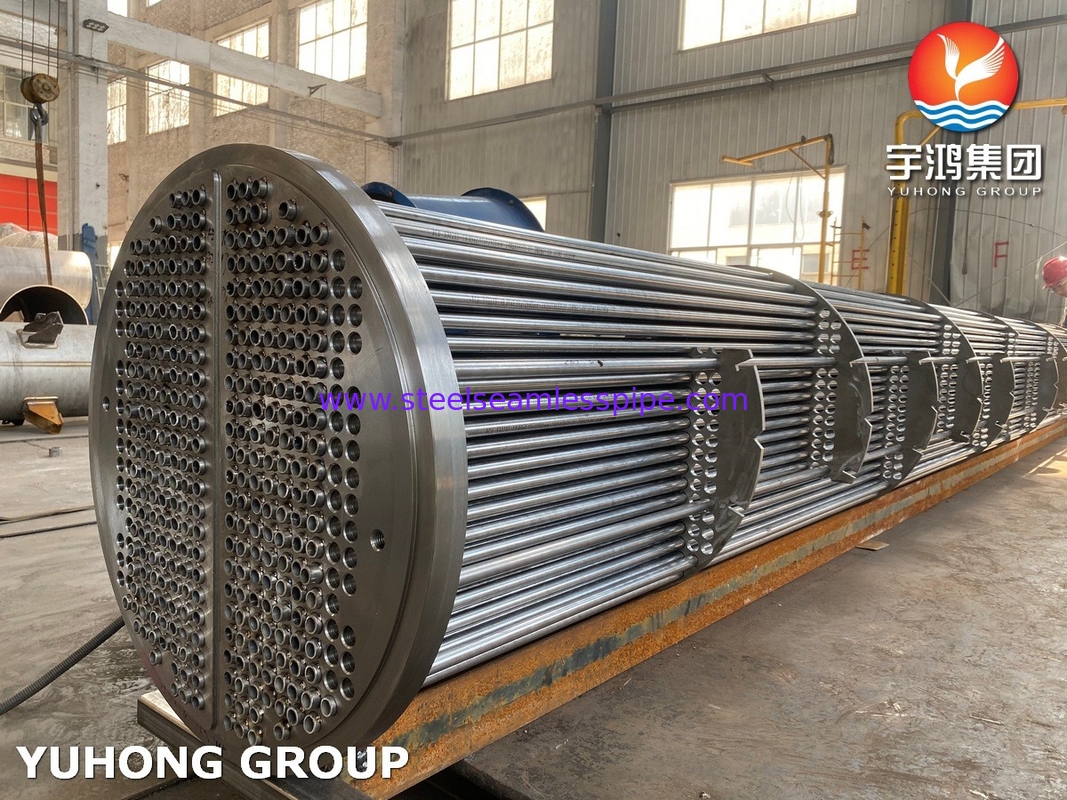

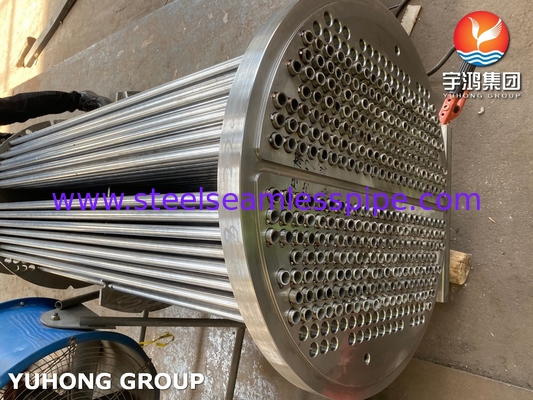

ASME U Stamp Customized Tube Bundle Steel Heat Exchanger Seamless Tube

ASME U Stamp Customized Tube Bundle Steel Heat Exchanger Seamless Tube

ASME U Stamp Customized Tube Bundle Steel Heat Exchanger Seamless Tube
video
ASME U Stamp Customized Tube Bundle Steel Heat Exchanger Seamless Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ASME, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Model Number: Heat Exchanger Tube Bundle
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Ply wooden case / Pallet
Payment Terms: L/C,T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (278)
Stainless Steel Seamless Tube (267)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (91)
Fin Tube (605)
Heat Exchanger (10)
Heat Exchanger Tube (421)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (75)
Copper Alloy Tube (211)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (787)
Steel Flange (576)
Others (384)
Detailed Product Description
Product Name: Tube Bundle Standard: ASTM, ASME
Material: Carbon Steel, Stainless Steel, Alloy Steel, Copper Alloy Size: Can Custom As Buyer's Drawing Requirements
Certifies: ASME U Stamp Application: Tubular Heat Exchanger, Chemical Production ,Petroleum Industry, Energy Power, Pharmaceutical
Highlight:

Steel Heat Exchanger Tube Bundle

,

Customized Tube Bundle

,

ASME U Stamp Tube Bundle

Stainless Steel Carbon Steel Seamless Tube Heat Exchanger Tube Bundle





Tube Bundle is composed of multiple tubes arranged in a specific configuration. The arrangement can be straight or bent (like U-tube) to optimize heat transfer while accommodating thermal expansion. They are commonly made from materials such as stainless steel, copper, or special alloys, chosen for their thermal conductivity and resistance to corrosion and high pressures.

Tube bundles play a vital role in enhancing thermal efficiency in various applications across numerous industries. Their unique design features and adaptability make them indispensable in modern engineering. By understanding their components, mechanisms, and maintenance requirements, industries can optimize performance and ensure sustainability in their operations.





Tube Bundles

  • U-Tube, or Straight Tube (Fixed Tubesheet or Floating Tubesheet)
  • Enhanced Tube, Low-Fin, Lo-Fin, Intergral Tube Bundles (U-Tube or Straight Tube)
  • Tank Heater Tube Bundles
  • Fuel Oil Heater Tube Bundles
  • Double Wall Vented Tube Bundles
  • Standard & Specialty Alloys
  • Heads & Bonnets
  • Tank Collars & Nozzles





Common use material for Tube Bundle Heat Exchanger

  • Carbon Steel: ASTM A179/ASME SA179/179M, ASTM A192, ASTM A333, ASTM A334
  • Alloy Steel: ASTM A213 T5, T9, T11, T22, T91
  • Stainless Steel: ASTM A213 TP304, TP304L, TP316L, TP321, etc.
  • Nickel Alloy: ASTM B163 UNS N02200, N04400, N06600, N06601, NO8800, N08825, etc
  • Copper Alloy: ASTM B111 C70600, C68700, C71500, C44300, etc.





Advantages of Tube Bundles

  1. High Thermal Efficiency:

    They provide effective heat transfer, leading to energy savings and improved operational efficiency.

  2. Compact Design:

    More space-efficient compared to other types of heat exchangers, making them suitable for constrained environments.

  3. Easy Maintenance:

    Certain designs (like U-tube bundles) facilitate easier maintenance, allowing for cleaning and inspection without complete disassembly.

  4. Customizable:

    Can be designed for a wide variety of applications, pressures, and temperatures, enhancing their applicability across industries.





Types of Heat Exchangers

  1. Shell and Tube Heat Exchanger:

    Comprising a series of tubes (the tube bundle) housed within a larger shell, this is one of the most common types used in industrial applications.

  2. Plate Heat Exchanger:

    Instead of tubes, these use thin plates to separate the fluids, offering a high heat transfer area in a compact design.

  3. Air-Cooled Heat Exchanger:

    Here, air is used to cool the fluid passing through the tubes, often used in places where water is scarce.





Applications

Tube bundles are used in a wide range of applications where heat transfer is required. Some common applications include:

  • HVAC systems
  • Chemical processing
  • Oil and gas refining
  • Power generation
  • Food and beverage processing
  • Pharmaceutical manufacturing
  • Heat Exchanger





ASME U Stamp Customized Tube Bundle Steel Heat Exchanger Seamless Tube 0
