Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet

Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet

Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet
video
Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet
Product Details:
Place of Origin: China,Korea
Brand Name: YUHONG
Certification: ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number: E05C, ASME SA179 Carbon Steel Seamless Tube with ASME SA266 Gr.2N Tubesheet
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 2000 ~ 10M usd
Packaging Details: Pallet
Delivery Time: 45---150 DAYS
Payment Terms: L/C, T/T
Supply Ability: 50SETS/MONTHS
Contact Now
Detailed Product Description
Certificate: ASME U STAMP Tube: ASME SA179 Carbon Steel Seamless Tube
Tubesheet: ASME SA266 GR.2 N Spacer: ASME SA179 Carbon Steel Seamless Tube
BAFFLES: ASME SA56 GR.70 IMPINGEMENT PLATE: ASME SA56 GR.70
NOMINAL CAPACIT: SHELL SIDE (---) / TUBE SIDE (2127 LITERS) Weight: 7700kgs
Highlight:

ASME U STAMP Tube Bundle

,

D-E05C Tube Bundle

,

ASME SA179 Carbon Steel Seamless Tube

Tube Bundle, ASME U STAMP, D-E05C, ASME SA179 Carbon Steel Seamless Tube with ASME SA266 Gr.2N Tubesheet

Yuhong Holding Group deal with tube bundle, heat exchanger, Air cooler,  Cooling Tower, Pressure Vessel, Tank, boiler, Per-Heater, Furnace more than 35 years , till now export more than 85 countries, the products material contain:  Stainless Stee,  Duplex Steel , Super Duplex Steel , Nickel Base Alloy Steel , Titanium ,  Copper  & Copper Alloy, Carbon Steel , Chromium Molybdenum, ...

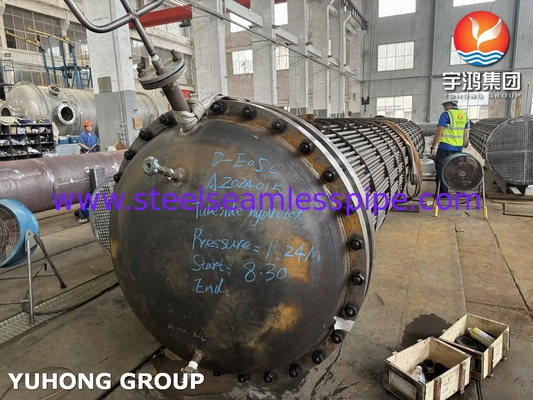

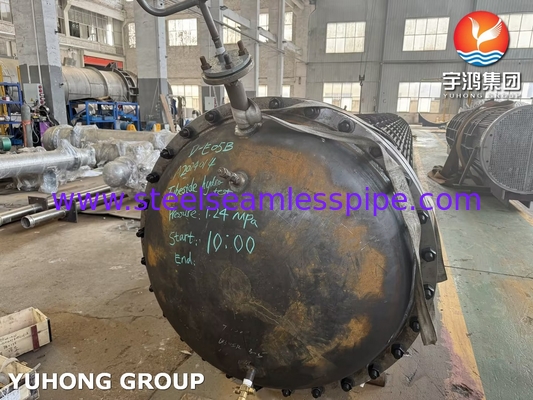

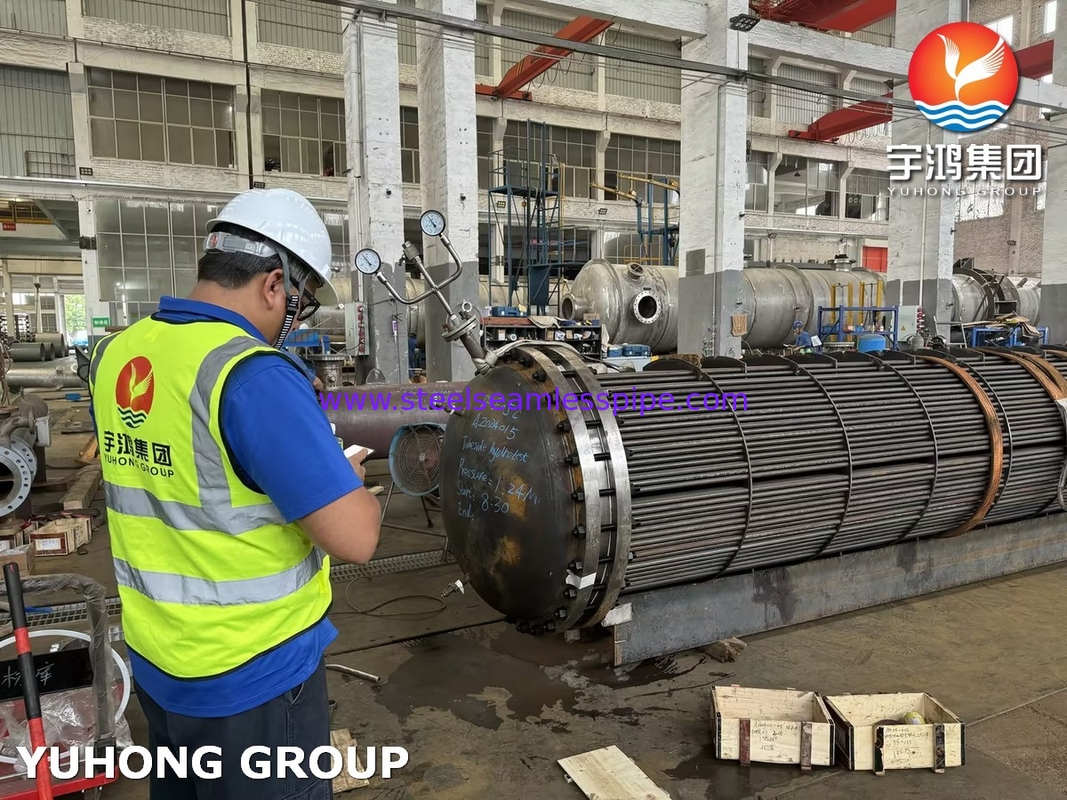

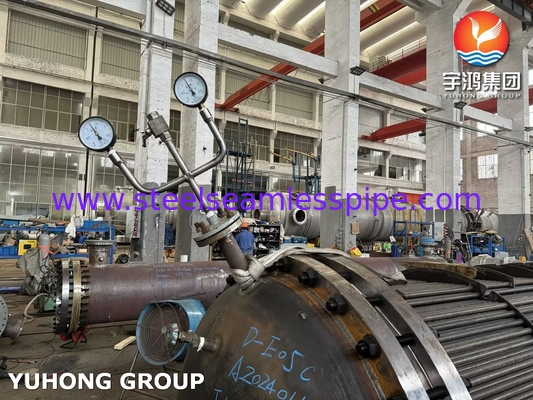

The Tube bundle finished assembling , we will arrange tube side pressure test according to design pressure, and witness by buyer/ TPT/ASME INSPECTOR (A.I.).



All of our equipments can accept ASME inspection , and final aslo can support ASME U STAMP.





ITEM DESPRITION Standard And Grade SIZES (MM) QTY UNIT
1 SMLS TUBE U TYPE ASME SA179 O.D.19.05 X 2.11(Min.) X L 582 PCS
2 TUBESHEET SA-266 CL.2 DISC 1130 mm [44 1/2"] FINISH DIA. 1 PCS
3 TUBESHEET / / / PCS
4 TIE ROD & 2 NUTS AISI 1018 Ø12.7 (M12)X 6627MM 10 SETS
5 SPACER SA-106 Gr. B PIPE NPS 1/2" SCH 40 SMLS 128 PCS
6 BAFFLE SA-516 Gr. 70
7 IMPINGEMENT PLATE SA-516 Gr. 70
8 DEFLECTOR STRIPS SA-516 Gr. 70
9 SKID BARS SA-516 Gr. 70



Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet 0



Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet 1

Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet 2

Tube Bundle ASME U STAMP D-E05C ASME SA179 Carbon Steel Seamless Tube With ASME SA266 Gr.2N Tubesheet 3
