Heat Exchanger Tube Bundle D-E1 A ASME SA213 T11 U Bend Tube With ASME SA-516 GR.70 (N, FGP) Tubesheet ASME U STAMP

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	U Bend Tube Bunde ASME SA213 T11

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	2000 ~ 10M usd
Packaging Details:	Pallet
Delivery Time:	45---150 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	50SETS/MONTHS

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Heat Exchanger Tube:	ASME SA213 T11 U Bend Tube	Heat Exchanger Head:	ASME SA516 GR.70N
Tubesheet:	ASME SA-516 GR.70 (N, FGP)	Baffle:	ASME SA-516 GR.70
Spacers:	ASME SA-213 T11 SMLS TUBE	Certificate:	ASME U Certificate & Stamp
IMPINGEMENT PLATE:	ASME SA-516 GR.70	Weight:	22700kgs
Highlight:	Heat Exchanger Tube Bundle , ASME SA213 T11 U Bend Tube , ASME SA213 Heat Exchanger Tube Bundle

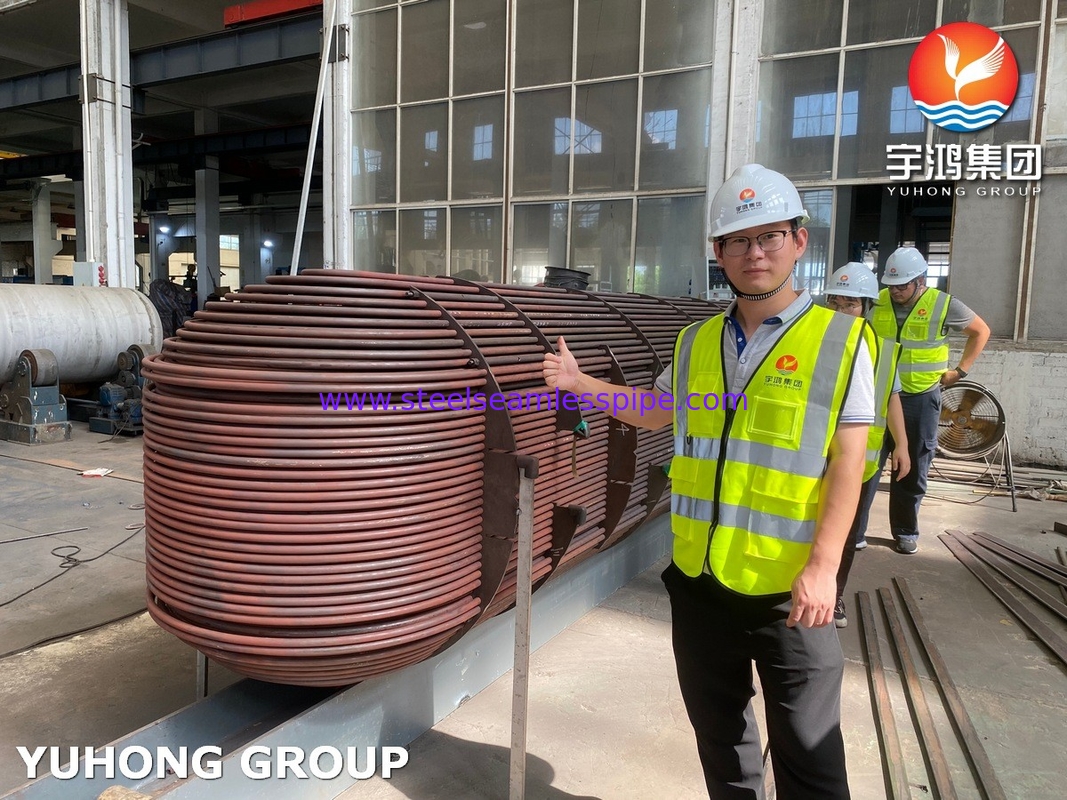

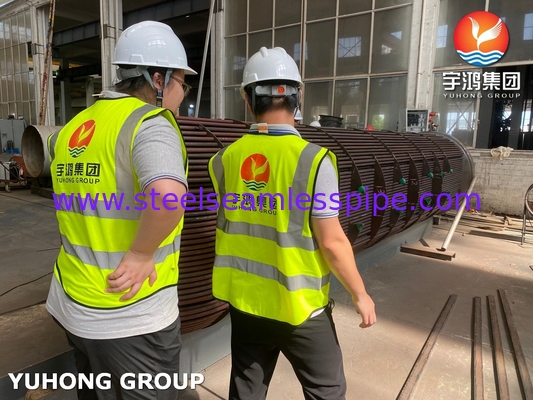

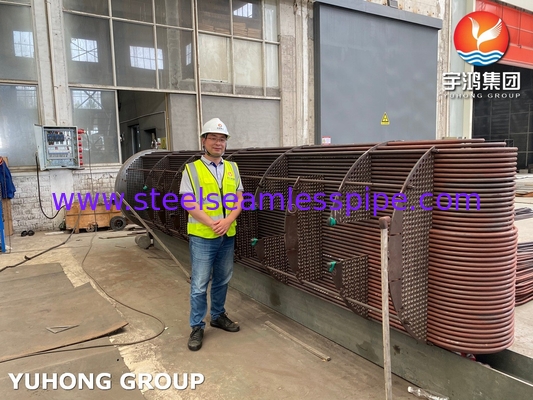

Heat Exchanger Tube Bundle, D-E1 A, ASME SA213 T11 U Bend Tube with ASME SA-516 GR.70 (N, FGP) Tubesheet, ASME U STAMP

Yuhong Holding Group deal with tube bundle, heat exchanger, Air cooler, Cooling Tower, Pressure Vessel, Tank, boiler, Per-Heater, Furnace more than 35 years , till now export more than 85 countries, the products material contain: Stainless Stee, Duplex Steel , Super Duplex Steel , Nickel Base Alloy Steel , Titanium , Copper & Copper Alloy, Carbon Steel , Chromium Molybdenum, ...

The Tube bundle finished assembling , we will arrange tube side pressure test according to design pressure, and witness by buyer/ TPT/ASME INSPECTOR (A.I.).

All of our equipments can accept ASME inspection , and final aslo can support ASME U STAMP.

ITEM	DESPRITION	Standard And Grade	SIZES (MM)	QTY	UNIT

1	SMLS TUBE U TYPE	ASME SA213 T11	O.D.19.05 X 2.11(Min.) X L	755	PCS
2	TUBESHEET	SA-516 Gr. 70 *(N,FGP)	DISC 1280 mm FINISH DIA.	1	PC
3	TUBESHEET	/	/	/	PCS
4	TIE ROD & 2 NUTS	AISI 1018	1/2" X 5020MM	8	SETS
5	SPACER	SA-213 GR. T11 SMLS	19.05 X 2.11 X L MM	62	PCS
6	BAFFLE	SA-516 Gr. 70	1211 mm X 4974 mm X 10MM	10	PCS
7	IMPINGEMENT PLATE	SA-516 Gr. 70	380 mm X 556 mm	1	PC
8	SUPPORT PLATE	SA-516 Gr. 70	DISC 1216 mm FINISH OD	1	PC
9	TIE RODS	Carbon Steel	1/2" UNC	16	PCS
