Stainless Steel ASTM A276 SS316 Round Bar With Corrosion Resistance

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A276 SS316L

Payment & Shipping Terms:

Minimum Order Quantity:	1000KGS
Price:	Negotiable
Packaging Details:	PLYWOOD CASE
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Specification:	ASTM A276	Grade:	SS316
Shape:	Round	Length:	Can Customize
Surface:	Bright	Application:	Oil And Gas Industries, Food Processing Industries, Equipments, Etc
Highlight:	ASTM A276 Round Bar , SS316 Round Bar , Corrosion Resistance Round Bar

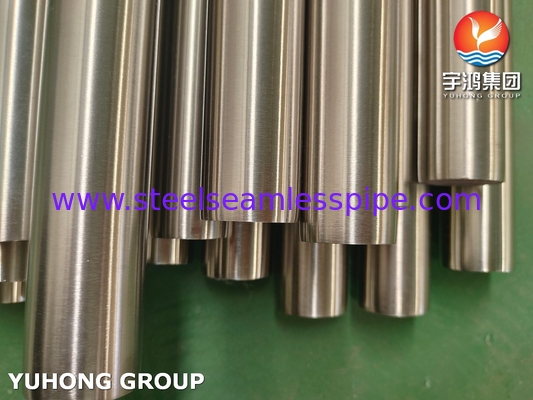

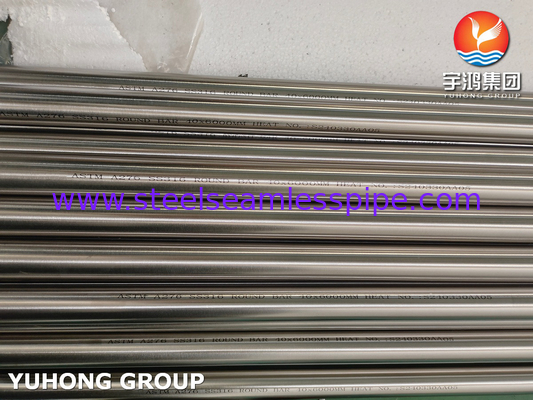

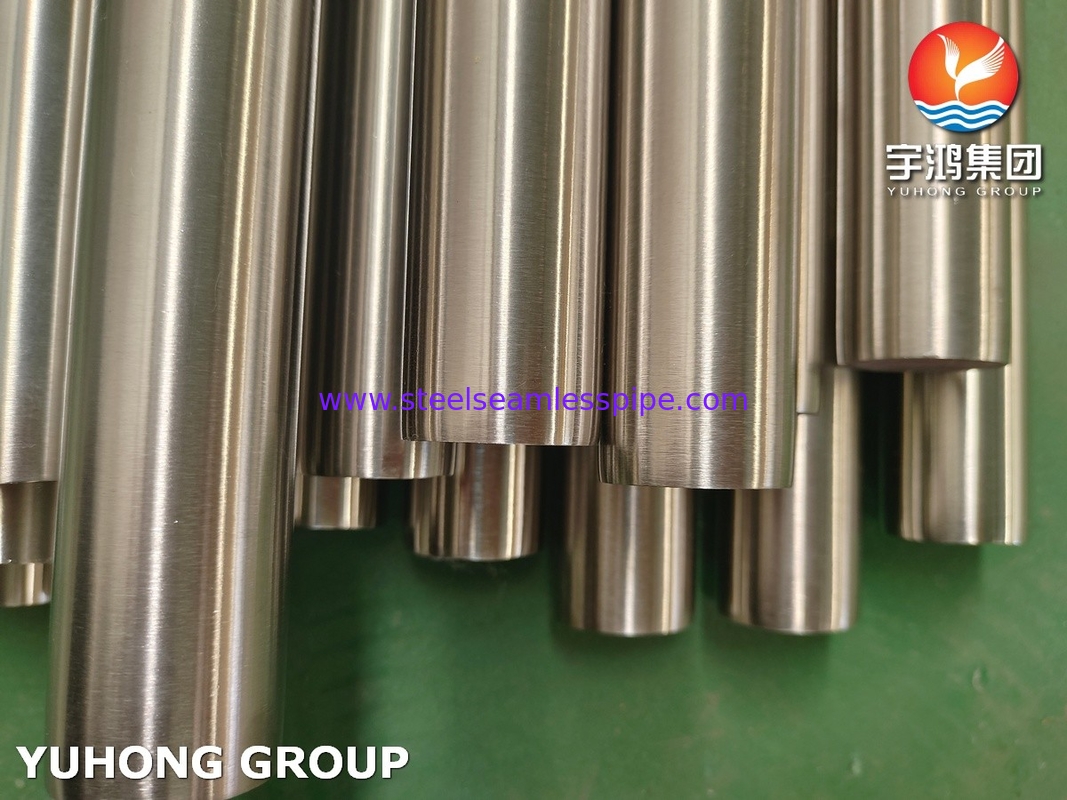

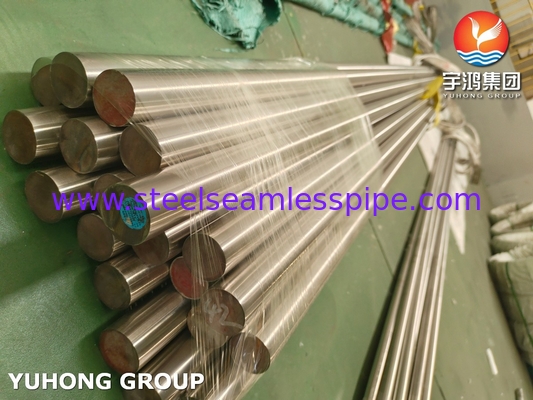

Stainless Steel ASTM A276 SS316 Round Bar With Corrosion Resistance

What is ASTM A276?

This specification covers hot-finished or cold-finished bars except bars for reforging. It includes rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels.

Size range and material availble

Range	3.17 MM TO 350 MM DIA
Stainless Steel	ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446 ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444.
Duplex Steel	ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760. Carbon Steel. ASTM / ASME A 105.
Nickel Alloy	ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 ), ASTM / ASME SB 164 UNS 4400 (MONEL 400 ), ASTM / ASME SB 425 UNS 8825 (INCONEL 825), ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 ), ASTM / ASME SB 446UNS 6625 (INCONEL 625), ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 ) ,ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Alloy Steel	ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91. ASTM / ASME A 729 GR B 11 & B 22.

316 is an austenitic chromium-nickel steel that has better corrosion resistance than other chromium-nickel steels. 316 stainless steel round parts are widely used in applications exposed to chemical corrosives and marine atmospheres.

Stainless Steel Bar Specifications

ASTM A276	This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels.
ASTM A479	This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels.
ASTM A484	This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions.
ASTM A582	This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels.
ASTM B473	This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition.

Stainless Steel 316 Equivalent Grades

Grade		316
UNS No		S31600
Old British	BS	304S11
	En	58E
Euronorm	No	1.4401
	Name	X5CrNiMo17-12-2
Swedish SS		2347
Japanese JIS		SUS 316

A276 316 Round Bar Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 100°C	At 500°C
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

A276 316 Round Bar Mechanical Properties

Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness
Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217
316L	485	170	40	95	217

Stainless Steel ASTM A276 SS316 Round Bar With Corrosion Resistance 0

Manufacture

Condition:

Bars shall be furnished in one of the following conditions listed in the Mechanical Requirements table:

Condition A—Annealed.
Condition H—Hardened and tempered at a relatively low temperature.
Condition T—Hardened and tempered at a relatively high temperature.
Condition S— Strain Hardened—Relatively light cold work.
Condition B—Relatively severe cold work.

Condition SA—Stabilized annealed.

Applications:
