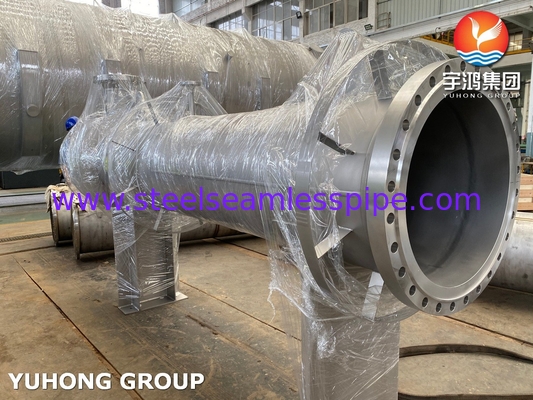

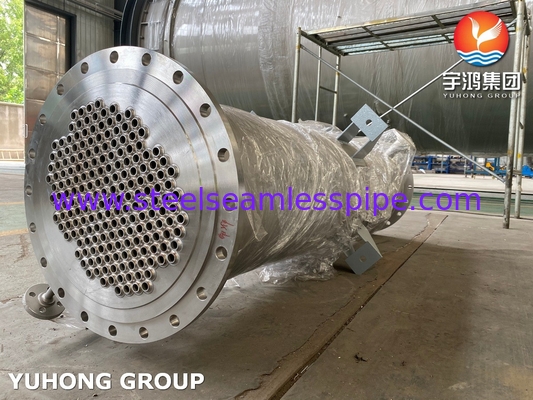

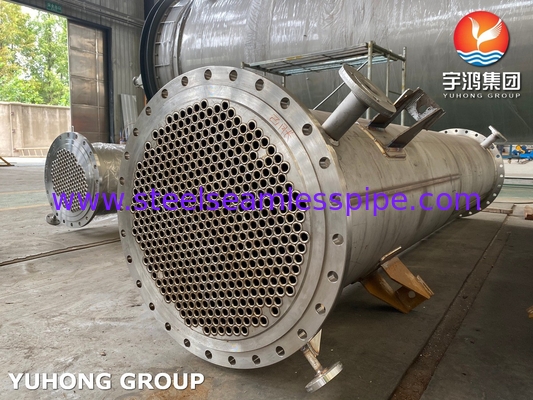

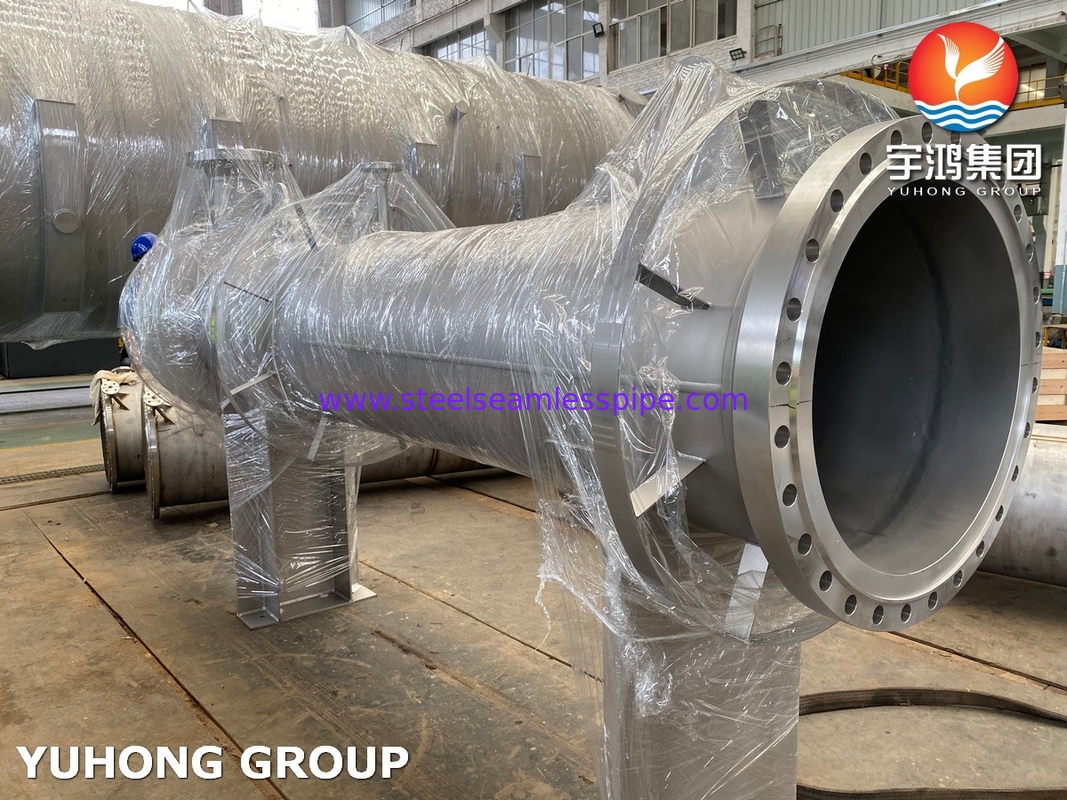

ASME U Stamp Customized Heat Exchanger Steel Tube Bundle For Oil Refining

Customized Oil-Cooled Heat Exchanger Stainless Steel Tube Bundle

Common use material for Tube Bundle Heat Exchanger

Flow Arrangement

1. Counterflow:

Fluids move in opposite directions, maximizing heat transfer.Parallel flow: Fluids move in the same direction, usually less efficient than counterflow.

2. Crossflow:

One fluid flows perpendicular to another, an option for compact designs.

Regulations and Standards

Must adhere to applicable engineering standards, which can vary by industry (e.g., ASME, TEMA standards).

Operational Considerations

• Design Pressure and Temperature: Must be selected based on the application and operating conditions.

• Maintenance: Regular cleaning and inspections are necessary to ensure efficient operation. Fouling can reduce heat transfer efficiency.

• Fluid Properties: The type of oil used (viscosity, thermal conductivity) can significantly affect the heat exchanger's performance.

• Flow Rate: Must be optimized to achieve desired thermal performance without causing excessive pressure drop.

Applications

Tube bundles are used in a wide range of applications where heat transfer is required. Some common applications include:

• HVAC systems
• Chemical processing
• Oil and gas refining
• Power generation
• Food and beverage processing
• Pharmaceutical manufacturing
• Heat Exchanger
