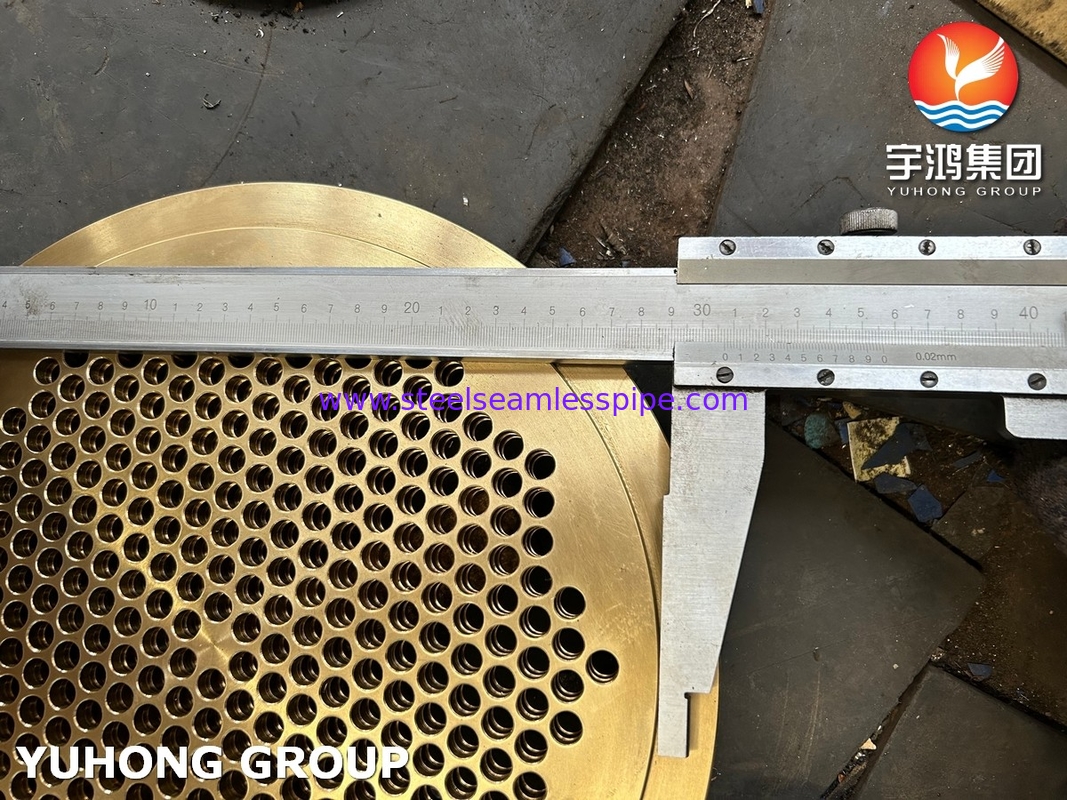

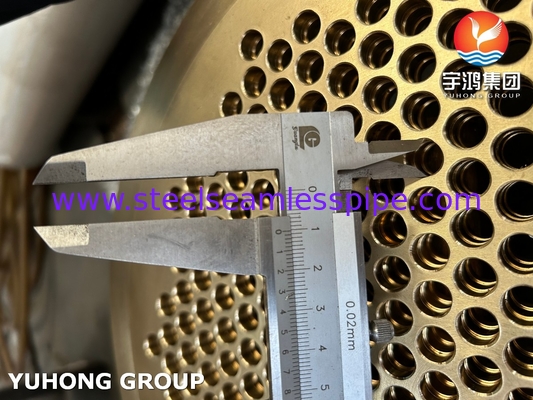

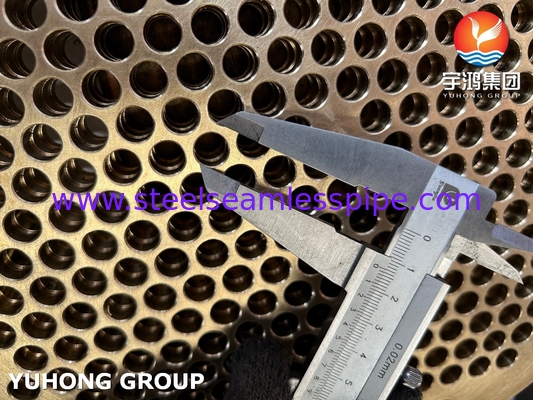

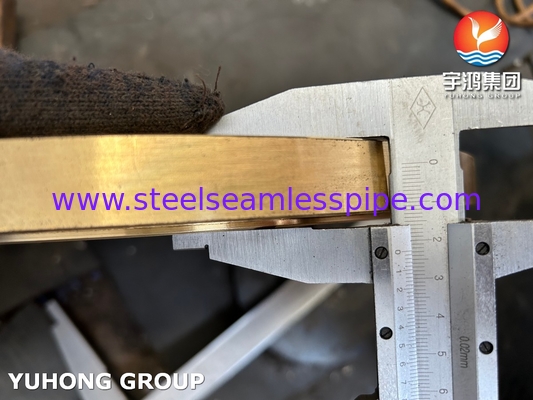

ASTM B171 C46400 Naval Brass Tubesheet For Heat Exchanger And Boiler

ASTM B171 C46400 Naval Brass Tubesheet For Heat Exchanger And Boiler

ASTM B171 Scope:

This specification establishes the requirements for copper-alloy plate, sheet, and circles cut from plate and sheet for pressure vessels, condensers, and heat exchangers. Thefollowing alloys are covered:

Copper Alloy Previously Used Designation

C36500 Leaded Muntz Metal
C44300 Admirality, Arsenical
C44400 Admirality, Antimonial
C44500 Admirality, Phosphorized
C46400 Naval Brass, Uninhibited
C46500 Naval Brass, Arsenical
C61300 Aluminum Bronze
C61400 Aluminum Bronze D
C63000 10 % Aluminum-Nickel Bronze
C63200 9 % Aluminum-Nickel Bronze
C70600 90-10 Copper Nickel
C70620 90-10 Copper Nickel-(modified for welding)
C71500 70-30 Copper Nickel
C71520 70-30 Copper Nickel-(modified for welding)
C72200 . . .

Copper steel tube sheet is a composite material made of copper plate and steel plate by explosion welding, which combines the physical, chemical and mechanical properties of steel plate and copper plate, saving costs for customers. Copper clad steel tube sheet has good conductivity and sufficient ductility, which is easy to form.

Naval Brass C46400 is an alloy consisting mainly of copper and zinc with up to 1% tin. Admiralty Brass 46400 is highly resistant to corrosion in seawater at higher than normal temperatures while also ensuring increased strength and rigidity.

Originally used in marine applications, this naval brass has good corrosion resistance in moderately polluted river water and clean seawater. The alloy is widely used in heat exchange equipment under moderate operating conditions.

It has excellent hot working capabilities and is well suited for hot forging and hot pressing. This Admiralty Brass is also suitable for drawing, forming, bending and upsetting.

Where is the stationary Tubesheet located in the floating head heat exchanger?

The tubesheet at the rear header end of the shell is of slightly smaller diameter than the shell, allowing the bundle to be pulled through the shell. The use of a floating head means that thermal expansion can be allowed for and the tube bundle can be removed for cleaning.

Chemical Composition of C46400

Mechanical Properties

Applications:

-Boilers
-Calorifiers
-Columns
-Dished ends
-Filters
-Heat exchangers
-Pipelines
-Pressure vessels
-Oilfield fabrications
