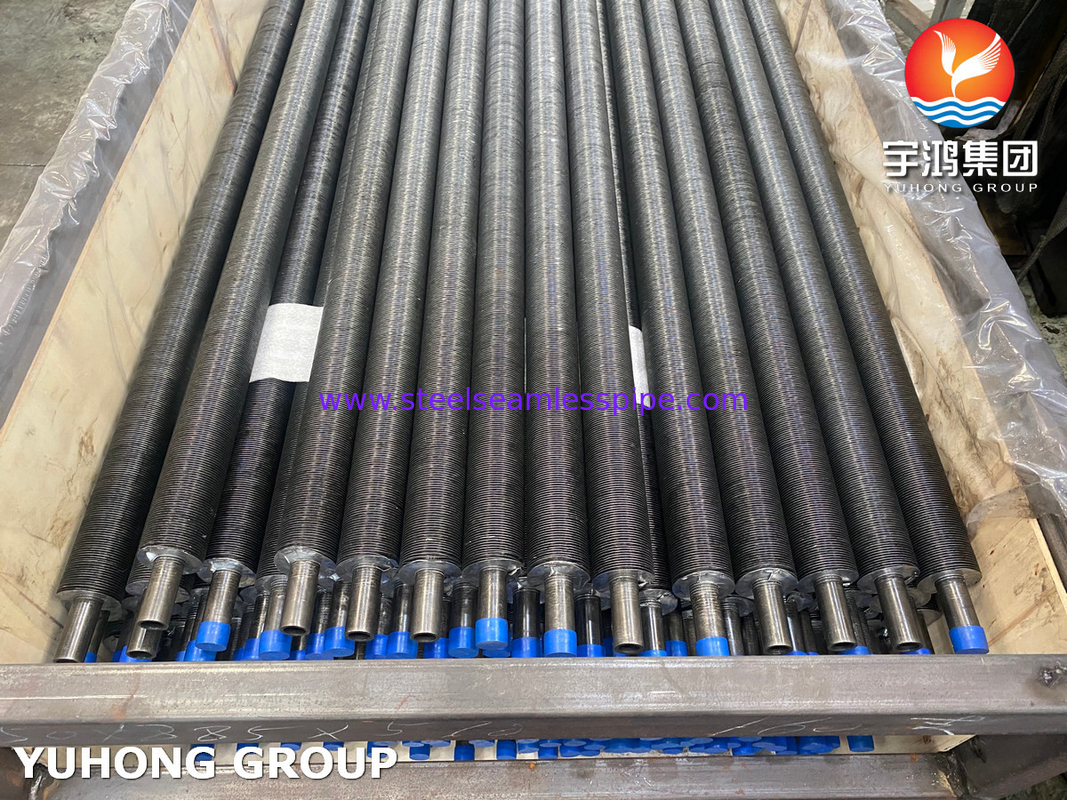

ASTM A210 ASME SA210 GR A1 Carbon Steel Fin Tube With Aluminium Fin

ASTM A210 / ASME SA210 Gr. A1 Carbon Steel Fin Tube with Aluminum Fin (G Type) is a specific type of finned tube used in heat exchangers, boilers, and condensers. It combines the strength and thermal conductivity properties of carbon steel with the corrosion resistance and lightweight nature of aluminum fins. Here’s a breakdown of its features, applications, and advantages:

Key Specifications:

1. Material:

   • ASTM A210 / ASME SA210 Gr. A1: This refers to a seamless carbon steel tube, which is commonly used in high-pressure and high-temperature applications, such as boilers, heat exchangers, and steam systems. This grade has good tensile strength, weldability, and ductility, making it suitable for heat transfer applications.
   • Aluminum Fins: Aluminum is commonly used for finning because it has excellent thermal conductivity and is lightweight. The fins are typically helically wound or attached through mechanical bonding or welding to the carbon steel tube. The aluminum enhances the heat transfer efficiency of the tube.

2. Fin Type (G Type):

   • G Type refers to a specific profile or design of the fins that are attached to the tube. These fins may be extruded, helically wound, or stamped. The "G" designation typically indicates a particular geometry, such as the fin pitch, height, or shape, optimized for particular heat transfer applications. The fin geometry plays a key role in increasing the surface area for efficient heat exchange.

Applications:

1. Heat Exchangers: These finned tubes are widely used in various types of heat exchangers, where heat needs to be transferred efficiently between two fluids (e.g., in power generation, chemical processing, HVAC systems).

2. Boilers: The carbon steel tube with aluminum fins is ideal for use in boiler systems, particularly for economizers, superheaters, and air heaters, where the tube must withstand high temperatures while promoting heat exchange.

3. Condensers: Used in condensers for cooling purposes, where the fin tubes help in improving heat dissipation and efficiency by transferring heat from the vapor phase to the cooling fluid.

4. Air Coolers & Radiators: Aluminum fins improve the overall cooling efficiency in air coolers and radiators used in various industrial and automotive applications.

5. Power Generation: These tubes are also used in power plants for applications where high-efficiency heat transfer is critical, such as in feedwater heaters or steam generators.

Advantages:

1. Improved Heat Transfer Efficiency: The combination of carbon steel tubing and aluminum fins maximizes heat exchange between the fluid inside the tube and the external environment. Aluminum has a high thermal conductivity, which improves overall heat transfer efficiency.

2. Corrosion Resistance: While the carbon steel tube provides structural strength, the aluminum fins offer resistance to corrosion, especially in atmospheres with moderate humidity and corrosive environments.

3. Cost-Effective: Aluminum fins are relatively inexpensive compared to other materials, which can help reduce manufacturing costs while still maintaining good performance in terms of heat transfer and durability.

4. Lightweight: The use of aluminum fins makes the finned tube system lighter compared to finned tubes with other materials, which is beneficial in applications where weight is a critical factor (e.g., in automotive applications or in areas where transportability is important).

5. Durability and Strength: The carbon steel tube provides strength and durability, which is particularly useful in high-pressure or high-temperature applications, ensuring the system’s longevity.

Typical Manufacturing Process:

• Tube Fabrication: The tube is made from seamless carbon steel (ASTM A210 Gr. A1) and is typically manufactured by extrusion or seamless drawing processes.
• Finning: The aluminum fins are either extruded or mechanically bonded to the steel tube. In the "G type" design, the fins might be formed in specific patterns, like helical or spiral winding, to maximize heat dissipation.
