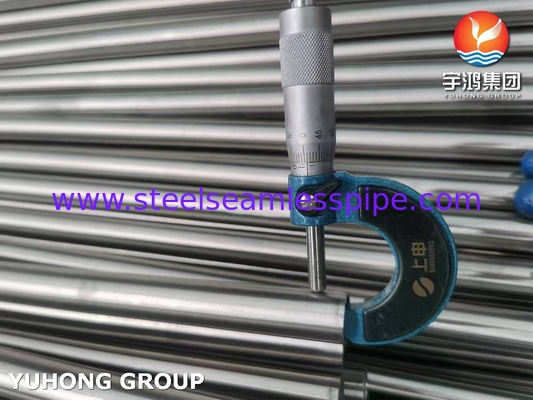

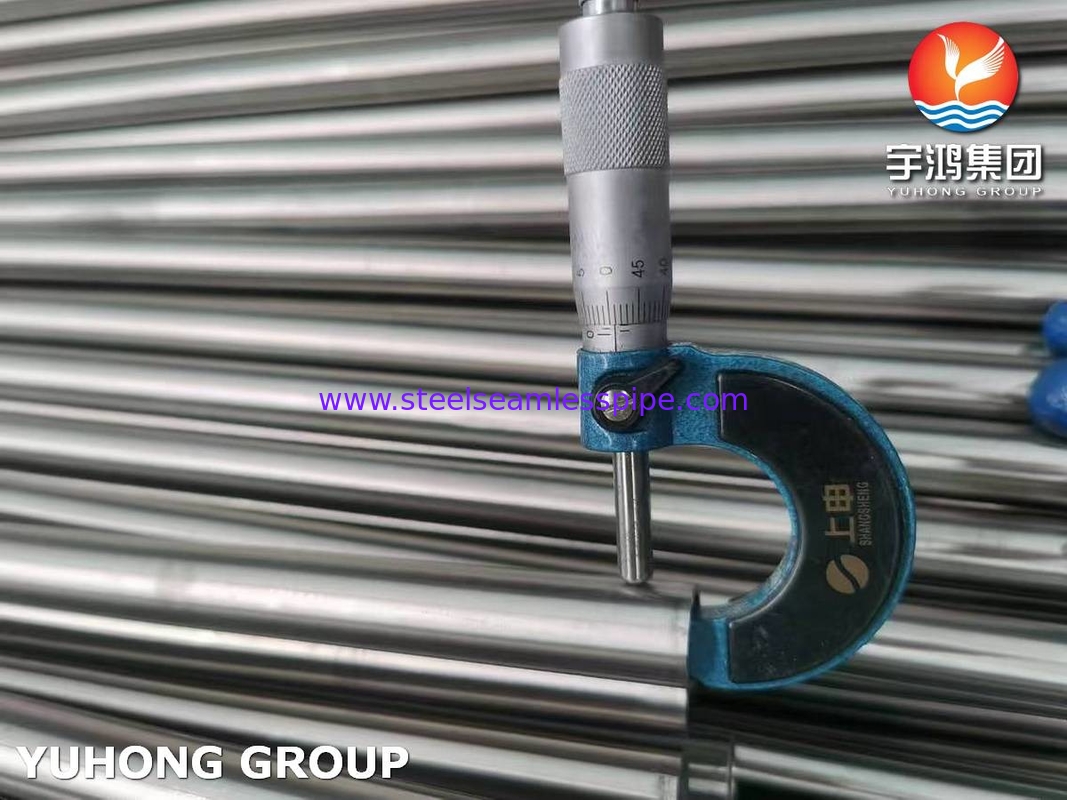

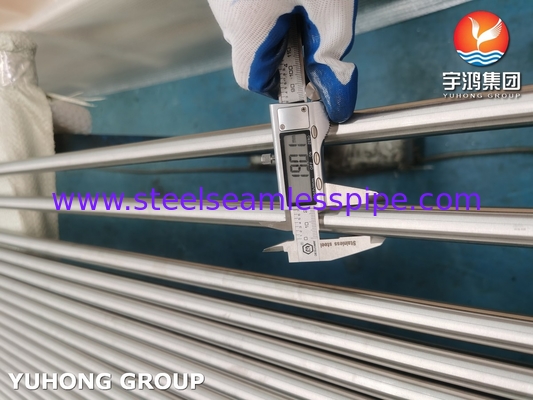

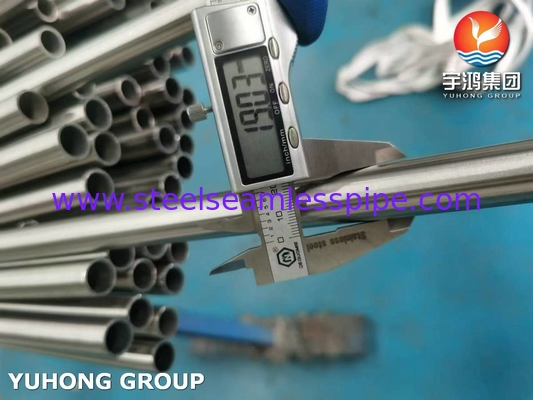

ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger

ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger

  • ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger
  • ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger
  • ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger
ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A249 TP304 Stainless Steel Welded Tube
Payment & Shipping Terms:
Minimum Order Quantity: 500kgs
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Product Name: Stainless Steel Welded Tube Standard: ASTM A249 / ASME SA249
Material Grade: TP304, TP304L , TP304H, TP309, TP310S, TP310H, TP316, TP316L, TP316Ti，TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP904L Size: 6.35mm (1/4"), 9.52mm (3/8"), 12.7mm(1/2"), 15.88mm (5/8"), 19.05mm(3/4"), 25.4mm (1"), 31.75mm(1-1/4"), 38.1mm (1-1/2"), 44.45mm(1-3/4"), 50.8mm(2"), 63.5mm(2-1/2"), 76.2mm(3"), 101.6mm (4")
Length: Single Random, Double Random & Cut Length Tube End: Plain End, Beveled End
Surface: Bright Annealed (BA), Pickled And Annlealed , Polished Form: Straight & U Bend & Coil
Application: Boiler, Super Heater, Heat Exchanger And Condenser
Highlight:

Boiler Stainless Steel Welded Tube

,

ASTM A249 Stainless Steel Welded Tube

,

Heat Exchanger Stainless Steel Welded Tube

ASTM A249 TP316L Bright Annealed Stainless Steel Welded Tube Heat Exchanger Tube





A249 TP316L refers to a specific type of stainless steel tube commonly used in various industries, particularly in applications requiring resistance to corrosion and high temperatures. It has below good properties:





Properties

  1. Corrosion Resistance:

    • Excellent resistance to pitting and crevice corrosion, particularly in chloride environments.

  2. High-Temperature Strength:

    • Maintains good mechanical properties at elevated temperatures.

  3. Weldability:

    • Good weldability in various welding processes; commonly used in welded applications.

  4. Durability:

    • Offers strong mechanical properties, making it suitable for structural applications.

  5. Formability:

    • Can be easily formed and fabricated into various shapes and size





ASTM A249 TP316L Stainless Steel Welded Tube Equivalent Grade

JIS WNR. / DIN UNS AISI EN
SUS316L 1.4404 S 31603 316L 02Cr17Ni12Mo2





ASTM A249 TP316L Stainless Steel Welded Tube Mechanical Properties

  Tensile Stress (Mpa) Yield Stress (Mpa) Elongation (%) Elongation (%)
SA 249 316L 485 170 35 25
1.4404 490-690 190 40 30



ASTM A249 TP316L Stainless Steel Welded Tube Chemical Composition

SA 249 C Mn P S Si Ni Cr Mo N
316L 0.035 2.00 0.045 0.030 1.0 10-14 16-18 2-3
1.4404 0.03 2.00 0.040 0.015 1.0 10-13 16.5-18.5 2-2.5 0.11



Dimensional Tolerences--all dimensions in inches (mm)

Size OD Nominal Wall Outside Diameter Length Wall

1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%





Applications

  • Heat Exchangers/superheater: Particularly used in heat exchangers due to its ability to resist oxidation and corrosion at elevated temperatures.
  • Boiler
  • Chemical Processing: Suitable for handling a wide range of chemicals.
  • Food and Beverage Industry: Common in applications where hygiene and corrosion resistance are essential.
  • Pharmaceuticals: Used in systems needing a clean and sterile environment.




ASTM A249 TP316L BA Stainless Steel Welded Tube For Boiler and Heat Exchanger 0
