ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 T11 Alloy Steel Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	500kgs
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (286)

Stainless Steel Seamless Tube (275)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (102)

Fin Tube (619)

Heat Exchanger (16)

Heat Exchanger Tube (425)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (78)

Copper Alloy Tube (222)

Alloy Steel Tube (182)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (141)

Steel Fitting (797)

Steel Flange (583)

Others (388)

Cladding Parts (7)

Detailed Product Description

Product Name:	Seamless Alloy Steel Tube	Standard:	ASTM A213, ASME SA213
Material Grade:	T1, T2, T11, T12, T91, T92	Form:	Round Tubes
Length:	Single Random, Double Random & Cut Length	End:	Plain End, Beveled End
Process:	Cold-finished	NDT:	Eddy Current Test, Hydrostatic Test , Ultrasonic Test
Application:	Boiler, Heat Exchanger
Highlight:	Chrome Moly Alloy Steel Seamless Tube , Boiler Alloy Steel Seamless Tube , ASTM A213 Alloy Steel Seamless Tube

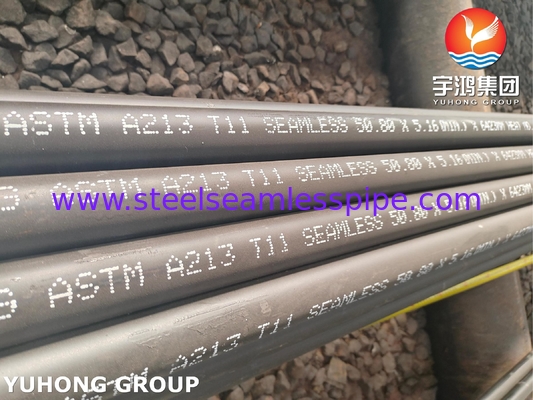

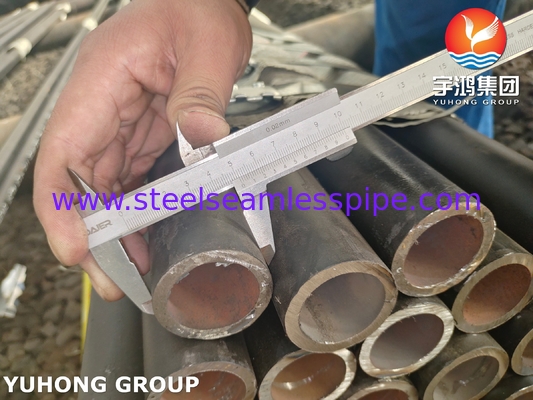

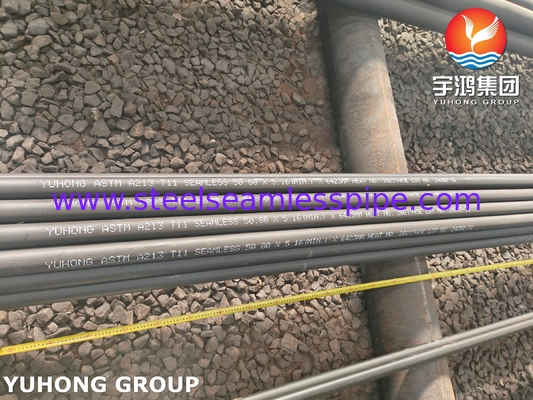

ASTM A213 / ASME SA213 T11 Seamless Alloy Steel Tube Boiler Tube

ASTM A213 T11 tubes are primarily made from an alloy that includes chromium and molybdenum, which enhance the mechanical properties of the steel, including its strength and resistance to heat and corrosion. Specifically, T11 contains around 1% chromium and about 0.5% molybdenum, providing excellent high-temperature strength and oxidation resistance, making T11 a popular choice in industries such as power generation, petrochemical, and manufacturing.

Quality Control

Visual inspection
Dimensional checks
Nondestructive testing (NDT) methods (Eddy Current Test, Hydrostatic Test , Ultrasonic Test)
Mechanical property tests (tensile, yield strength, hardness)

Advantages: The primary advantages of using ASTM A213 T11 seamless tubes include:

High-Temperature Performance: The composition allows for operation in environments exceeding 1000°F (538°C).
Corrosion Resistance: While susceptible in acidic environments, T11 shows good resistance to oxidation, extending service life.
Versatility: Suitable for a variety of applications across multiple industries.
Durability: The lack of seams in the tube construction eliminates the risk of seam failures, enhancing reliability.

SA213/A213 T11 Chrome Moly Alloy Steel Seamless Tube

Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter			BWG
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties

Grade	Chemical Composition%
Grade	C	Si	Mn	P, S Max	Cr	Mo	Ni Max	V	Al Max
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	–	–	–
T11	0.05~0.15	0.50~1.00	0.30~0.60	0.025	1.00~1.50	0.44~0.65	–	–	–
T12	0.05~0.15	Max 0.5	0.30~0.61	0.025	0.80~1.25	0.44~0.65	–	–	–
T22	0.05~0.15	Max 0.5	0.30~0.60	0.025	1.90~2.60	0.87~1.13	–	–	–
T91	0.07~0.14	0.20~0.50	0.30~0.60	0.02	8.0~9.5	0.85~1.05	0.4	0.18~0.25	0.015
T92	0.07~0.13	Max 0.5	0.30~0.60	0.02	8.5~9.5	0.30~0.60	0.4	0.15~0.25	0.015
Grade	Chemical Composition%				Mechanical Properties
Grade	W	B	Nb	N	T. S	Y. P	Elongation	Hardness
T2	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T11	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T12	–	–	–	–	≥ 415MPa	≥ 220MPa	≥ 30%	163HBW(85HRB)
T22	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T91	–	–	0.06~0.10	0.03~0.07	≥ 585MPa	≥ 415MPa	≥ 20%	250HBW(25HRB)
T92	1.50~2.00	0.001~0.006	0.04~0.09	0.03~0.07	≥ 620MPa	≥ 440MPa	≥ 20%	250HBW(25HRB)

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance

Permissible variations from the specified minimum wall thickness shall be in accordance with Specification A1016/A1016M.

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	–	+ 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, – 0 mm
