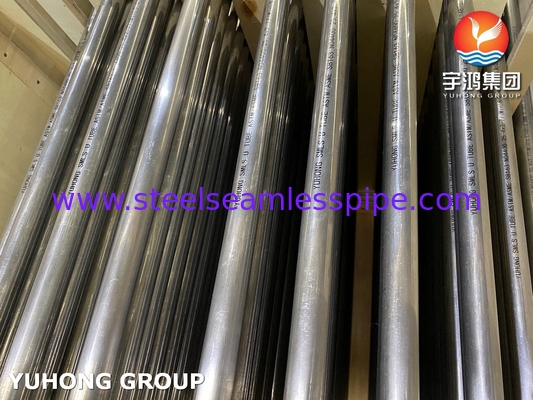

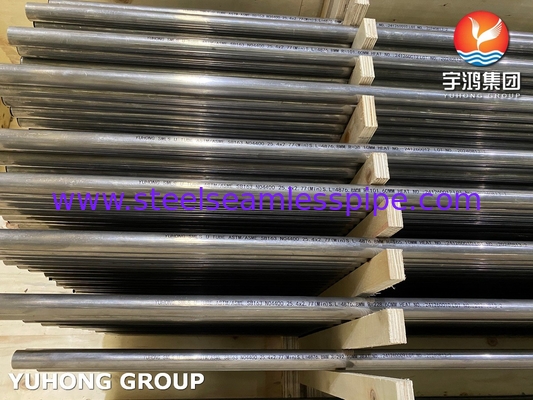

ASME SB163 UNS N04400 Nickel Copper Alloy Heat Exchanger Tube Monel 400 U Tube

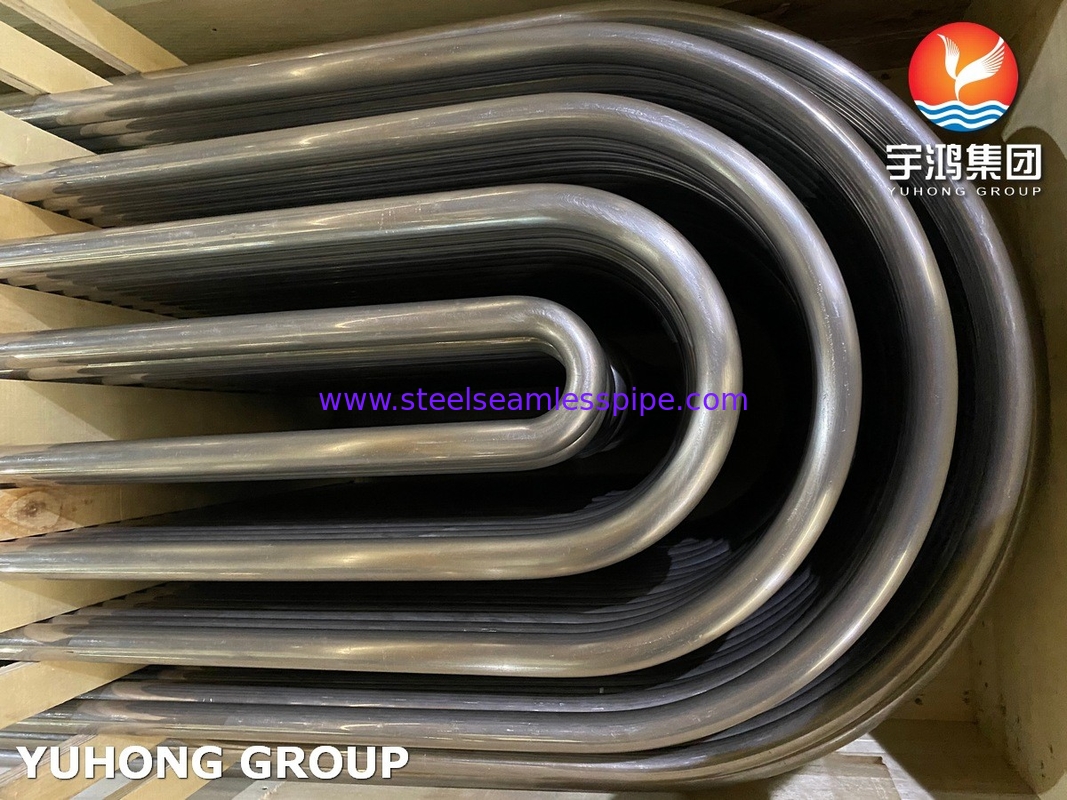

ASTM B163 / ASME SB163 Monel 400 / UNS N04400 Nickel-Copper Alloy Seamless U Bend Tube

ASTM B163/ ASME SB163 specification relates to tubes defined by their outside diameter along with either average wall thickness or minimum wall thickness. It applies to sizes of 3 inches (76.2 mm) in outside diameter or less, with minimum wall thicknesses not exceeding 0.148 inches (3.76 mm) and average wall thicknesses not exceeding 0.165 inches (4.19 mm). Monel 400 is mainly consist of Nickel and Copper, which known for its excellent corrosion resistance, good strength and thermal stability, especially in marine environments and acidic conditions.

Here are some key characteristics of Monel 400:

1. Corrosion Resistance: Monel 400 is highly resistant to corrosion in seawater and many acidic environments. This makes it ideal for applications in chemical processing, marine engineering, and oil and gas extraction.

2. Mechanical Properties: The alloy maintains good mechanical properties at both elevated and sub-zero temperatures, making it suitable for a variety of temperatures in applications.

3. Weldability: Monel 400 can be welded using most standard processes, although proper techniques should be employed to prevent cracking.

4. Applications: It is commonly used in pumps, valves, fittings, and other components in marine and chemical applications, along with aerospace and nuclear industries.

5. Non-Magnetic: Monel 400 is non-magnetic, making it useful in applications where magnetic permeability is a concern.

Applications

1. Heat Exchangers:

   • Widely used in marine and chemical processing heat exchangers due to their exceptional resistance to chlorides and other corrosive materials.

2. Boiler Systems:

   • Employed in boiler tubing applications where high pressure and temperature are factors.

3. Marine Applications:

   • Ideal for seawater applications, such as in shipbuilding and offshore equipment, owing to its resistance to saltwater corrosion.

4. Chemical Processing:

   • Used in various chemical production processes, particularly where acids or other harsh chemicals are present.

5. Oil and Gas Industry:

   • Utilized in piping systems and equipment where high corrosion resistance and strength are crucial, especially in sour gas applications.

6. Aerospace Applications:

   • Can be found in specific aerospace components where exposure to corrosive environments is a concern.

7. Pulp and Paper Industry:

   • Used in chemical handling systems and processes where the material can come into contact with aggressive chemicals.

8. Nuclear Power Plants:

   • Applied in systems requiring high performance under extreme conditions and an ability to resist corrosion.

9. Heat Treating Equipment:

   • Suitable for various components in heat treating processes due to its strength at elevated temperatures.

10. Distillation Equipment:

    • Used in distillation columns and other equipment where a non-reactive, durable material is required.
