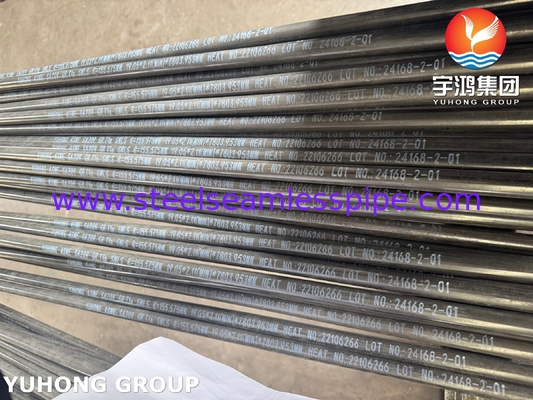

Alloy Steel Boiler And Superheater Tube ASME SA209 T1 T1a T1b Seamless

    Alloy Steel Boiler and Superheater Tube ASME SA209 T1 T1a T1b Seamless

ASME SA209 is a specification under the ASME (American Society of Mechanical Engineers) standards for seamless carbon-molybdenum alloy-steel tubes used for boilers, superheaters, and heat exchangers. Within this specification, there are different grades, including T1, T1a, and T1b. Here's an overview of each:

1. ASME SA209 Grade T1:

• Chemical Composition:
  • Carbon (C): 0.15% max
  • Manganese (Mn): 0.30–0.80%
  • Phosphorus (P): 0.025% max
  • Sulfur (S): 0.025% max
  • Molybdenum (Mo): 0.44–0.65%
• Typical Applications:
  • Used in high-temperature applications such as boilers, superheaters, and heat exchangers.

2. ASME SA209 Grade T1a:

• Chemical Composition:
  • Carbon (C): 0.05–0.15%
  • Manganese (Mn): 0.30–0.80%
  • Phosphorus (P): 0.025% max
  • Sulfur (S): 0.025% max
  • Molybdenum (Mo): 0.44–0.65%
• Differences from T1:
  • T1a has a narrower range of carbon content compared to T1, allowing for slight variation in mechanical properties.

3. ASME SA209 Grade T1b:

• Chemical Composition:
  • Carbon (C): 0.05–0.15%
  • Manganese (Mn): 0.30–0.80%
  • Phosphorus (P): 0.025% max
  • Sulfur (S): 0.025% max
  • Molybdenum (Mo): 0.44–0.65%
• Differences from T1 and T1a:
  • Similar chemical composition to T1a, but the material may have different mechanical properties or intended applications.
