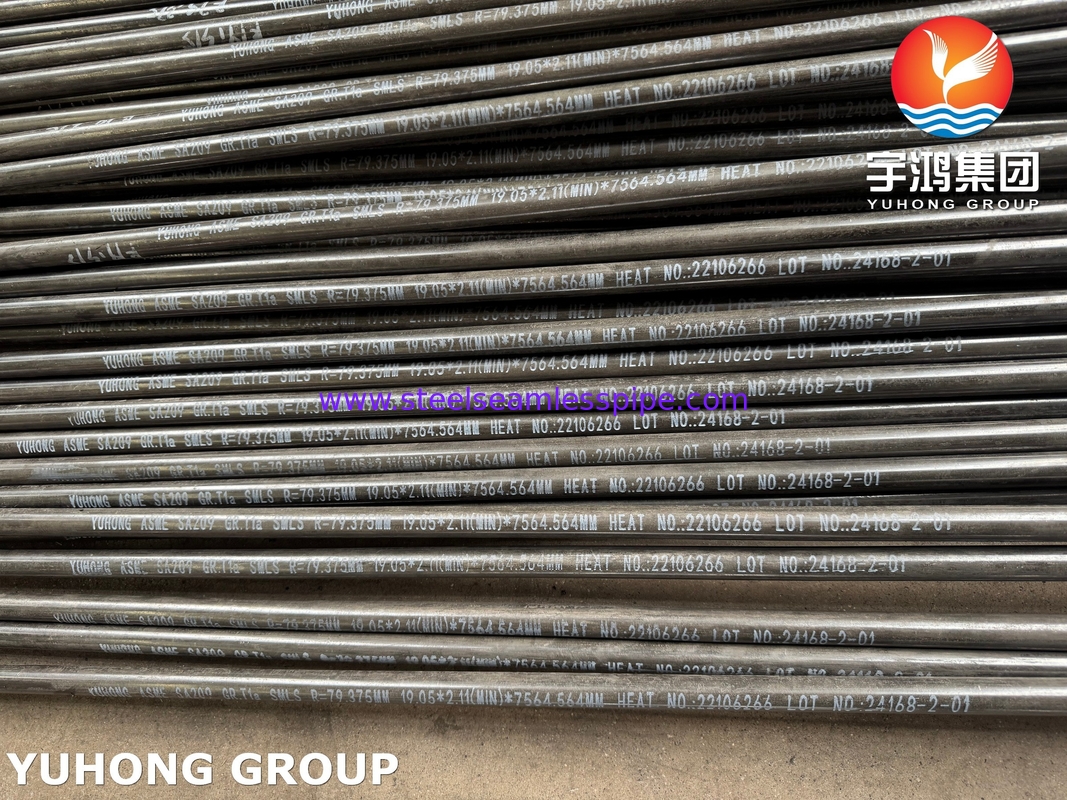

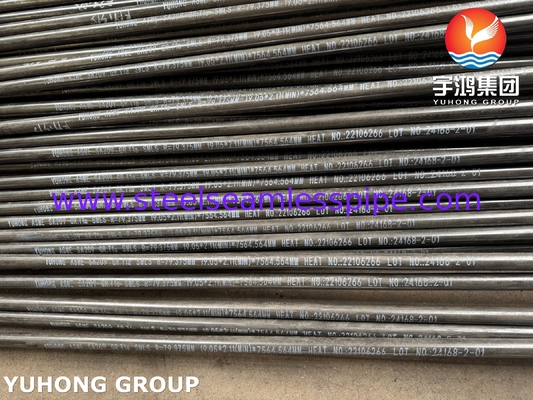

ASME SA209 T1a Seamless Carbon Molybdenum U Bend Tube Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number:	ASTM A209 T1, T1a, T1b Alloy Steel Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1000KGS
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7days
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (278)

Stainless Steel Seamless Tube (267)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (91)

Fin Tube (605)

Heat Exchanger (10)

Heat Exchanger Tube (421)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (211)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (787)

Steel Flange (576)

Others (384)

Detailed Product Description

Product Name:	U Bend Tube	Standard:	ASTM A209, ASME SA209
Material Grade:	T1 , T1a, T1b	OD:	1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc.
WT:	25 BWG, 22 BWG, 20 BWG ... 10 BWG	Length:	Single Random, Double Random & Cut Length
End:	Plain Ends / Beveled Ends	Radius:	Can Custom
Application:	Boiler, Heat Exchanger, Condenser, Heating, Cooling System
Highlight:	Heat Exchanger U Bend Tube , ASME SA209 U Bend Tube , Seamless Carbon-Molybdenum U Bend Tube

ASTM A209 / ASME SA209 T1A Low Alloy Steel Seamless U Bend Heat Exchanger Tube

ASME SA209 T1A is a material specification for seamless carbon steel tubes primarily used in boiler and superheater applications. This alloy provides good strength at elevated temperatures and moderate resistance to oxidation and creep, making it suitable for high-temperature and high-pressure environments. However, for more aggressive corrosion and higher temperature, other alloys like T22, T91 or Inconel might be used.

Advantages of ASME SA209 T1A Low Alloy Steel Seamless Tubes

Cost-Effective: Compared to higher-alloy steels, SA209 T1A tubes are more cost-effective while still providing good performance for high-temperature and high-pressure applications.
Versatility: They are widely used in a range of industries and applications, thanks to their balance of performance and cost.
Reliability: Being part of the ASME standards, these tubes are designed to meet high safety and reliability standards, ensuring long-term performance in critical systems.

Equivalent Designation

DIN	ASTM
DIN 17175 Grade 16Mo5	ASME SA 209 Grade T1a

ASTM A209/ ASME SA209 T1, T1a, T1b Alloy Steel SeamlessTubes Chemical Composition

Grade	C	Mn	P	S	Si	Mo
T1	0.10-0.20	0.30-0.80	≤0.025	≤0.025	0.10-0.50	0.44-0.65
T1a	0.15-0.25	0.30-0.80	≤0.025	≤0.025	0.10-0.50	0.44-0.65
T1b	0.14 max	0.30-0.80	≤0.025	≤0.025	0.10-0.50	0.44-0.65

Tensile Requirements and Hardness

Mechanical Properties
Grade	Tensile	Yield	Elongation	Hardness
Grade	Strength (Mpa)	Strength (Mpa)	(%)	(HRB)
T1	≥380	≥205	≥30	≤80
T1a	≥365	≥195	≥30	≤81
T1b	≥415	≥220	≥30	≤77

1>. Flattening Test

The flattening test of Specification A999/A999M shall be made on a specimen from one end or both ends of each pipe. Crop ends may be used. If this supplementary requirement is specified, the number of tests per pipe shall also be specified. One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot.

2>. Flaring Test

One flaring test shall be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot.

3>. Hydrostatic or Nondestructive Electric Test

Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.

4>. Bend Test

For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test. Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser

Alternative grades of ASME SA209 T1A Alloy Steel Seamless Tubing

Steel Grade	Pipe	Tube	Fittings	Plate	Forgings
1/2Mo	A335 P1	A213 T1	A234 WP1		A182 F1
5Cr-1/2Mo	A335 P5	A213 T5	A234 WP5	A387 GRADE 5	A182 F5
9Cr-1Mo	A335 P9	A213 T9	A234 WP9	A387 GRADE 9	A182 F9
1 1/4 Cr-1/2Mo	A335 P11	A213 T11	A234 WP11	A387 GRADE 11	A182 F11
2 1/4Cr-1Mo	A335 P22	A213 T22	A234 WP22	A387 GRADE 22	A182 F22
9Cr-1Mo-V-Nb	A335 P91	A213 T91	A234 WP91	A387 GRADE 91	A182 F91

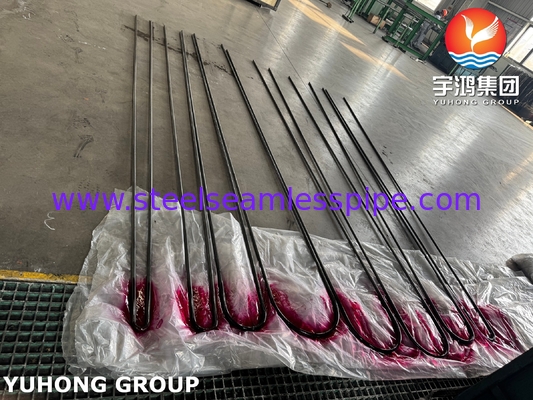

PT / Penetration Test of U Bend Area

ASME SA209 T1a Seamless Carbon Molybdenum U Bend Tube Heat Exchanger Tube 0

Applications:

Heat Exchanger Tube Bundles: U-bend tubes are often found in shell-and-tube heat exchangers, where they are bent to form part of the tube bundle. These heat exchangers are used in industrial processes like oil refining, power generation, and chemical processing.
Steam Generators: In boiler systems, U-bend tubes are used in the superheater and reheater sections where steam is heated to higher temperatures.
Fired Heaters: U-bend tubes are also commonly used in fired heater systems in petrochemical refineries.
