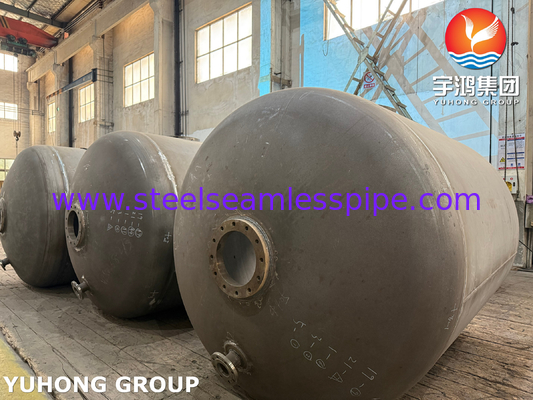

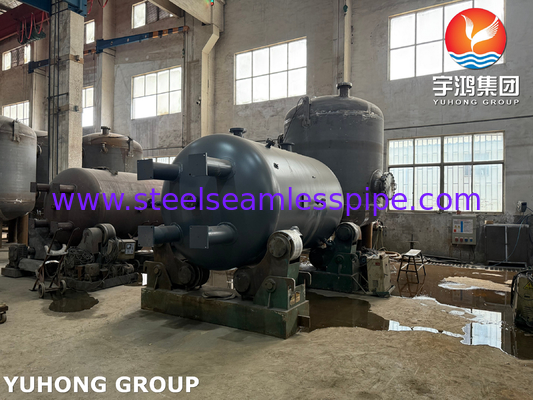

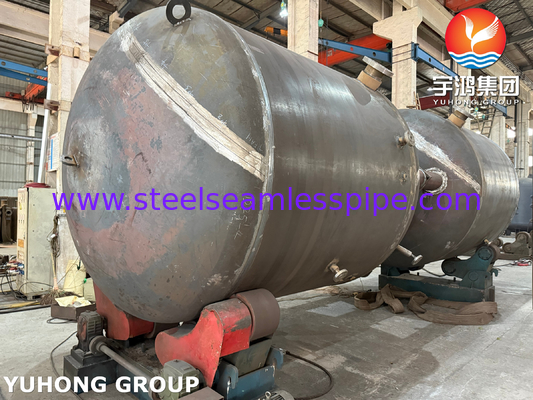

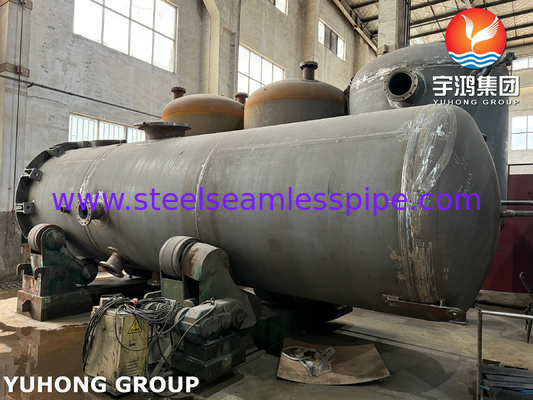

SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries

SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries

  • SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries
  • SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries
  • SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries
  • SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries
SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number: PRESSURE VESSEL
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: PALLET,PLYWOOD CASE
Delivery Time: 45-150DAYS
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
MAIN MATERIAL: ASME SA516 Gr.60, ASME SA516 GR.70 STANDARD: ASME -BPVC Section VIII, EN13445, API 510, API 620, API 650, API 653 , ISO 16528
SIZE: AS PER DRAWING TYPE: Storage Vessel,Heat Exchanger,Reactor,Separator,Cryogenic Vessel
Highlight:

Petrochemical Pressure Vessel

,

Energy Industries Pressure Vessel

,

SA516 Gr 70 Pressure Vessel

SA516 Gr.70 Pressure Vessel Applications in Petrochemical and Energy Industries

SA516 Gr.70 is a carbon steel plate widely used in pressure vessel manufacturing.

Basic Properties
  • Material Type: Carbon steel plate for low-to-moderate temperature pressure vessels.
  • Standard: ASTM A516/A516M.
  • Grade: Gr.70 (minimum tensile strength of 70 ksi, ~485 MPa).





Element C (Carbon) Mn (Manganese) P (Phosphorus) S (Sulfur) Si (Silicon)
Content ≤0.30% 0.85–1.20% ≤0.025% ≤0.025% 0.15–0.40%
- Low S/P content: Ensures good weldability and resistance to brittle fracture.

Mechanical Properties
Property Requirement
Tensile Strength 70–85 ksi (485–585 MPa)
Yield Strength ≥38 ksi (≥260 MPa)
Elongation ≥21% (50mm gauge length)
Impact Toughness Compliant (e.g., -46°C test)

Key Applications
  • SA516 Gr.70 is designed for pressure vessels, commonly used in:
  • Petrochemicals: Storage tanks, reactors, distillation columns.
  • Energy: Boilers, steam generators, heat exchangers.
  • Natural Gas: LPG/LNG storage tanks.
  • Low-Temperature Equipment: Suitable for environments above -46°C (with impact testing)
International Equivalents
  • Europe: EN 10028 P355GH (similar properties).
  • Japan: JIS G3115 SPV490.
  • China: GB 713 Q345R (similar but with slight compositional differences).

Summary of Common Types
Type Example Key Use Case
Storage Vessel Propane tank, air receiver Hold pressurized fluids
Heat Exchanger Shell-and-tube, boiler Transfer heat between fluids
Reactor Batch reactor, CSTR Chemical reactions
Separator Oil-gas separator Phase separation
Cryogenic Vessel LNG storage tank Ultra-low-temperature storage

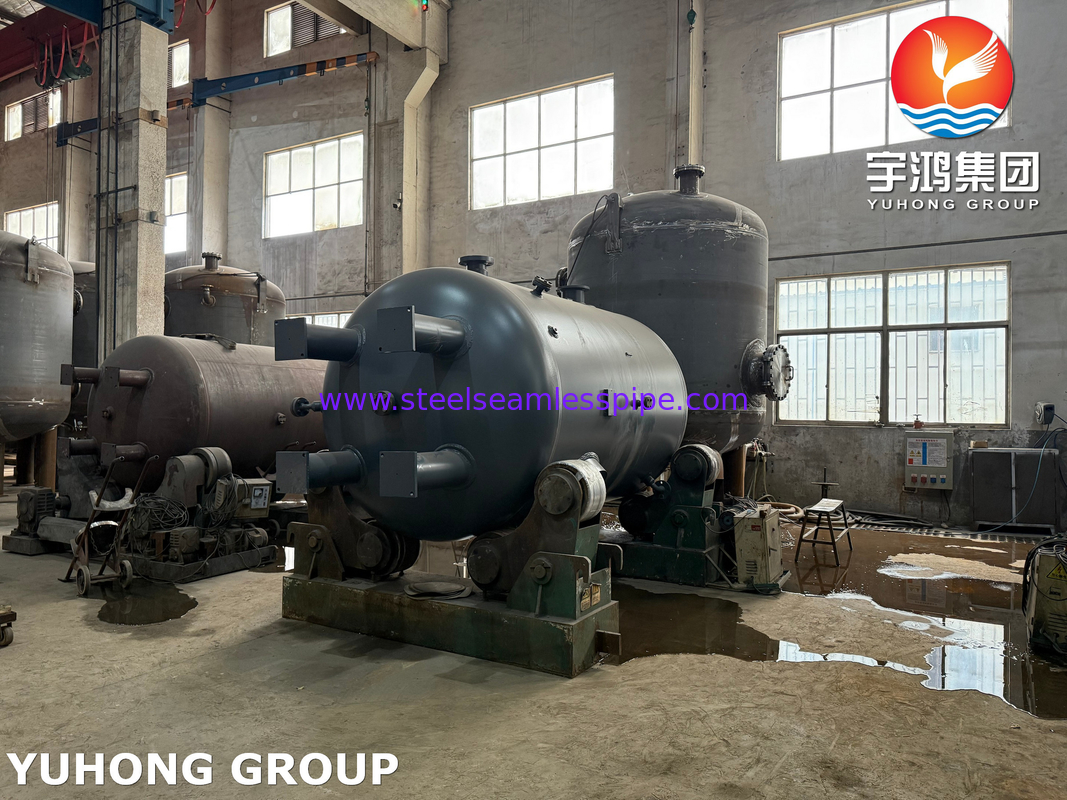

SA516 Gr 70 Pressure Vessel Applications In Petrochemical And Energy Industries 0
