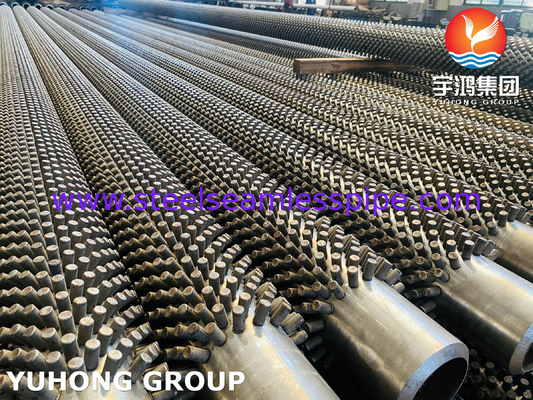

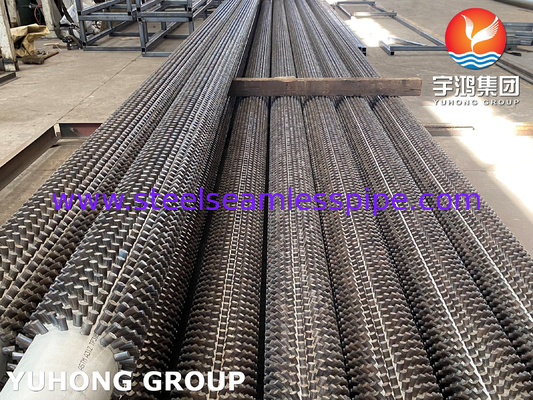

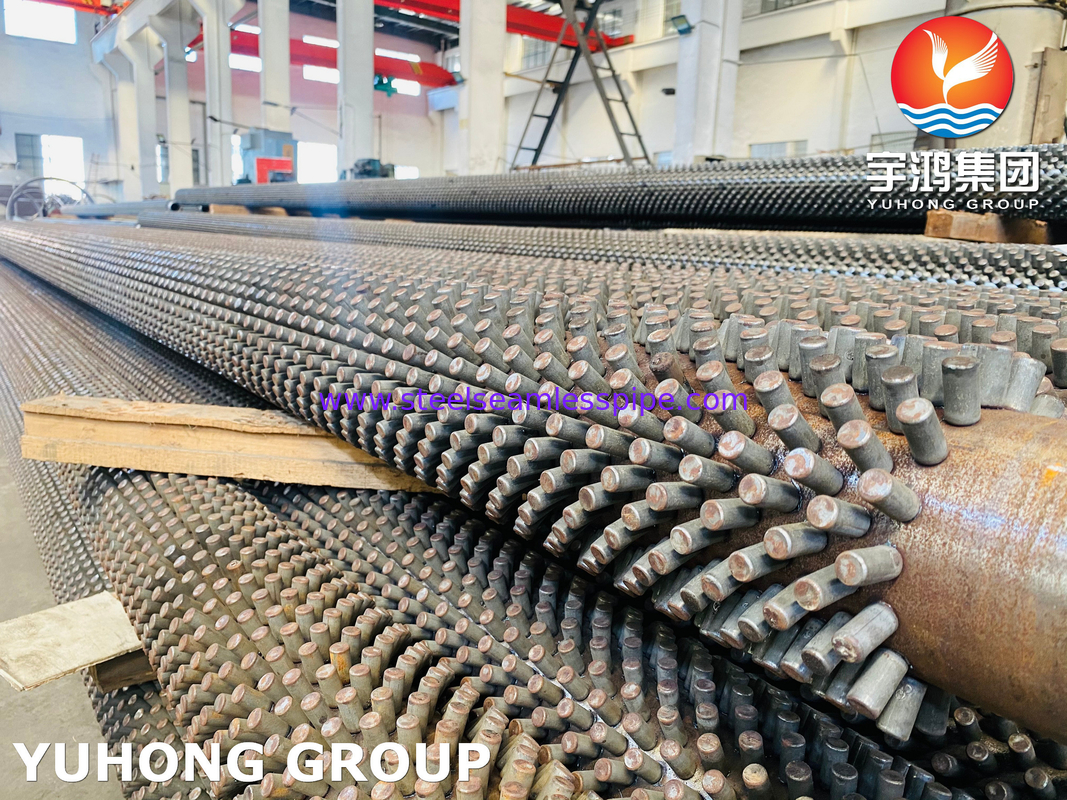

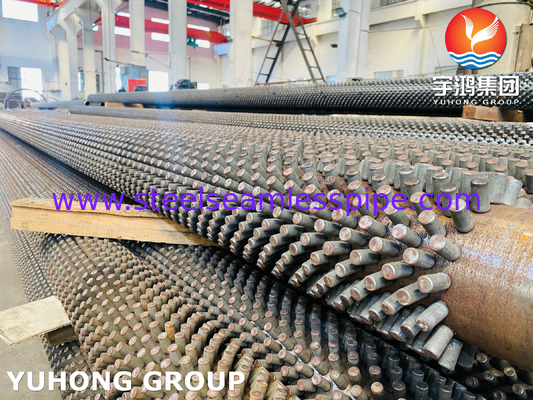

High Quality ASTM A312 TP316L Studded Tube For Furnaces and Steel Plants

1. Material Specification:

ASTM A312: Standard for seamless/welded austenitic stainless steel pipes, suitable for high-temperature and corrosive environments.

TP316L: Low-carbon (0.03% max) variant of 316 stainless steel, enhancing weldability and corrosion resistance by reducing carbide precipitation.

Studs: Small protrusions (typically resistance-welded) onto the tube surface. Made from compatible materials (often same as tube) to prevent galvanic corrosion.

Purpose: Anchor insulation or refractory linings in high-temperature systems (e.g., boilers, heaters). Studs improve thermal efficiency and safety by securing insulation.

2. Specialized Components

A. Studs (Anchor Pins)

Materials:

Typically made from TP316L to match the tube’s corrosion resistance.

Alternative alloys (e.g., Inconel 601 or RA253MA) for ultra-high-temperature (>1000°C) or sulfidation-resistant environments.

Design Variations:

Helical Studs: Spiral patterns for enhanced refractory anchoring.

Straight Studs: Vertical alignment for uniform load distribution.

Custom Shapes: Mushroom-head, crimped, or threaded studs for specific refractory adhesion.

Welding Process:

Capacitor Discharge (CD) Welding: High-speed, low-heat welding to minimize base tube distortion.

Drawn Arc Welding: For thicker studs requiring higher shear strength.

B. Base Tube (TP316L)

Enhanced Corrosion Resistance:

Low Carbon (0.03% max): Prevents sensitization in weld zones.

Molybdenum (2–3%): Improves pitting resistance in chloride-rich environments (e.g., marine or chemical plants).

Surface Treatments:

Pickling/Passivation: Removes iron contamination and restores oxide layer post-welding.

Shot Blasting: Roughened surface for better refractory bonding.

C. Stud-Tube Interface

Critical Zone:

Heat-affected zone (HAZ) around stud welds must retain corrosion resistance.

Laser Re-melting: Advanced technique to refine HAZ microstructure.

Shear Strength:

Studs are tested for minimum shear load (e.g., 500–1000 lbs per stud) to ensure refractory retention under thermal cycling.

3. Applications:

Industries: Power generation, petrochemical, chemical processing, incineration.

Use Cases: Heat exchangers, fired heaters, waste heat recovery systems, and environments requiring thermal insulation integrity under corrosive conditions.

4. Manufacturing & Quality Considerations:

Stud Welding: Precision welding to avoid compromising the tube’s integrity. Potential post-weld treatments (e.g., pickling) to restore corrosion resistance.

Standards: Stud dimensions/spacing may follow project-specific or industry guidelines (e.g., ASME for boiler applications).

Testing: Base tube undergoes hydrostatic, NDE, chemical, and mechanical tests per ASTM A312. Studs may require shear strength tests and visual inspections for weld quality.

5. Performance Factors:

Thermal Cycling: Stress concentrations at stud sites necessitate careful design to prevent cracking.

Corrosion Resistance: TP316L’s low carbon mitigates sensitization, but weld zones remain critical areas for potential corrosion.
