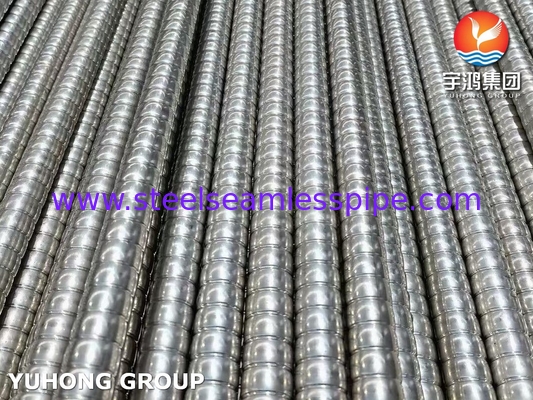

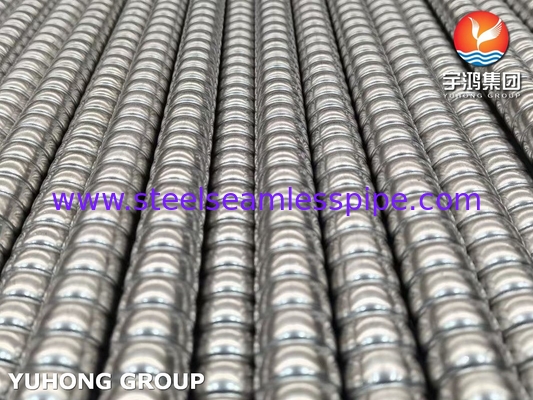

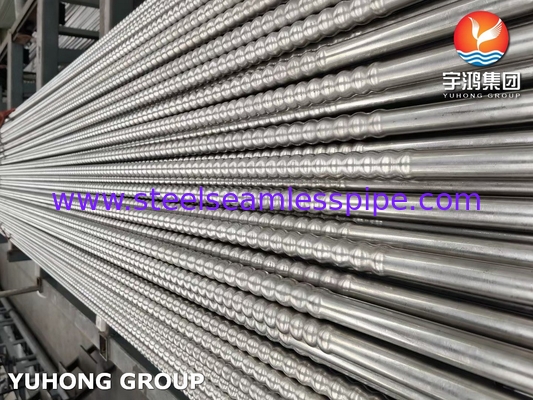

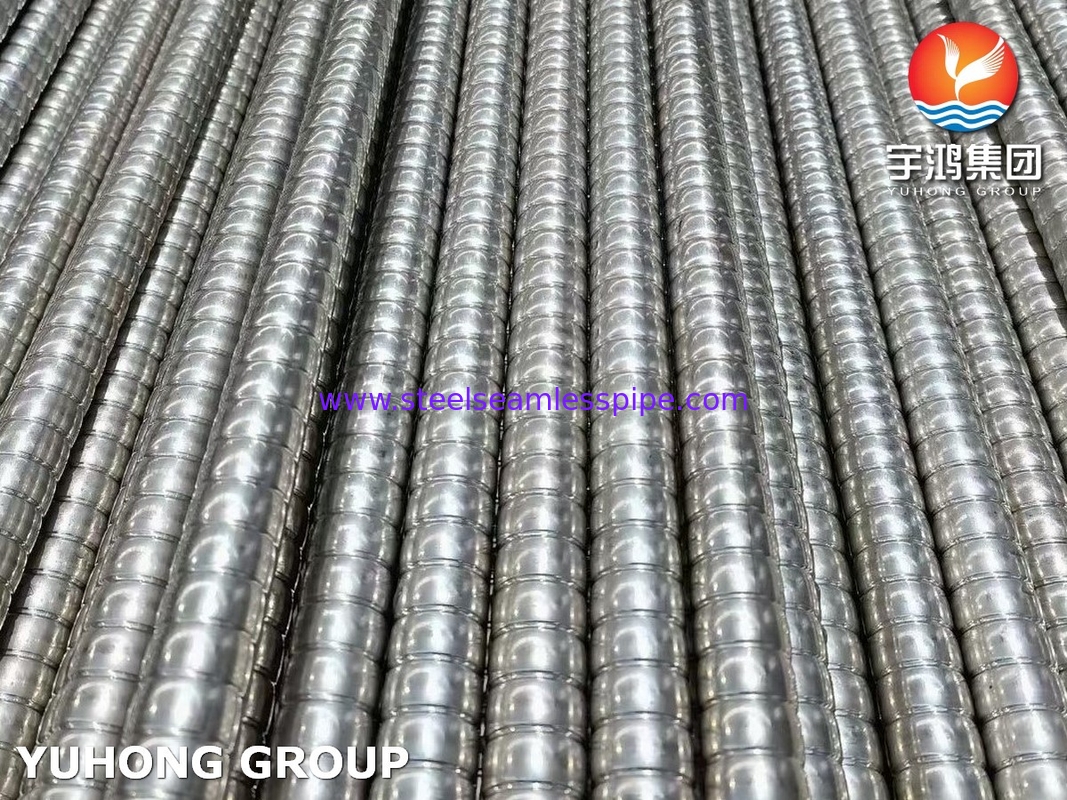

ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger

ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger

  • ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
  • ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
  • ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ASME , ABS , DNV-GL , BV , LR , KR , CCS , PED , TUV , ISO9001 , AD2000
Model Number: TP310S
Payment & Shipping Terms:
Minimum Order Quantity: 1000 KG
Price: Negotiable
Packaging Details: Iron Frame Case
Delivery Time: Depends on the quantity
Payment Terms: L/C, T/T
Supply Ability: According to client requirements
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Application: Heat Exchangers Standard: SA312 / ASTM A312
Certificate: ABS , DNV-GL , BV , LR , KR , CCS , PED , TUV , ISO9001 , AD2000 Type: Corrugated Fin Tubes
Highlight:

ASME SA312 Corrugated Fin Tube

,

Heat Exchanger Corrugated Fin Tube

,

ASTM A312 Corrugated Fin Tube

ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube , For Heat Exchanger





The ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube is a specialized heat exchanger tube designed for high-temperature and high-corrosion applications. It combines the excellent material properties of TP310S stainless steel with a corrugated structure to enhance heat transfer efficiency and mechanical performance.





Key Features

  • High Heat Resistance: Performs reliably in environments up to 1100°C (2012°F).
  • Enhanced Heat Transfer: The corrugated design increases heat transfer efficiency compared to standard smooth tubes.
  • Durable Construction: Resistant to thermal fatigue and mechanical stress.
  • Corrosion Resistance: Ideal for harsh environments, including chemical processing, power plants, and petrochemical industries.





Chemical Composition



Element Composition (Weight %)
Carbon (C) ≤ 0.08
Silicon (Si) ≤ 1.50
Manganese (Mn) ≤ 2.00
Phosphorus (P) ≤ 0.045
Sulfur (S) ≤ 0.030
Chromium (Cr) 24.00–26.00
Nickel (Ni) 19.00–22.00
Iron (Fe) Balance
Nitrogen (N) ≤ 0.10





Mechanical Properties of TP310S

Property Value
Tensile Strength ≥ 515 MPa (75,000 psi)
Yield Strength (0.2%) ≥ 205 MPa (30,000 psi)
Elongation ≥ 40%
Hardness ≤ 95 HRB
Density 7.9 g/cm³
Melting Range 1400–1450°C (2550–2650°F)





Applications

  • Heat exchangers
  • Boilers
  • Furnaces
  • Petrochemical processing
  • Power generation
  • Refinery units





Corrugated Design

The corrugated fin structure maximizes the surface area for heat transfer, improving thermal efficiency. This design also enhances turbulence within the fluid, further boosting heat exchange performance.







ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger 0
