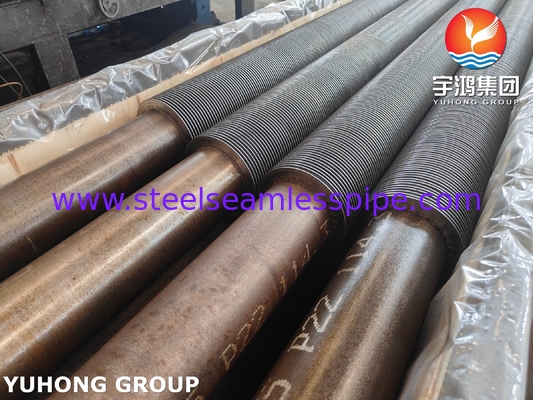

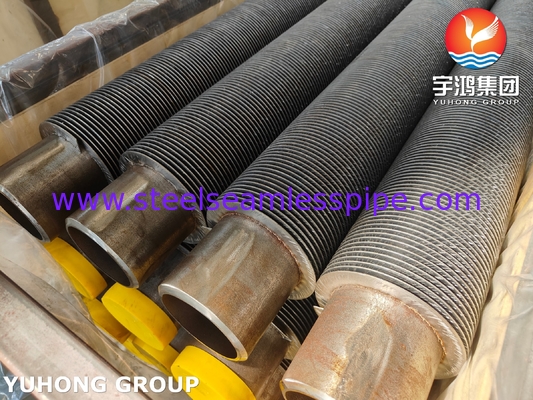

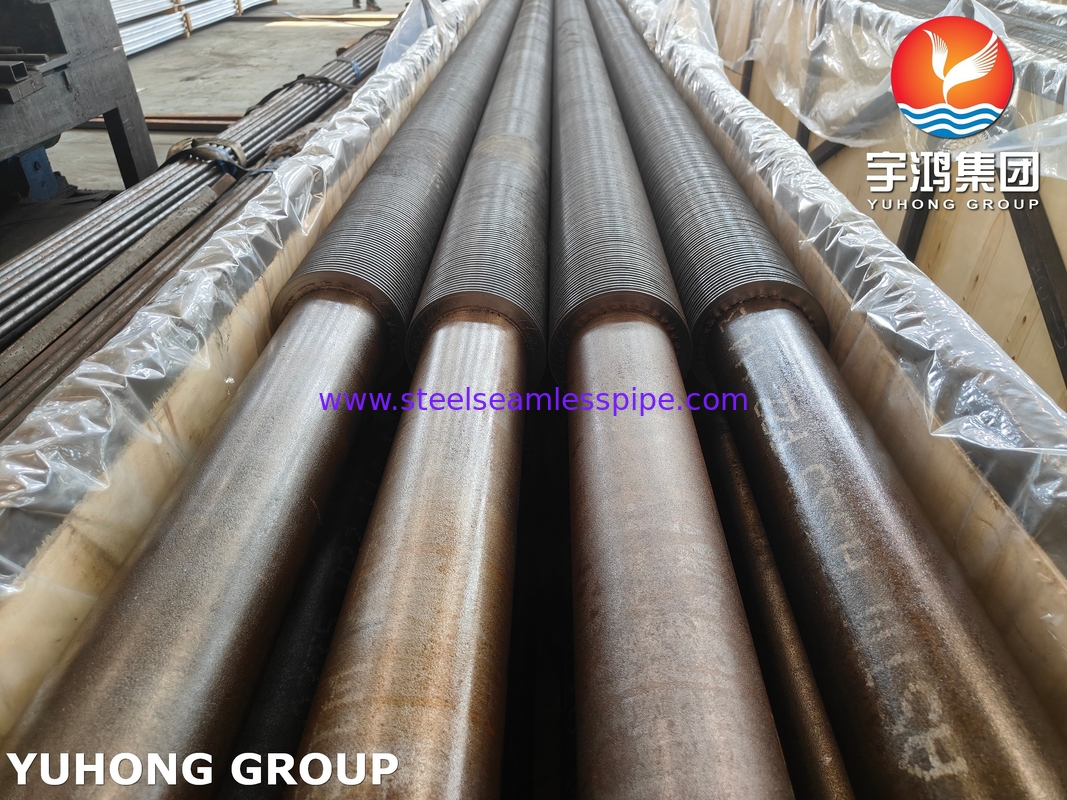

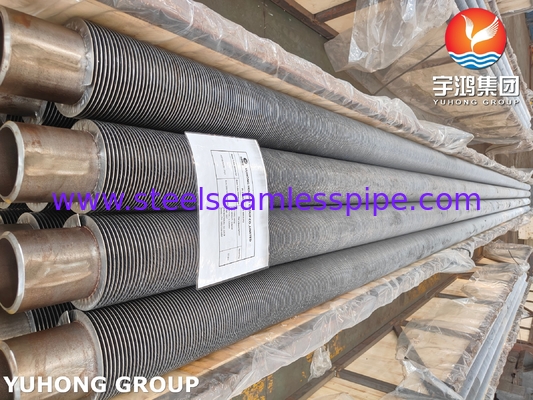

High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers

High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers

  • High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers
  • High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers
  • High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers
  • High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers
High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008
Model Number: ASTM A335 P22 High Frequency Welded Finned Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: 1-150000 USD
Packaging Details: Ply-wooden Case With Iron Frame
Delivery Time: 45-60 days, depend on quantity
Payment Terms: T/T, L/C
Supply Ability: 1000 tons/month
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Finned Tube Type: High Frequency Welded Finned Tube Finned Tube Standard: ASTM A335 P22
Finned Tube Material Grade: P22 With Fin Material 11-13 Cr Finned Tube Applicable Environment: High Temperature, Corrosion, Prone To Accumulate Dust, Etc.
Fin Tube Packing: Ply-wooden Case With Iron Frame Finned Tube Application: Power Station Boilers, Heating Boilers, Industrial Boilers, Heat Pipe Air Preheaters, Waste Heat Boilers, And Waste Heat Recovery Systems Of Various Industrial Furnaces
Highlight:

Industrial Economizers Finned Tube

,

High Frequency Welded Finned Tube

,

ASTM A335 P22 Finned Tube

High Frequency Welded Finned Tube ASTM A335 P22 For Industrial Economizers



ASTM A335 Specification for seamless ferritic alloy steel pipe for high temperture service.



High-frequency welded spiral finned tubes are formed by welding the base tube and the rotating strip-shaped fins on the tube surface using the high-frequency welding process. The weldable materials include carbon steel, low-carbon steel and stainless steel.



The application scope of alloy steel HFW finned tubes covers power plants, oil refineries, waste incineration plants and heavy industries, making it the preferred choice for energy-saving heat recovery systems.



Chemical Composition max %



Grade C Mn P S Si Cr Mo
P22/K21590 0.05-0.15 0.30-0.60 0.025 0.025 0.50 1.90-2.60 0.87-1.13



Mechanical Properties



Grade Tensile Strength,min Yield Strength (0.2%Offset,min) Elongation
P22/K21590 66ksi,415MPa 30ksi,205MPa 30%



Applications



Alloy steel high-frequency welded finned tubes are widely used in industrial economizers to enhance the thermal recovery efficiency of boilers, furnaces and process heaters, reduce fuel consumption and improve overall thermal performance. Due to their sturdy structure, high-temperature resistance and anti-corrosion properties, economizers can be applied in harsh industrial environments.



Boiler Flue Gas Heat Recovery

HRSG (Heat Recovery Steam Generators) in Power Plants

Process Heaters & Furnace Economizers

Cement & Steel Plant Economizers

Waste Incineration Plants



Specifications For Various Types Of Finned Tubes That We Can Offer



Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tueb 16-63 2.1~5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8.0~30 <2.5 /
Wound l/kl/ll type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studed fin tube 25-219 8~30 5~35 φ5-20



Welcome yours' consults about finned tubes to our YUHONG Group!
