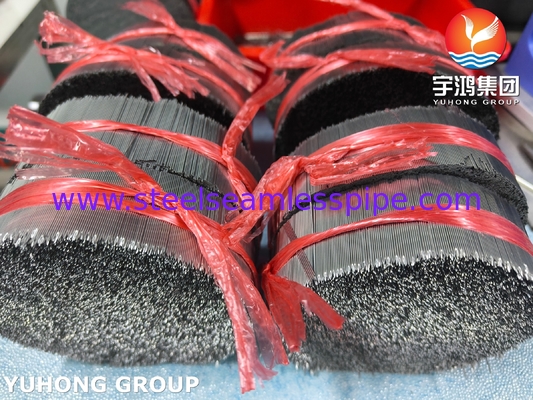

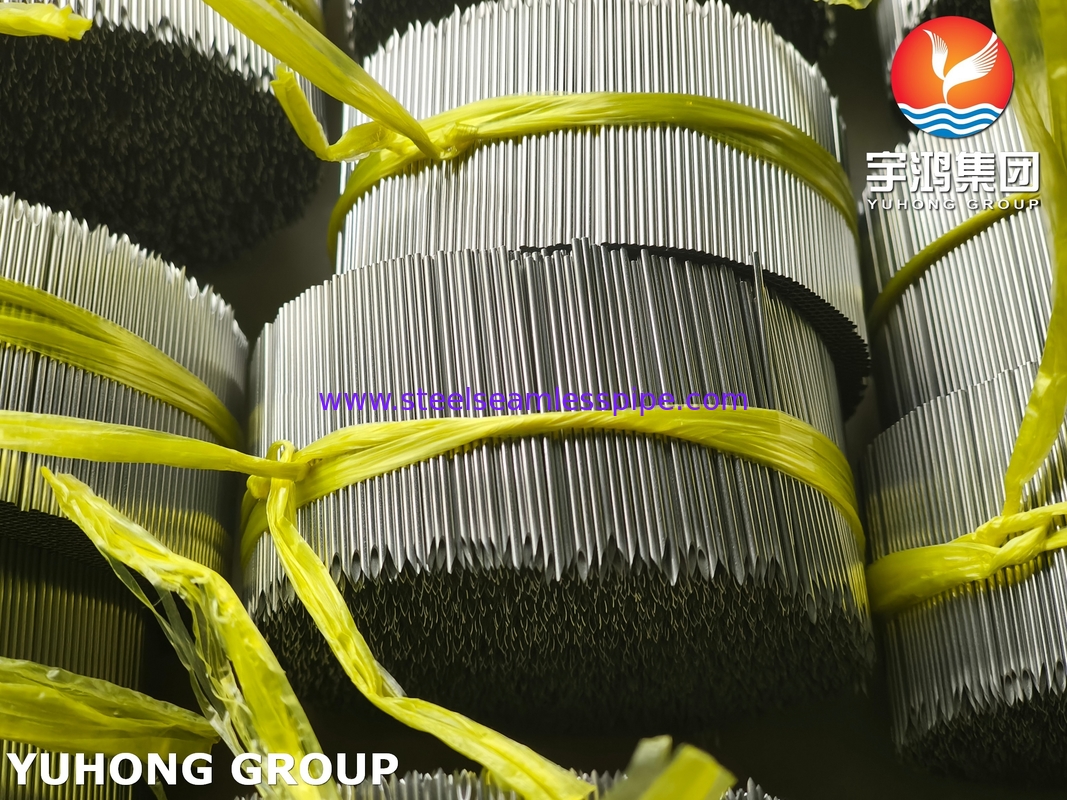

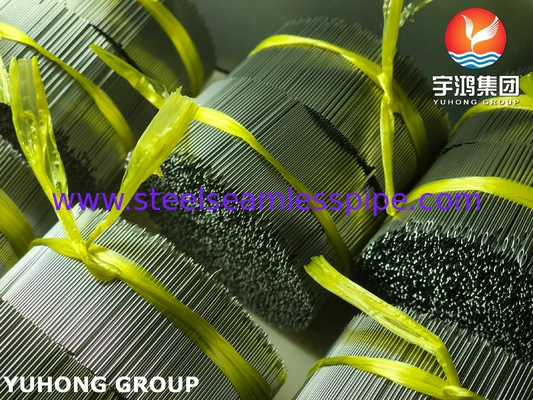

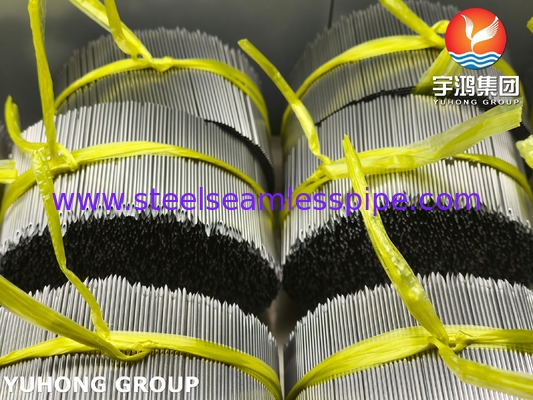

Stainless Steel Medical Grade 304 Injection Needle Tube For Syringe Accessory ISO7864

Stainless Steel Medical Grade 304 Injection Needle Tube For Syringe Accessory ISO7864

Medical Grade Stainless Steel Needle Tubes(Cannulas) are important part for many medical devices, such as syringes, catheters, surgical instruments, etc.. The most common needle tubes in our daily life are injection needle tubes, which are mainly produced by medical grade stainless steel 304 material. Some of medical needle tubes are made by stainless steel 316L material, such as implant devices. YUHONG GROUP manufacture medical injection needle tubes for more than hundreds of millions pieces per year, as this kind of needle tube is one of our high-volume stainless steel needle tubes. The injection needle tube point is usually grinded into lancet bevel point, like thriple bevel point, or flat bevel point. We can also design special needle point according to clients' samples or 2D/3D drawings.

Features Of Injection Needle Tubes:

• Medical Grade SUS304 Stainless Steel: Good corrosion-resistant
• ISO7864 Compliance: Guarantees safety, performance, and quality for single-use hypodermic needles.
• High Precision Dimensional Control
• Optimal Tip Sharpness (Lancet Grinded): Precision-ground bevel for smooth, low-pain penetration (generally 3-bevel or 5-bevel).
• Good Rigidity & Kink Resistance: Maintains integrity during insertion and use.
• Smooth Internal Bore: Minimizes turbulence and shear stress on fluids.
• Compatibility: Designed to be securely attached (crimped, glued) to standard plastic needle hubs for syringe assembly.

Main Injection Areas of the Human Body:

It depends heavily on Gauge and Length:

• Intradermal (ID): Shallow injection into the skin (e.g., allergy tests). E.g.: 26G-27G, 13mm-16mm.
• Subcutaneous (SC): Injection under the skin into fatty tissue (e.g., insulin, vaccines). E.g.: 25G-29G, 16mm (adults), 4-6mm (pediatric pens), up to 25mm.
• Intramuscular (IM): Injection into muscle tissue (e.g., vaccines, antibiotics, hormones). E.g.: 21G-23G, 25mm-50mm (length depends on patient size, muscle site, and injection volume).
• Intravenous (IV): Injection into a vein (starting IV lines, bolus injections). E.g.: 18G-22G (flow rate dependent), lengths vary (25mm for butterfly, 50mm+ for standard IV catheters).
• Aspiration: Withdrawing fluids (e.g., blood collection, joint aspiration). E.g.: 16G-21G, longer lengths (e.g.,40mm-100mm) depending on depth.

Standard Sizes Chart Of Stainless Steel Needle Tubes:
