ASTM B729 ALLOY 20 / UNS NO8020 Hastelloy Seamless Pipe

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS , GL , DNV , NK , PED , AD2000 , GOST9941-81 , CCS , ISO 9001-2008
Model Number:	ASTM B729 ALLOY20 (NO8020 / 2.4660)

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	50 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM B729/ASME SB729	Material Grade:	ALLOY20 (NO8020 / 2.4660)
Surface:	Pickled And Annealed, Bright Annealed, Polished	Type Of Tube:	Straight Tube
Alloy Or Not:	Nickel Alloy	Special Type:	Thick Wall Pipe
Highlight:	Seamles UNS NO8020 Pipe , ASTM B729 UNS NO8020 Pipe , UNS NO8020 Pipe

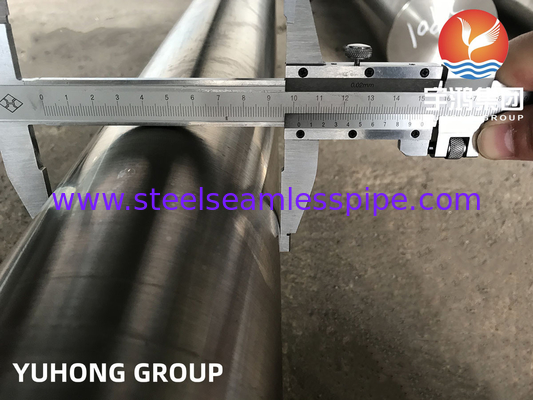

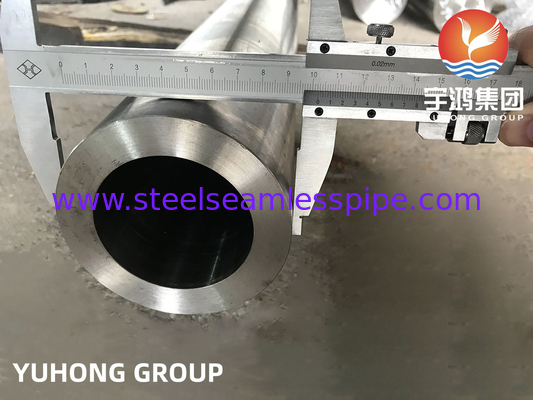

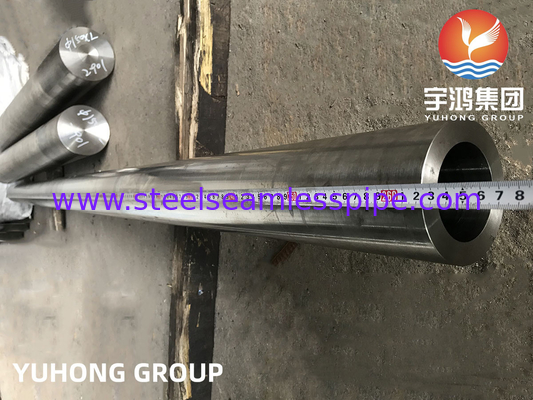

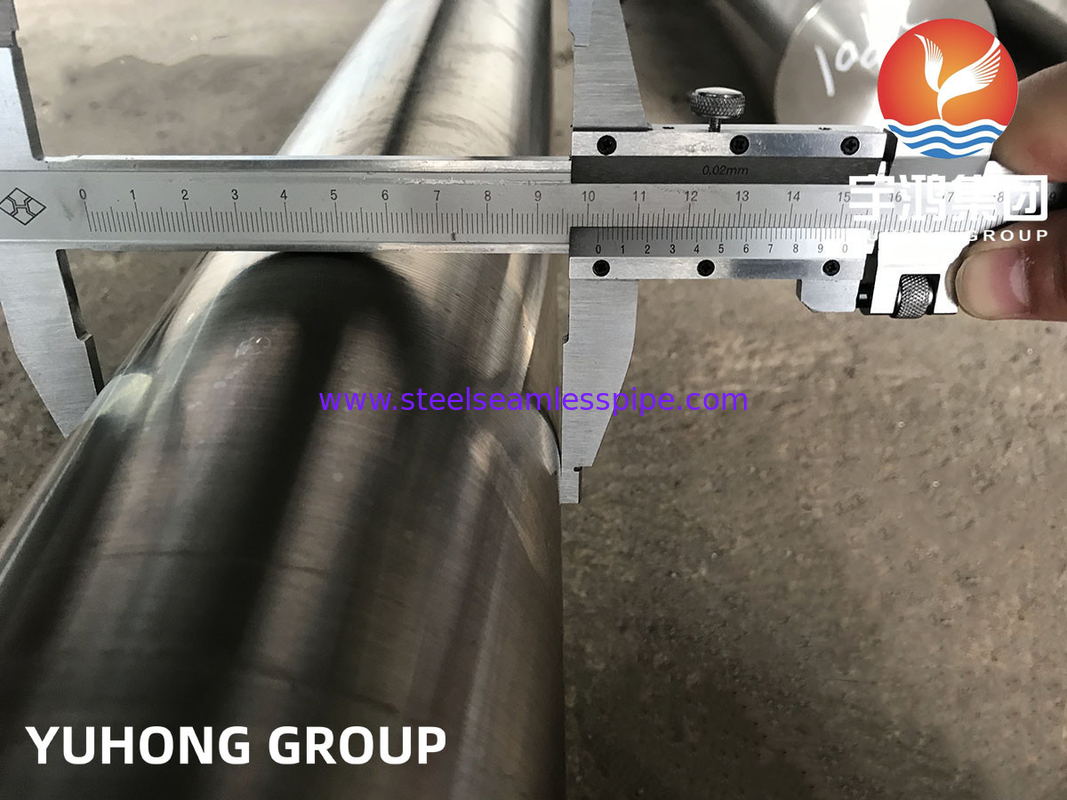

ASTM B729 ALLOY 20 / UNS NO8020 HASTELLOY SEAMLESS PIPE

ASTM B729 specifies the requirements for seamless pipes made from corrosion-resistant alloys, including Alloy 20 (UNS N08020). This material, classified as a nickel-iron-chromium (Ni-Fe-Cr) alloy, is specifically designed for superior corrosion resistance, especially in chemical processing environments.

Key Features of ASTM B729 Alloy 20 / UNS N08020 Pipes

Corrosion Resistance:
- Excellent resistance to sulfuric acid, nitric acid, and phosphoric acid.
- High resistance to pitting, crevice corrosion, and chloride ion stress-corrosion cracking.
- Ideal for environments containing strong oxidizers, organic acids, and reducing agents.
High-Performance Material:
- Enhanced mechanical strength due to its unique alloy composition.
- Suitable for both cryogenic and elevated-temperature applications.
Versatile Applications:
- Commonly used in chemical, pharmaceutical, food processing, and marine industries.
- Widely applied in heat exchangers, condensers, and storage tanks.

Alloy 20 Mechanical Properties

Density	Melting Range	Yield Stress (0.2%Offset)	Tensile Stress	Elongation
8.1 g/cm3	1443 °C (2430 °F)	Psi - 35000 , MPa - 241	Psi - 80000 , MPa - 551	30 %

B729 Alloy 20 Chemical Composition

Ni	C	Mo	Mn	Si	Fe	Cu	S	P	Cr
32 - 38	0.02 max	2 - 3	1 - 2	0.7 max	Bal	3 - 4	0.005 max	0.02 max	19 - 21

Manufacturing Specifications for ASTM B729 Seamless Pipes

Standards & Dimensions:
- Manufactured under ASTM B729 standards with precise dimensional tolerances.
- Available in various sizes, wall thicknesses, and lengths as per project requirements.
Production Process:
- Pipes are produced by seamless hot-working methods and, if necessary, are cold-finished to achieve the desired mechanical properties and dimensions.
Testing & Certification:
- Includes hydrostatic testing, non-destructive testing (NDT), and chemical analysis to ensure compliance with ASTM standards.
- Certified with material test reports (MTR) containing chemical and mechanical properties.
