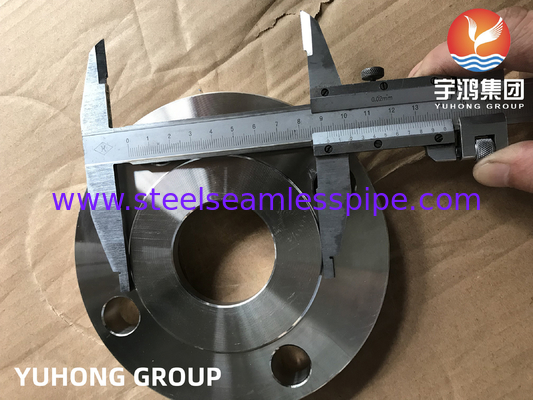

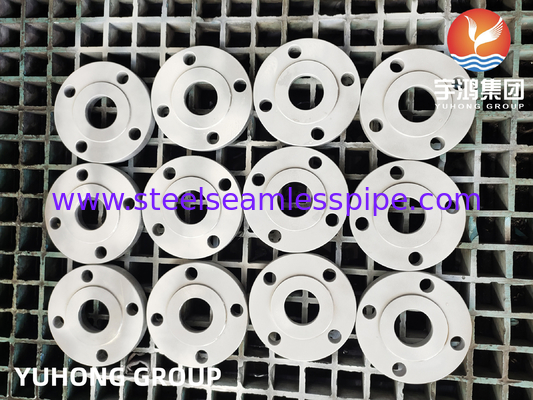

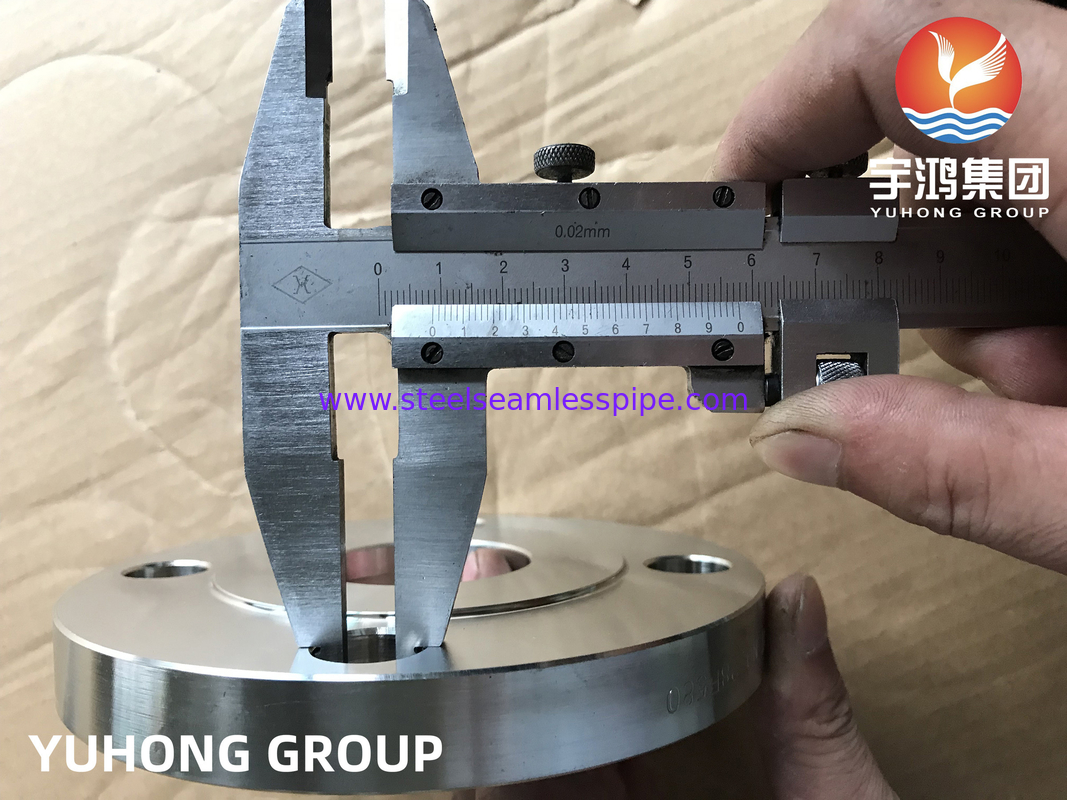

ASTM A182 F316L Stainless Steel Flange for Chemical Food Pharma

ASTM A182 F316L Stainless Steel Flange , Excellent Mechanical Properties

ASTM A182 F316L Stainless Steel Flanges are high-performance components widely used in piping systems for various industries, including oil and gas, chemical processing, power generation, and marine applications. These flanges are manufactured from 316L stainless steel, a low-carbon variation of 316 stainless steel, known for its superior corrosion resistance, excellent mechanical properties, and versatility in harsh environments.

Key Features of ASTM A182 F316L Flanges:

1. Material Composition:

   • The 316L grade contains molybdenum, which enhances resistance to pitting and crevice corrosion, especially in chloride-rich environments.
   • Its low carbon content minimizes the risk of carbide precipitation during welding, ensuring superior corrosion resistance.

2. Corrosion Resistance:

   • Excellent resistance to oxidation, pitting, and stress corrosion cracking.
   • Suitable for use in environments exposed to acids, alkalis, and seawater.

3. Mechanical Properties:

   • High tensile strength and durability, ensuring reliable performance under high pressure and temperature conditions.
   • Low carbon content improves weldability without compromising strength.

4. Applications:

   • Commonly used in systems handling corrosive fluids, such as in chemical plants, petrochemical facilities, and offshore environments.
   • Widely employed in food processing, pharmaceuticals, and desalination plants due to its hygienic and corrosion-resistant properties.

Types of ASTM A182 F316L Flanges:

• Weld Neck Flanges: Ideal for high-pressure applications and critical connections.
• Slip-On Flanges: Easy to install and suitable for lower-pressure applications.
• Socket Weld Flanges: Used for smaller-diameter piping systems.
• Blind Flanges: For sealing off piping ends or pressure vessel openings.
• Threaded Flanges: Used in low-pressure, non-welded systems.
• Lap Joint Flanges: Suitable for systems requiring frequent assembly and disassembly.

Benefits:

• High Durability: Withstands extreme temperatures and pressures.
• Versatility: Compatible with a variety of piping systems and fluid types.
• Cost-Effective: Reduced maintenance and long service life lead to lower operational costs.

Standards and Specifications:

• ASTM A182: This standard covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves for high-temperature service.
• ANSI/ASME B16.5: Dimensions for flanges.
• Pressure Ratings: Available in multiple pressure classes (e.g., Class 150, 300, 600, etc.).
