ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger

ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger

  • ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger
  • ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger
  • ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger
ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP304L
Payment & Shipping Terms:
Minimum Order Quantity: 500kgs
Price: Negotiable
Packaging Details: Ply-wooden Case / Iron Case
Delivery Time: Depending on QTY
Payment Terms: T/T, L/C at sight
Supply Ability: 100 tons per month
Contact Now
Detailed Product Description
Product Name: Stainless Steel U Bend Tube Standard: ASTM A213
Material Grade: TP304L Length: Single, Random
Technique: Cold Rolled And Cold Drawn NDT: HT, ET, UT Etc.
Highlight:

ASTM A213 TP304L stainless steel tube

,

U bend heat exchanger tube

,

stainless steel heat exchanger tube

ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger





ASTM A213 TP304L is a specification for seamless and welded austenitic stainless steel tubes, designed for high-temperature and corrosion-resistant environments. The "TP304L" grade is a low-carbon version of 304 stainless steel, providing enhanced weldability and resistance to intergranular corrosion.

The U Bend Tubes are widely used in heat exchangers, condensers, boilers, and other applications where heat transfer efficiency is critical.





Key Features:

  • Material Composition:

    • Chromium (18–20%): Provides excellent corrosion and oxidation resistance.
    • Nickel (8–12%): Enhances toughness and ductility.
    • Low Carbon Content: Prevents carbide precipitation during welding, reducing the risk of intergranular corrosion.
  • Corrosion Resistance:

    • Superior resistance to general corrosion, pitting, and crevice corrosion in chloride-rich environments.
    • Suitable for use in chemical processing, marine, and petrochemical industries.
  • High-Temperature Strength:

    • Can withstand elevated temperatures without significant deformation or loss of mechanical properties.
  • Dimensional Precision:

    • Manufactured with strict tolerances to ensure proper fit in heat exchangers and condensers.





Applications:

  • Heat Exchangers
  • Condensers
  • Power Generation Plants
  • Chemical Processing Equipment
  • Oil and Gas Industry
  • Desalination Plants





Advantages of U Bend Tubes:

  • Compact Design: The U-bend configuration allows for efficient use of space in heat exchangers.
  • Improved Heat Transfer: Maximizes contact area for heat exchange between fluids.
  • Durability: Resistant to cracking, corrosion, and thermal stress.





Mechanical Properties of TP304L Stainless Steel

Property Value
Tensile Strength (UTS) ≥ 485 MPa (70,000 psi)
Yield Strength (0.2% offset) ≥ 170 MPa (25,000 psi)
Elongation (in 50 mm) ≥ 35%
Hardness ≤ 90 HRB (Rockwell B)
Modulus of Elasticity ~193 GPa (~28,000 ksi)
Density ~8.0 g/cm³ (~0.289 lb/in³)
Melting Point ~1400–1450 °C (~2550–2650 °F)





Specifications:

  • Standard: ASTM A213
  • Grade: TP304L
  • Manufacturing Process: Seamless or welded
  • Surface Finish: Annealed, pickled, or polished
  • Bend Radius: Customizable based on the application
  • Dimensions: Outer diameter, wall thickness, and length as per customer requirements.

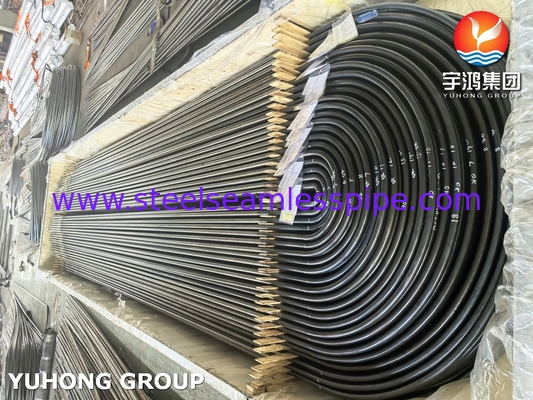

ASTM A213 TP304L Stainless Steel U Bend Tube For Heat Exchanger 0
