ASME SB163 N04400 Monel 400 Nickel Alloy Condenser and Heat Exchanger Tube

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASME SB163 N04400

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	Negotiable
Packaging Details:	Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap
Delivery Time:	5 - 90 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	According to Clients' Requirement

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (156)

Fin Tube (703)

Heat Exchanger (28)

Heat Exchanger Tube (458)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (101)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (860)

Steel Flange (659)

Others (404)

Cladding Parts (8)

Detailed Product Description

Standard:	ASME SB163	Material Grade:	N02200 N02201 N06600 N06601 N06625 N04400
Type:	Seamless,PE	Outer Diameter:	6.35-609.6mm
Technique:	Cold Rolled Hot Rolled	Application:	Construction,Heat Exchanger,oil And Gas,Industry,boiler
Highlight:	ASME SB163 N04400 nickel alloy tube , nickel alloy heat exchanger tube , seamless nickel alloy pipe

ASME SB163 N04400 Monel 400 Nickel Alloy Condenser and Heat Exchanger Tube

ASME SB163 UNS N04400 Monel 400 nickel alloy seamless tube is a high-performance nickel-copper alloy pipe manufactured in strict compliance with the international ASME SB163 standard.

It is made from the renowned Monel 400 (UNS N04400) alloy, renowned for its excellent corrosion resistance to seawater, salt spray, sulfuric acid, and hydrofluoric acid.

Through its seamless forming process, this pipe features seamless welds, a uniform structure, and strong pressure-bearing capacity. This ensures high reliability and safety in high-pressure, high-temperature, or highly corrosive environments. Therefore, it is widely used in piping systems, heat exchangers, and core equipment components in critical sectors such as offshore engineering, shipbuilding, chemical processing, and the energy industry.

ASTM B163 UNS N04400 Chemical Composition

ASTM B163 UNS N04400 is a nickel-copper alloy containing more than 63.0% nickel and 28.0-34.0% copper content, it can be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments. EN equivalent is WNR 2.4360.

Alloy	Nickel	Copper	Manganese	Iron	Sulfur	Carbon	Silicon	Chromium
UNS N04400	63.0 min	28.0 – 34.0	2.0 max	2.5max	0.024 max	0.3max	0.5	…

ASTM B163 UNS N04400 Mechanical Properties

Material and Condition	Tensile Strength Min. Ksi(MPa)	Yield Strength(0.2% Offset)Min,Ksi(MPa)	Elongation in 2in. or 50mm(or 4D)min. %	Rockwell Hardness(or Equivalent) for Annealed Ends[Note(1)]
Stress-relieved Alloy UNS N04400:	85(586)	55(379)	15	B75max

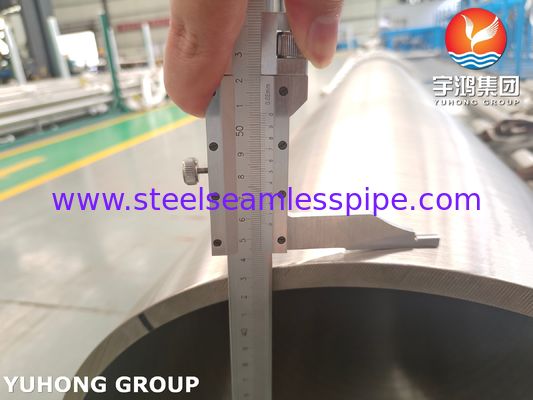

Tolerances In Outside Diameter And Wall Thickness

Material	Nominal Outside Diameter, In. (Mm)	Permissible Variations [Note(1)]
		Outside Diameter, In. (Mm)		Wall Thickness, %
		Outside Diameter, In. (Mm)		Anerage Wall		Minimum Wall
		+	–	+	–	+	–
UNS N02200, UNS N02201, And UNS N04400	Average Wall	0.005(0.13)	0	12.5	12.5	25.0	0
	8/5 To 1 1/2(15.9 To 38.1), Incl	0.005(0.13)	0.005(0.13)	10.0	10.0	20.0	0
	Over 1 1/2 To 3(38.1 To 76.2), Incl	0.010(0.25)	0.010(0.25)	10.0	10.0	22.0	0
UNS N06600, UNS N066090, UNS N06045, UNS N06025, UNS N08800, UNS N08810, UNS N08811, UNS N08801, And UNS N08825	1/2 To 5/8 (12.7 To 15.9), Excl	0.005(0.13)	0.005(0.13)	12.5	12.5	25.0	0
	8/5 To 1 1/2 (15.9 To 38.1), Incl	0.0075(0.19)	0.0075(0.19)	10.0	10.0	20.0	0
	Over 1 1/2 To 3 (38.1 To 76.2), Incl	0.010(0.25)	0.010(0.25)	10.0	10.0	22.0	0

Application

ASME SB163 UNS N04400 Monel 400 nickel alloy seamless tube is primarily used in harsh environments requiring excellent corrosion resistance and high mechanical strength. Its seamless structure ensures the tube's integrity under pressure.

Its excellent performance in saltwater and acidic conditions makes it a key material in the marine and offshore industries, used in components such as propeller shafts, pump shafts, seawater valves, and heat exchanger tubes on ships and platforms.

In the chemical processing industry, it is an essential material for handling sulfuric acid, hydrofluoric acid, alkalis, and solvents, and is used in reactors, distillation columns, and process piping systems. Furthermore, its ability to maintain strength across a wide temperature range, from cryogenic to high temperatures, extends its reliability to wellhead components and crude oil pipelines in oil and gas production, feedwater heaters and evaporator tubes in power generation, and fuel and hydraulic lines in aerospace.

ASME SB163 N04400 Monel 400 Nickel Alloy Condenser and Heat Exchanger Tube 0
