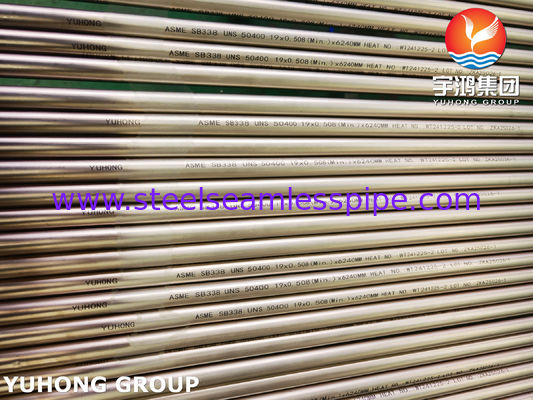

Name: ASME SB338 Grade2 Ti2 UNS R50400 Pure Titanium Seamless Tube
Brand: Yuhong Group Co.,Ltd
SKU: ASME SB338 UNS R50400
Price: 500,000.00 USD
Availability: InStock

Yuhong Holding Group Co.,LTD

English

Home

Products

About Us

Factory Tour

Quality Control

Company News

Home Products Titanium Tube

ASME SB338 Grade2 Ti2 UNS R50400 Pure Titanium Seamless Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ISO, SGS, BV, ISO&SGS, ISO/CE/SGS
Model Number:	ASME SB338 UNS R50400

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	5-80 Days
Payment Terms:	L/C, T/T
Supply Ability:	1500tons/month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Certification:	ISO, SGS, BV, ISO&SGS, ISO/CE/SGS	Standard:	ASTM,AISI,GB,DIN,JIS
Steel Grade:	Gr.2 UNS R50400	Type:	Seamless,Welded,round Pipe / Tube
Outer Diameter:	Customized	Thickness:	Customized
Length:	3000-6000mm, Customized	Technique:	Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them
Highlight:	ASME SB338 titanium seamless tube , Grade 2 titanium tube , UNS R50400 pure titanium tube

ASME SB338 Grade2 Ti2 UNS R50400 Pure Titanium Seamless Tube

Description

ASME SB338 is the specific standard titled "Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers." While originally for heat exchangers, tubes made to this standard are used in many other critical applications.

Grade 2 is unalloyed titanium, known for its excellent corrosion resistance, good ductility, and moderate strength.

UNS R50400 as the Unified Numbering System code that uniquely identifies this specific material composition, corresponds directly to ASTM Grade 2 titanium.

Chemical Composition of ASTM B338 GRAE 2 Titanium Tubes

Element	Chemical Composition %
Element	Grade 1	Grade 2	Grade 3	Grade 5	Grade 7	Grade 9	Grade 11	Grade 12	Grade 23
Nitrogen, max	0.03	0.03	0.05	0.05	0.03	0.03	0.03	0.03	0.03
Carbon, max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
Hydrogen, max	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.0125
Iron, max	0.20	0.30	0.30	0.40	0.30	0.25	0.20	0.30	0.25
Oxygen, max	0.18	0.25	0.35	0.20	0.25	0.15	0.18	0.25	0.13
Aluminum	…	…	…	5.5-6.75	…	2.5-3.5	…	…	5.5-6.5
Vanadium	…	…	…	3.5-4.5	…	2.0-3.0	…	…	3.5-4.5
Tin	…	…	…	…	…	…	…	…	…
Ruthenium	…	…	…	…	…	…	…	…	…
Palladium	…	…	…	…	0.12-0.25	…	0.12-0.25	…	…
Molybdenum	…	…	…	…	…	…	…	0.2-0.4	…
Chromium	…	…	…	…	…	…	…	…	…
Nickel	…	…	…	…	…	…	…	0.6-0.9	…
Niobium	…	…	…	…	…	…	…	…	…
Ziconium	…	…	…	…	…	…	…	…	…
Silicon	…	…	…	…	…	…	…	…	…
Residuals, max each	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Residuals, max total	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Titanium	balance	balance	balance	balance	balance	balance	balance	balance	balance

ASTM B338 Grade 2 Tensile Strength of Titanium Tubes

Grade	Tensile Strength, min		Yield Strength (0.2% Offset)				Elongation 2 in. or 50 mm
			min		max		Elongation 2 in. or 50 mm
	Ksi	(Mpa)	Ksi	(Mpa)	Ksi	(Mpa)	gage length min %
Grade 1	35	(240)	25	(170)	45	(310)	24
Grade 2	50	(345)	40	(275)	65	(450)	20
Grade 3	65	(450)	55	(380)	80	(550)	18
Grade 5	130	(895)	120	(828)	…	…	10
Grade 7	50	(345)	40	(275)	65	(450)	20
Grade 9	90	(620)	70	(483)	45	…	15
Grade 11	35	(240)	25	(170)	…	(310)	24
Grade 12	70	(483)	50	(345)	…	…	18
Grade 23	120	(828)	110	(759)	…	…	10

Applications

Heat Exchangers & Condensers: The primary application in the standard's title. Used in chemical processing, power generation (especially offshore platforms), and desalination plants.

Chemical & Petrochemical Processing: For piping systems, reactors, and vessels handling corrosive chemicals.

Marine & Offshore: For seawater piping, ballast systems, and other components exposed to saltwater.

Aerospace: For hydraulic and pneumatic systems, and airframe components where weight savings are critical.

Medical & Pharmaceutical: For implants, surgical instruments, and processing equipment due to its biocompatibility.
