ASME SA105 Ring And Disc Carbon Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK
Model Number:	ASME SA105

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	NEGOTIABLE
Packaging Details:	Water proof and Seaworthy Package
Delivery Time:	7 DAYS
Payment Terms:	LC, TT
Supply Ability:	According To Client's Request

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Product Name:	Forged Disc	Standard:	ANSI, ASTM, ASME, JIS, DIN, EN
Material:	ASME SA105	Packing:	Water Proof And Seaworthy Package
Thicknees:	Customizable	Iso:	Yes
Highlight:	ASME SA105 carbon steel ring , ASME SA105 carbon steel disc , carbon steel ring and disc

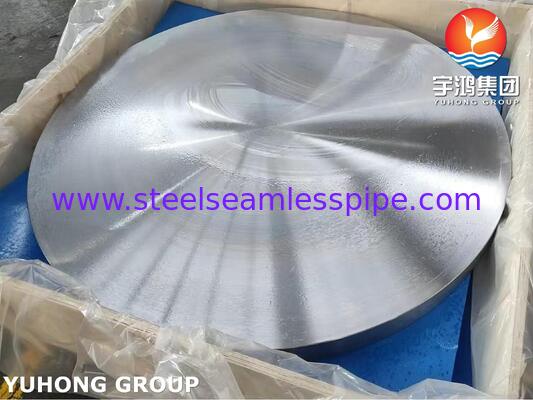

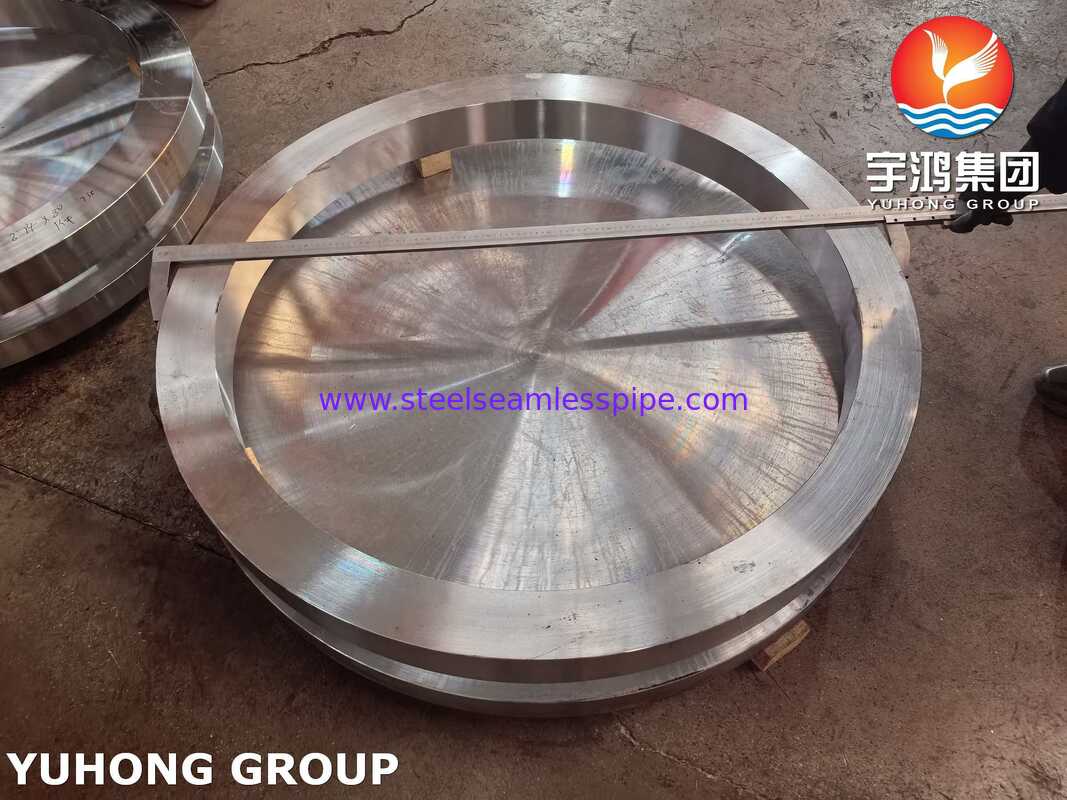

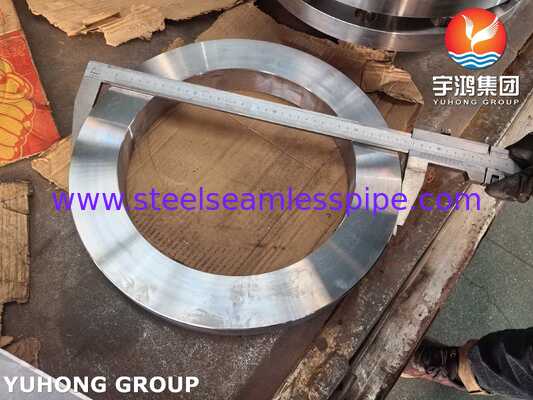

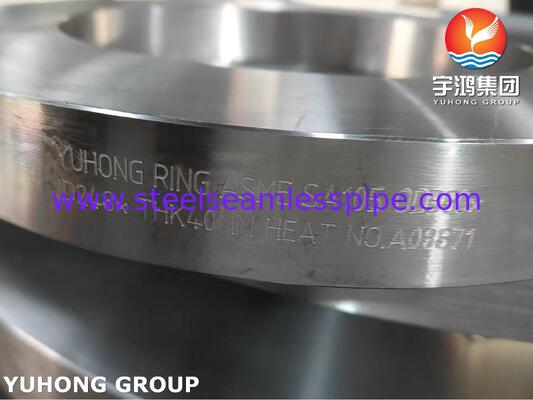

ASME SA105 Ring And Disc

ASME SA105 specifies Rings (circular forgings) and Discs (disc forgings) as high-performance blanks for manufacturing critical connections and seals in industrial piping systems and pressure vessels.

Rings serve as joints for reliable connections and seals; while Discs are machined into blind flanges, bonnets, or tube sheets, acting as plugs and sealing caps at system ends or openings. These forged components, with their excellent density, strength, and toughness, form the structural foundation ensuring the safe, leak-free operation of the entire system under high pressure and high temperature.

Flanges A105 Material Chemical Standard

ELEMENT	COMPOSITION, %
Carbon	0.35 max
Manganese	0.60-1.05
Phosphorus	0.035 max
Sulfur	0.040 max
Silicon	0.10-0.35
Copper	0.40 max (1)
Nickel	0.40 max (1)
Chromium	0.30 max (1-2)
Molybdenum	0.12 max (1-2)
Vanadium	0.08 max

ASTM A105 Flanges Mechanical Properties

Mechanical Properties	Requirements
Tensile strength,min,psi [MPa]	70000 [485]
Yield strength,min,psi [MPa]	36000 [250]
Elongation, min, %	30
Reductionofarea,min,%	30
Hardness,HB,max	187
