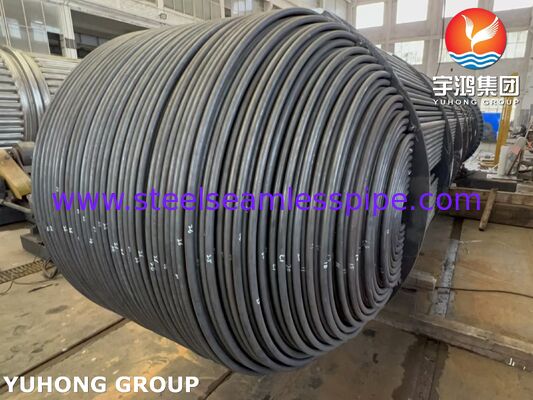

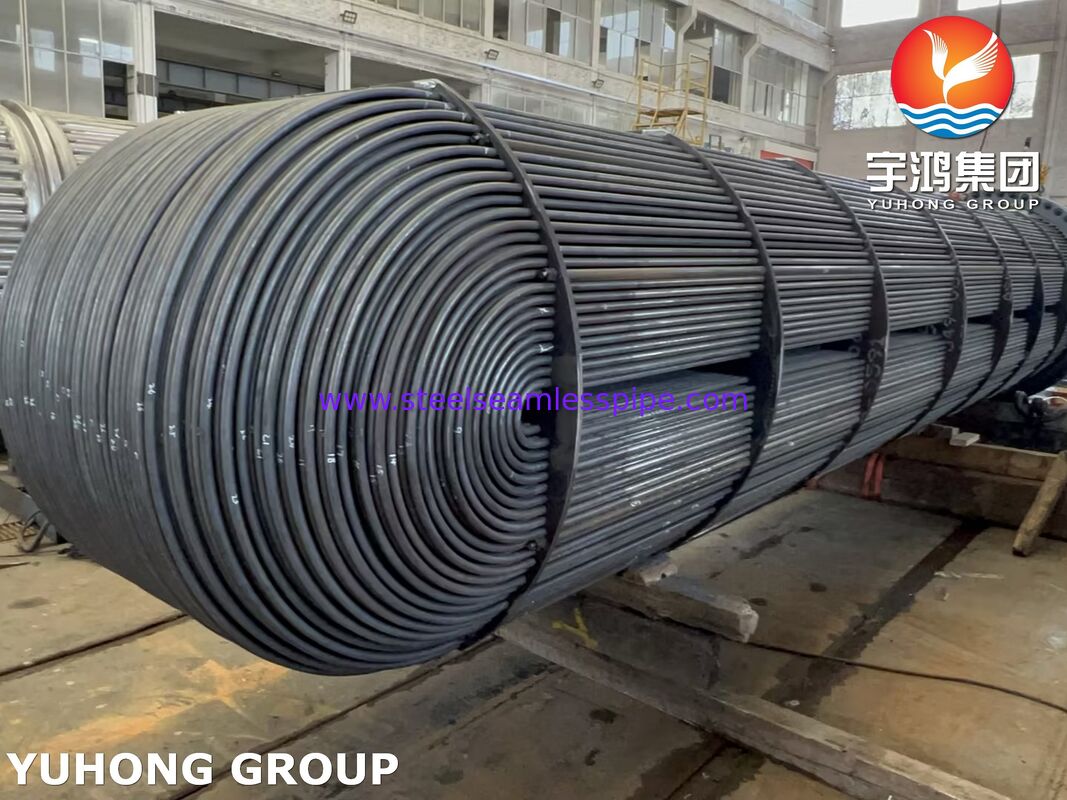

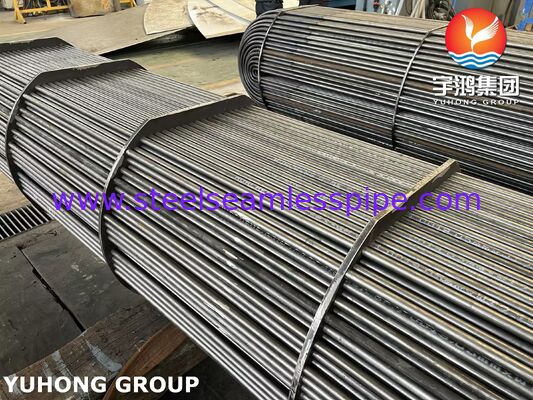

Carbon Steel Heat Exchanger Tube Bundle with ASME SA179 Tubes and SA266 Gr.2 Tubesheet for ASME Code Construction

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME, TEMA
Model Number:	CFU

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	1--1000000 USD
Packaging Details:	PALLET/RAIN COVER AND MESH BAG
Delivery Time:	45-150 Days
Payment Terms:	T/T,L/C
Supply Ability:	50 SETS/MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Highlight:

ASME SA179 Carbon Steel Heat Exchanger Tube Bundle

SA266 Gr.2 Tubesheet Heat Exchanger Tube Bundle

High-Efficiency Shell & Tube Heat Exchanger

Carbon Steel Heat Exchanger Replacement Bundle

ASME SA179 Tubes & SA266 Gr.2 Tubesheet | ASME Code Construction

Precision-engineered replacement components designed for demanding thermal systems. Our expertise encompasses custom shell and tube heat exchangers, pressure vessels, and comprehensive replacement parts including tube bundles, U-tubes, heat exchanger tubes (finned and bare), and essential components like tubesheets, baffles, and heads.

High-Efficiency ASME Carbon Steel Tube Bundle

This tube bundle is designed as a direct, drop-in core replacement to restore or enhance the performance of your existing shell and tube heat exchanger. Utilizing ASME SA179 seamless cold-drawn low-carbon steel tubes for optimal heat conduction and paired with a rugged ASME SA266 Grade 2 carbon steel tubesheet, this assembly ensures reliable operation under standard pressure and temperature conditions in non-corrosive or mildly corrosive services.

Bundle Configuration & Material Breakdown

Component	Primary Material Specification	Function & Key Benefit
Heat Exchanger Tubes	ASME SA179	Seamless low-carbon steel tubes provide excellent heat transfer and mechanical strength
Tubesheet	ASME SA266 Grade 2	Forged carbon steel plate offering high integrity for tube anchoring and pressure boundary
Baffles	Typically ASME SA516 Gr. 70	Directs shell-side flow across tubes, enhancing thermal efficiency and providing structural support
Tie Rods & Spacers	Carbon Steel (e.g., SA193 B7)	Maintains precise baffle alignment and overall bundle rigidity during operation
Header / End Closure	ASME SA105 or SA350 LF2	Forged steel components for secure tube-side or shell-side fluid containment

Core Value & Design Advantages

Rapid System Restoration: Engineered to match original equipment dimensions and layout, enabling swift installation and minimizing costly process downtime during maintenance or upgrades
Optimized Thermal Hydraulics: Tube arrangement and baffle design maximize heat transfer rates while maintaining acceptable shell-side pressure drop for energy-efficient operation
Built-to-Order Customization: Each bundle manufactured to specific requirements including tube count, pitch, layout, and baffle cut percentage for perfect fit
Rigorous Quality Assurance: Components sourced with full material traceability (MTC), with final assembly undergoing thorough dimensional inspection to meet specified tolerances

Typical Industrial Applications

This reliable carbon steel tube bundle is widely used across various sectors for duties involving clean or treated fluids:

HVAC Systems: For heating and cooling water circuits
Power Generation: In lube oil coolers and general service heat exchangers
Industrial Processing: For process water heating/cooling, compressor aftercoolers, and hydraulic oil cooling
Marine Applications: In central cooling freshwater systems

Get Your Customized Solution

For a reliable and efficient replacement tube bundle for your heat exchanger, please provide equipment drawings or technical specifications. Contact us at jimmy@steelseamlesspipe.com for detailed technical advice and a quote.
