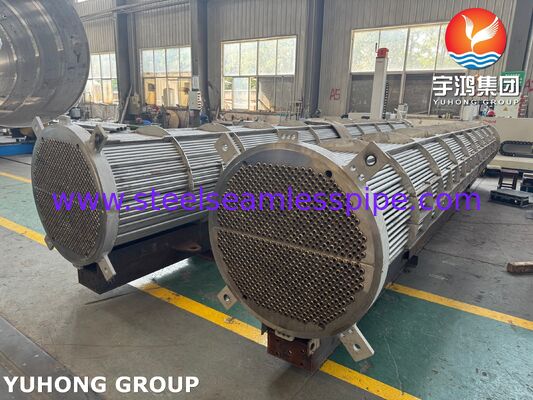

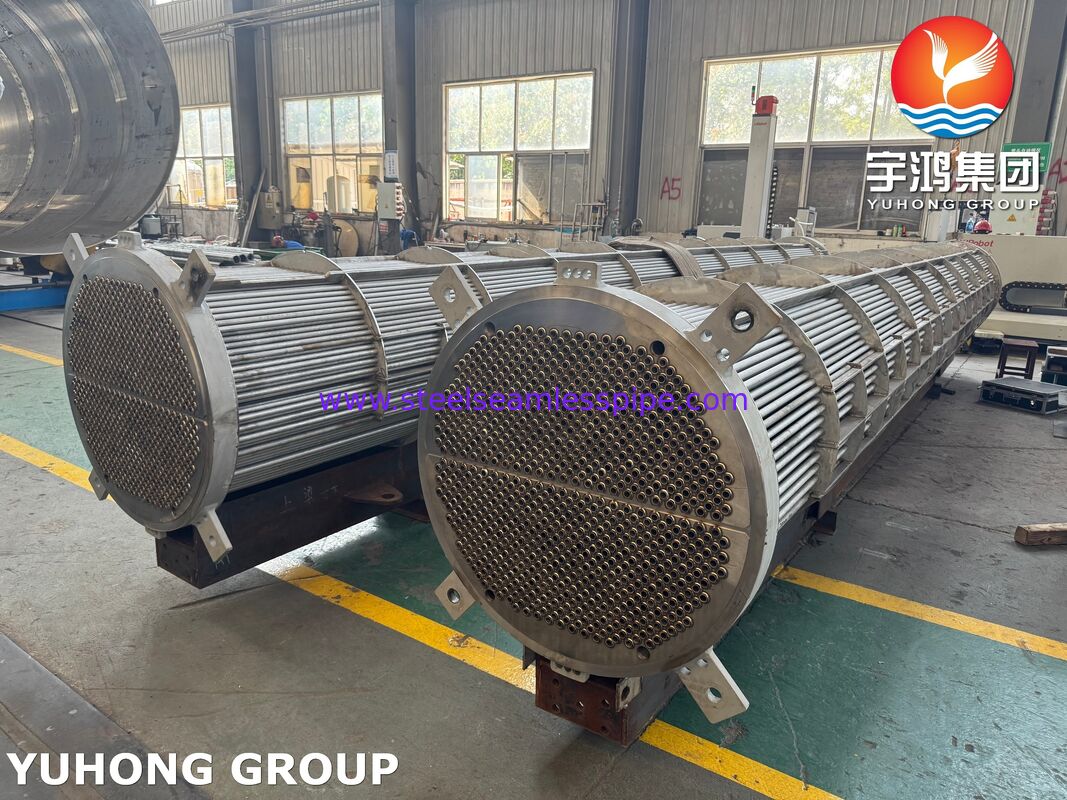

Name: ASME SA213 TP316L Stainless Steel Heat Exchanger Tube Bundle with Corrosion Resistant Design for Direct Replacement Core
Brand: Yuhong Group Co.,Ltd
SKU: ASME SA213 TP316L
Price: 500,000.00 USD
Availability: InStock

Yuhong Holding Group Co.,LTD

English

Home

Products

About Us

Factory Tour

Quality Control

Company News

Home Products Stainless Steel Seamless Pipe

ASME SA213 TP316L Stainless Steel Heat Exchanger Tube Bundle with Corrosion Resistant Design for Direct Replacement Core

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME, TEMA
Model Number:	ASME SA213 TP316L

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	1--1000000 USD
Packaging Details:	PALLET/RAIN COVER AND MESH BAG
Delivery Time:	45-150 Days
Payment Terms:	T/T,L/C
Supply Ability:	50 SETS/MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Highlight:

ASME SA213 TP316L Heat Exchanger Tube Bundle

Corrosion Resistant Tube Bundle

Low-Carbon Stainless Steel Shell & Tube Replacement Core

ASME SA213 TP316L Stainless Steel Heat Exchanger Tube Bundle

Direct replacement core with corrosion resistant design for shell and tube heat exchangers.

Yuhong Holding Group: Delivering Reliability in Heat Transfer

Yuhong Holding Group Co., Ltd. is a trusted manufacturer and global supplier of engineered thermal equipment. We provide robust shell and tube heat exchangers, pressure vessels, and a comprehensive selection of precision replacement components. Our expertise extends to tube bundles, U-tubes, heat exchanger tubes (including finned tubes), and all critical spare parts such as tubesheets, baffles, and channel heads.

Product Overview: High-Performance TP316L Tube Bundle

This ASME SA213 TP316L stainless steel tube bundle is engineered as a direct-fit, high-efficiency core for shell and tube heat exchangers. Fabricated from low-carbon 316L stainless steel seamless tubes, it delivers superior resistance to a broad spectrum of corrosive media, including chlorides and organic acids, ensuring extended service life and reliable operation in demanding processes.

Component Breakdown & Material Specifications

Core Component	Governing Standard / Typical Specification	Function & Technical Merit
Heat Exchanger Tubes	ASME SA213 TP316L	Seamless tubes offering excellent corrosion resistance, weldability, and formability due to low carbon content.
Tubesheet	Common: SA182 F316L	Forged stainless steel ensures compatible thermal expansion and superior weld integrity with tubes.
Baffles	Common: SA240 316L	Engineered to optimize fluid flow patterns (segmental, helical, etc.) for maximum heat transfer and structural support.
Tie Rods & Spacers	Stainless Steel (Grade 316)	Maintain precise baffle alignment and overall bundle rigidity under operational stress.
Nozzles / Connections	Typical: SA182 F316L	Provide leak-proof connections for tube-side or shell-side fluid inlet/outlet.

Quality Assurance & Testing Protocol

Material Traceability: All primary components are supplied with complete Mill Test Certificates (MTCs) compliant with ASME requirements, ensuring full chemical and mechanical property traceability.
Dimensional Precision: Each bundle is manufactured to match customer-provided drawings or sample dimensions, guaranteeing a perfect fit within the existing exchanger shell.

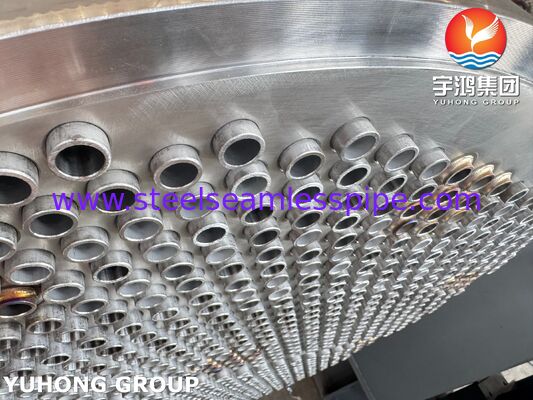

Leak-Tight Integrity: Tube-to-tubesheet joints are executed using precision expansion and/or welding techniques, followed by inspection to ensure leak-proof performance.

Comparative Advantage & Selection Guidance

Versus Carbon Steel: Offers dramatically enhanced corrosion resistance in environments where water treatment may vary or where process contamination is a concern, preventing premature failure.
Versus Standard 304/304L: The addition of molybdenum in TP316L provides significantly better resistance to pitting and crevice corrosion in chloride-containing services, a critical factor for cooling water applications.
Lifecycle Value: While the initial investment may be higher than carbon steel, the extended service intervals and reduced risk of unplanned downtime offer a lower total cost of ownership for corrosive services.

Key Applications & Industries Served

This versatile TP316L tube bundle is ideally suited for:

Chemical & Pharmaceutical Processing: Reactor temperature control, solvent heating/cooling.
Food & Beverage Production: Sanitary heat exchange applications requiring cleanability and corrosion resistance.
Marine & Offshore Systems: Closed-loop cooling circuits, lube oil coolers.
General Industrial Cooling: Where cooling water contains moderate chloride levels.

Initiate a Project-Specific Solution

For a reliable, corrosion-resistant replacement tube bundle engineered to your exact specifications, contact our technical sales team. Provide your exchanger data or process conditions to jimmy@steelseamlesspipe.com for a detailed quotation and technical data sheet.
