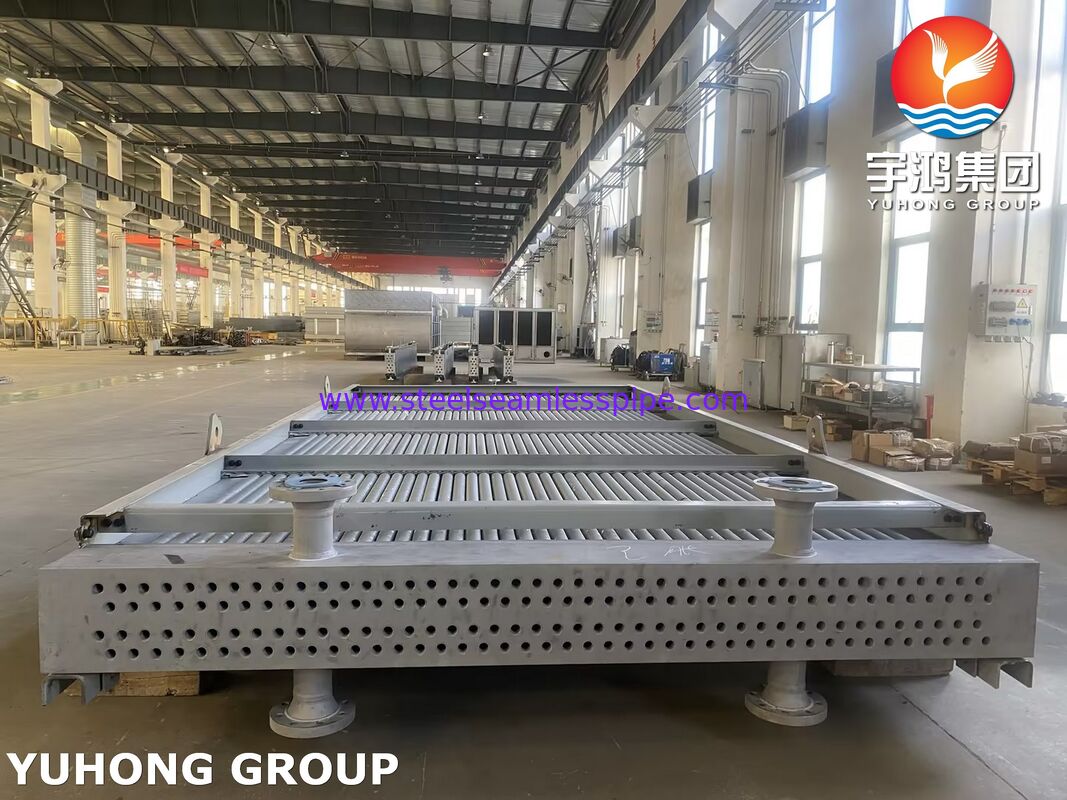

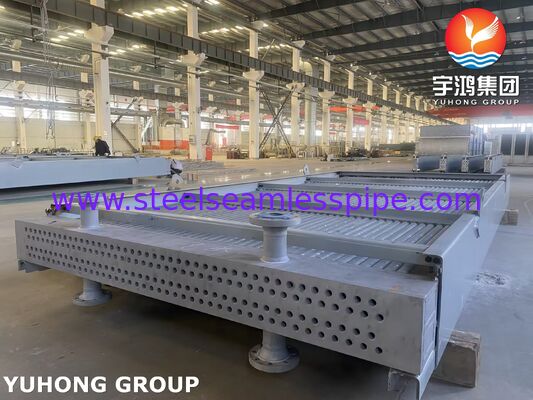

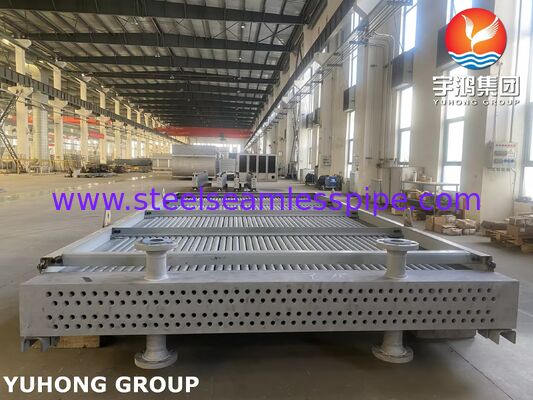

Name: Monel 400 Air Cooler Tube Bundle with Extruded Aluminum Fins and ASME SB163 Seamless Tubes
Brand: Yuhong Group Co.,Ltd
SKU: ASME SB163 Monel 400
Price: 500,000.00 USD
Availability: InStock

Yuhong Holding Group Co.,LTD

English

Home

Products

About Us

Factory Tour

Quality Control

Company News

Home Products Heat Exchanger Tube Bundle

Monel 400 Air Cooler Tube Bundle with Extruded Aluminum Fins and ASME SB163 Seamless Tubes

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	ASME SB163 Monel 400

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	1--1000000 USD
Packaging Details:	PALLET/RAIN COVER AND MESH BAG
Delivery Time:	45-150 Days
Payment Terms:	T/T,L/C
Supply Ability:	50 SETS/MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Highlight:

ASME SB163 Monel 400 Seamless Air Cooler Tube Bundle

A1060 Aluminum Extruded Fins Air Cooler Tube Bundle

High-Corrosion Resistance Heat Exchanger Tube Bundle

Monel 400 Air Cooler Tube Bundle with Extruded Aluminum Fins

ASME SB163 Seamless Tubes | A1060 Fin Construction

Yuhong Holding Group: Advanced Cooling Solutions

As a specialized manufacturer within Yuhong Holding Group, we deliver engineered thermal management systems, including custom air coolers (fin-fan), shell & tube heat exchangers, and pressure vessels. We are also a leading supplier of high-performance replacement cores and components, such as complete air cooler tube bundles, finned tubes, and all related mechanical parts.

Corrosion-Resistant Monel 400 Finned Bundle

Designed for maximum durability in aggressive environments, this air cooler tube bundle combines the exceptional corrosion resistance of Monel 400 (Alloy 400) seamless tubes with the high thermal efficiency of extruded A1060 aluminum fins. This construction makes it the preferred choice for cooling services where standard materials fail prematurely due to corrosion from seawater, acidic vapors, or chemical exposure.

Construction & Component Specifications

Primary Component	Material & Standard	Key Characteristics & Purpose
Heat Transfer Tubes	ASME SB163 / Monel 400 (UNS N04400)	Nickel-copper alloy tubes offering outstanding resistance to seawater, acids, and alkaline solutions.
Fins	A1060 Aluminum / Extruded Type	High-purity aluminum fins mechanically bonded to tubes, optimizing air-side heat transfer.

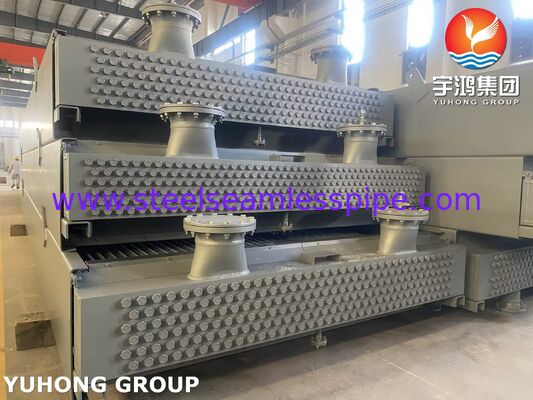

Header / Manifold Box	Carbon Steel (coated), Stainless Steel, or Monel	Distributes process fluid through the tube rows; material selected for service compatibility.
Side Frames	Galvanized Carbon Steel or Stainless Steel	Provides structural support and defines the airflow plenum for the bundle.
Nozzle Connections	Forged to match Header material (e.g., SA182 F44)	Inlet and outlet connections for the process fluid circuit.

Technical Superiority & Engineering Merits

Unmatched Material Performance: Monel 400 retains strength and resists corrosion in freshwater, seawater, and hydrofluoric acid environments where stainless steels are unsuitable. The extruded fin process creates a durable, integral fin-to-tube bond with excellent heat conduction.
Optimized for Harsh Climates: The bundle is engineered to perform reliably in coastal or industrial atmospheres with high salinity or pollutant levels, significantly extending service intervals.
Robust Mechanical Design: The construction resists damage from thermal cycling and airflow vibration, maintaining long-term fin contact and thermal efficiency.
Custom Configuration Capability: We tailor bundle dimensions, tube layout, fin density (fins per inch), and header design to meet specific thermal duty, space, and aerodynamic requirements.

Primary Applications & Operational Benefits

This specialized bundle is critical for operational continuity in:

Offshore Oil & Gas: Seawater-cooled condensers and process coolers on platforms and FPSOs.
Chemical Processing: Cooling of corrosive process streams and acid vapor condensation.
Marine & Naval: Shipboard cooling systems exposed to seawater spray.
Power & Desalination: Auxiliary cooling in harsh environmental conditions.

Value Delivered

Reduced Lifecycle Cost: Minimizes frequent replacements and unplanned downtime.
Maintained Efficiency: Stable fin-tube contact preserves heat transfer rates over time.
System Reliability: Provides a robust solution for critical cooling loops where failure is not an option.

Request a Technical Data Sheet

To specify a high-integrity cooling bundle for your corrosive service, contact our engineering team. Send your process parameters or existing bundle details to jimmy@steelseamlesspipe.com for a precise design proposal and quotation.
