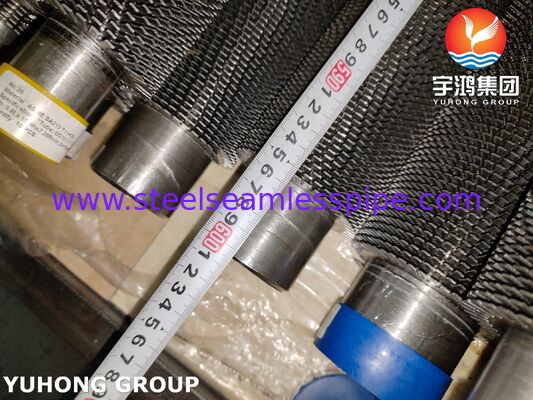

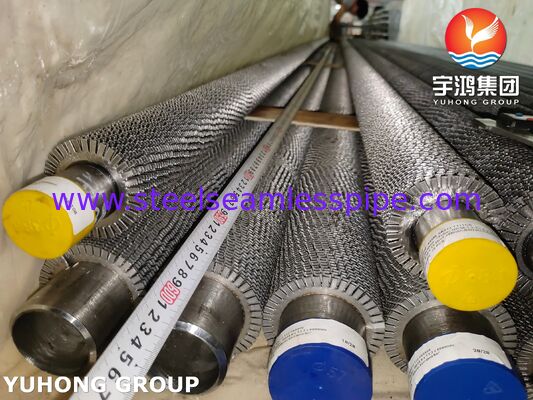

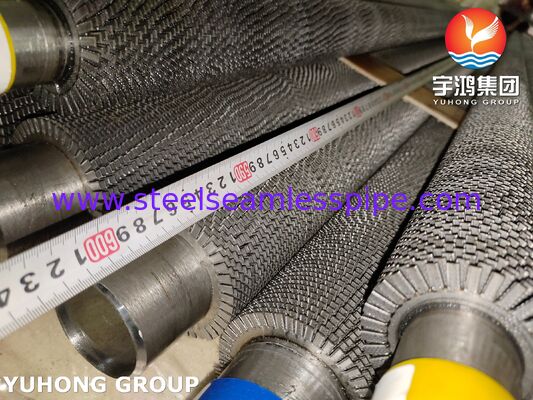

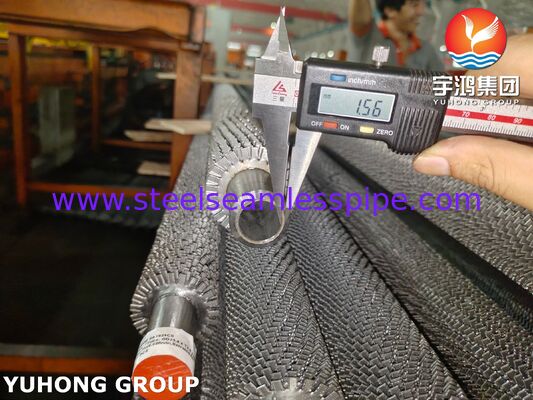

Serrated Finned Tubes | High Frequency Welded | T22 Base Tube & CS Fins for HRSG / Boiler

High-Frequency Welded Serrated Finned Tubes Base Tube: T22 Alloy Steel | Fins: Carbon Steel (CS)

T22-CS Synergy: Advanced Heat Transfer Solution

Our high-frequency welded serrated finned tubes combine T22 alloy steel base tubes with carbon steel (CS) fins for

 unmatched thermal efficiency in extreme environments. The T22 base tube delivers superior high-temperature strength

 (up to 550°C), while CS fins maximize heat dissipation through serrated edges that disrupt boundary layers. Ideal for

 boilers, HRSGs, and waste-heat recovery systems.

Precision Chemistry: T22 & CS Composition

Optimized for Corrosion Resistance and Thermal Conductivity

Notes: T22 resists oxidation in steam environments; CS fins enhance thermal conductivity (45–50 W/m·K).

T22-CS Dimensional Tolerances: Engineered Accuracy

Guaranteed Fit for Critical Applications

T22-CS Application Domains

1. Power Generation: Boiler economizers (coal/gas-fired plants), air preheaters.

1. Petrochemical: Waste-heat recovery in reformers & crackers (operating temp: 400–550°C).

1. Marine: Exhaust gas boilers for LNG carriers.

1. Industrial HVAC: High-efficiency heat exchangers in chemical processing.

Customization: T22-CS Tailored Solutions

• Dimensions: Base tubes: 25–150 mm OD; Fin heights: 10–20 mm; Lengths: ≤20m.

• Fin Configurations: Serrated (standard), solid, or L-footed fins.

• Coatings: Hot-dip galvanizing (fin-only) or aluminizing for acid gas resistance.

• Certifications: EN 10204 3.1, ASME Section I compliance.

Why Our T22-CS Finned Tubes?

✅ 15+ Years Expertise: 500+ projects in power/petrochemical sectors.

✅ Zero-Gap Welding: High-frequency welding ensures >98% fin bond integrity (tested per ASTM E290).

✅ Quality Assurance: 100% eddy-current testing, hydrostatic pressure checks (60 bar min).

✅ Lead Time: 30 days for standard orders; 45 days for custom specs.

✅ Global Compliance: CE, PED, and ASME stamps available.
