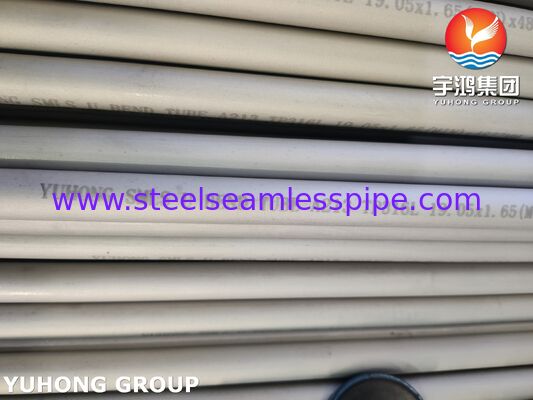

ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications

ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications

  • ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
  • ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
  • ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
  • ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
  • ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
  • ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A213 TP316L
Payment & Shipping Terms:
Minimum Order Quantity: 100KG
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10-30 Days
Payment Terms: T/T,L/C
Supply Ability: 1000T /Month
Contact Now
Detailed Product Description
Standard: ASTM A213 / ASME SA213 Material: TP316L (UNS S31603), Austenitic
Type: Seamless (SMLS) Stainless Steel Tube OD(Outside Diameter): 6mm – 159mm
WT(Wall Thickness): 1.0mm – 10mm, SCH 10S – SCH 80S Length: 6m Or Cut-to-Length
Ends: Plain End (PE), Beveled End (BE) Applications: Heat Exchangers, Boilers, Condensers, Chemical Processing, High Temp/Corrosion Service
Highlight:

ASTM A213 TP316L stainless steel pipe

,

seamless stainless steel pipe industrial grade

,

high corrosion resistance stainless steel pipe

  • Material & Standard:ASTM A213 TP316L stainless steel, low carbon molybdenum-containing austenitic stainless steel, compliant with international industrial pipe standards, with stable chemical composition and mechanical properties.
  • Structure & Process:Cold drawn/hot rolled seamless pipe, no welding seam, uniform wall thickness, smooth inner/outer surface, precision processed to ensure high pressure and impact resistance.
  • Key Performance:Excellent corrosion resistance (especially to chloride ion pitting corrosion), good high/low temperature toughness, non-magnetic, and easy to weld and process for various industrial fabrication.
  • Specifications:Customizable outer diameter (OD: 6mm-630mm), wall thickness (WT: 1mm-50mm), length (6m/12m fixed or cut-to-length as required); surface finish: pickled & passivated (default), polished, sandblasted optional.
  • Application Scenarios:Widely used in chemical, petroleum, food and beverage, pharmaceutical, marine engineering, heat exchange systems and other industries for conveying corrosive media, high-temperature steam and pure fluids.


Quality Inspection Items & Standards
Inspection Stage Inspection Stage Inspection Standard Inspection Method / Report

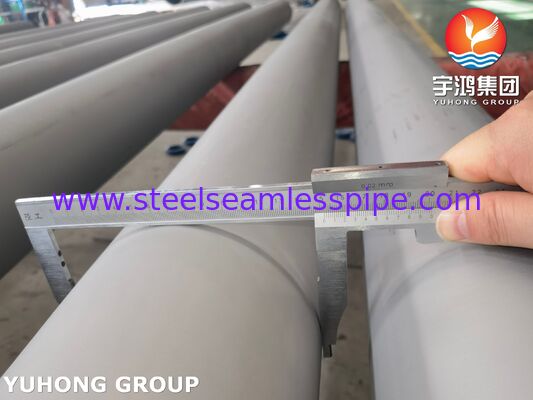

In-production Inspection Dimensional Tolerance Detection ASTM A213 100% inspection by caliper/micrometer/ultrasonic thickness gauge

Chemical Composition (WT. %)
Element C Si Mn P S Cr Ni Mo N Fe
Range ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.030 16.00-18.00 10.00-14.00 2.00-3.00 ≤0.10 Bal.
Typical Value 0.025 0.50 1.50 0.030 0.010 17.00 12.00 2.50 0.05 Bal.




Supplementary Notes:

  1. All products are seamless stainless steel tubes without welding seams, ensuring no leakage risk under high-pressure working conditions.
  2. Value-added processing services such as cut-to-length, beveling, spray marking can be provided as required, with no extra processing fee for bulk orders.
  3. The Material Test Certificate (MTC/COA) includes chemical composition and mechanical property test data of each batch of goods, with complete traceability.

ASTM A213 TP316L Seamless Stainless Steel Tube - Industrial Grade for High Corrosion Resistance Applications 0
