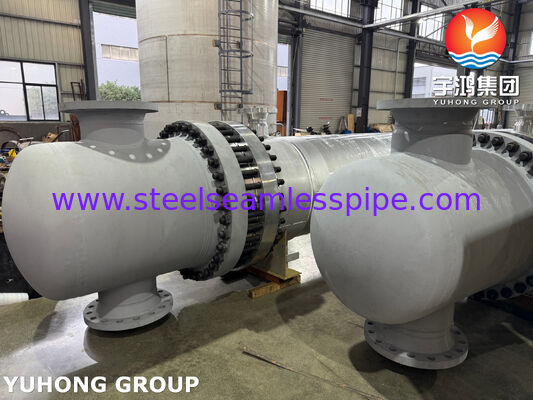

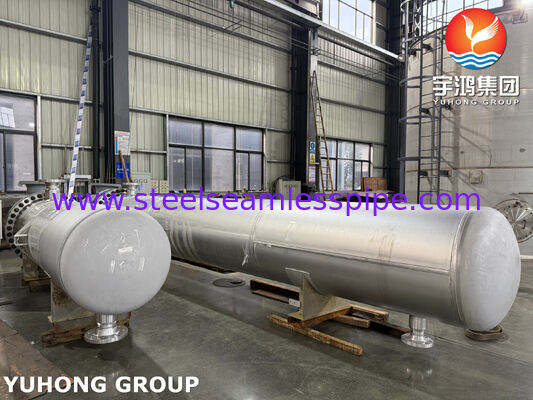

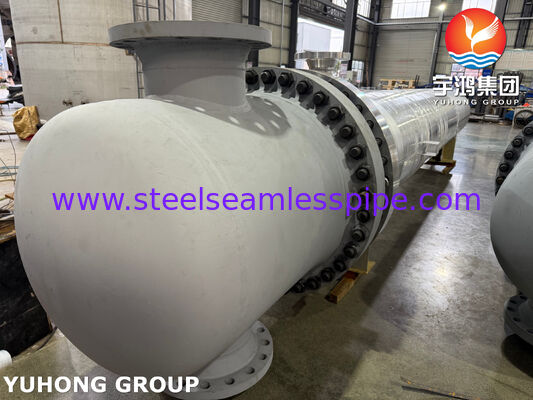

ASME Shell and Tube Heat Exchanger for Petrochemical and Refinery Applications

ASME Shell and Tube Heat Exchanger for Petrochemical and Refinery Applications

Product Overview

The ASME shell and tube heat exchanger is one of the most widely used heat transfer solutions in the petrochemical and refinery industry. Designed for continuous operation under demanding conditions, this type of heat exchanger provides reliable thermal performance for processes involving high temperature, high pressure, and corrosive fluids.

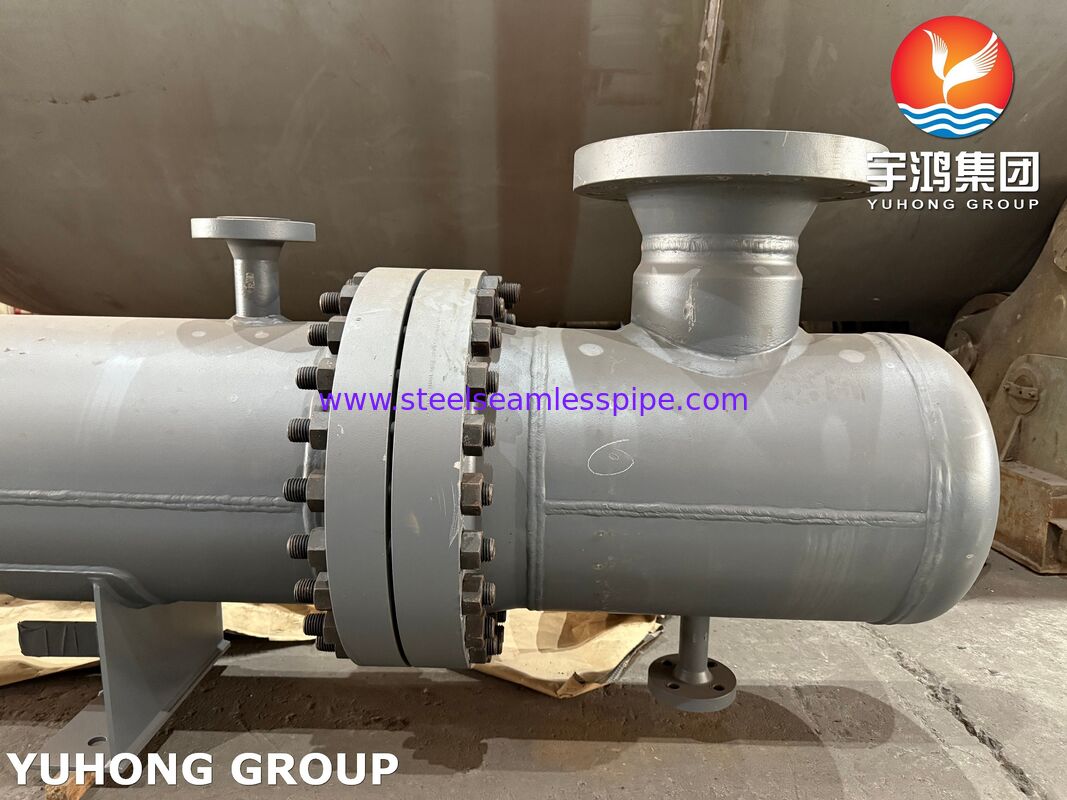

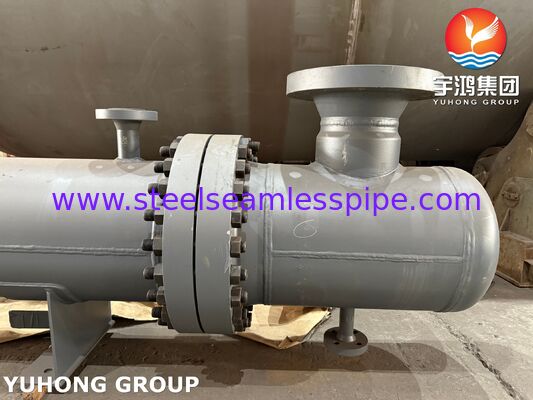

Manufactured in accordance with ASME design standards, these exchangers are built to ensure structural integrity, operational safety, and long service life. The equipment typically consists of a cylindrical shell, tube bundle, channel head, and flanged connections, allowing efficient heat exchange between two process fluids while keeping them physically separated.

Shell and tube heat exchangers are commonly installed in refineries, petrochemical plants, LNG facilities, and power generation systems, where stable heat transfer is critical for process efficiency and plant safety.

Key Features

·ASME compliant design for pressure equipment applications

·High thermal efficiency through optimized tube bundle configuration

·Heavy-duty construction suitable for high pressure and high temperature service

·Flanged channel head design for convenient inspection and maintenance

·Wide material selection, including carbon steel, stainless steel, and alloy steels

·Custom engineering available based on process and thermal requirements

Typical Applications

·Shell and tube heat exchangers are widely used in heat transfer systems across the oil and gas processing industry, including:

·Petrochemical production units

·Oil refineries

·Crude oil processing systems

·Gas treatment and LNG facilities

·Chemical processing plants

·Power plant heat recovery systems

·These units can be applied in various thermal processes such as cooling, heating, condensation, and vaporization.

Construction and Materials

Depending on operating conditions, shell and tube heat exchangers can be manufactured using a range of materials to ensure durability and corrosion resistance.

Common material options include:

Carbon steel for general industrial service

Stainless steel for corrosion resistance

Low alloy steel for high temperature applications

Nickel alloy tubes for aggressive media

Each exchanger is manufactured with precise fabrication processes including welding, machining, and pressure testing to ensure reliable performance in industrial environments.

Manufacturing and Quality Assurance

All heat exchangers are produced under strict quality control procedures. Typical inspection and testing include:

Hydrostatic pressure testing

Non-destructive examination (NDT)

Dimensional inspection

Material traceability and certification

These procedures ensure that each unit meets the requirements of ASME pressure vessel standards and customer project specifications.

About Yuhong Group

Yuhong Group is a professional manufacturer of industrial process equipment, specializing in shell and tube heat exchangers, air coolers, and pressure vessels. With more than 30 years of manufacturing experience, the company provides reliable equipment for industries such as oil & gas, petrochemical, refinery, and power generation.

Manufactured in accordance with international standards including ASME and TEMA, Yuhong equipment is widely used in heat transfer and pressure systems across global industrial projects.
