ASTM A182 F51 Blind RF Flange Duplex 2205 Forged, High Strength，Corrosion Resistant for Oil&Gas

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK.
Model Number:	ASTM A182 F11 CL2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (330)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (152)

Fin Tube (703)

Heat Exchanger (27)

Heat Exchanger Tube (458)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (100)

Copper Alloy Tube (249)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (859)

Steel Flange (658)

Others (404)

Cladding Parts (8)

Detailed Product Description

Material:	F51	Product Name:	Duplex Steel Flange
Pressure:	150lb,300lb,600lb,900lb,1500lb	Standard:	ANSI B16.5 ASME B16.47 SERIES A(MSS SP44)
Type:	Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange	Process:	Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment
Surface Treatment:	Heat Treatment,Galvanized,Black Oxidation,customize,pickeling	Inspection:	Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection
Highlight:	ASTM A182 F51 blind flange , duplex 2205 forged flange , corrosion resistant oil gas flange

ASTM A182 F51 Blind RF Flange Duplex 2205 Forged, High Strength,Corrosion Resistant for Oil&Gas

The ASTM A182 F51 Blind RF Flange is a solid blind flange made of duplex stainless steel, primarily used to seal pipe ends or as a maintenance access point. RF indicates that its sealing face is raised, which is the most common sealing face type. This product is manufactured strictly according to ASME B16.5 and other dimensional standards.

Blind flanges have many uses. For example, they can permanently or temporarily prevent media leakage or foreign matter ingress. Compared to one-time welded heads, they are removable, facilitating future modifications. Installing a blind flange at an adjacent flange before servicing equipment can create a safe physical barrier. They are also used during hydraulic or pneumatic pressure testing of pipelines.

Chemical Composition
Element	Composition (wt%)
Carbon (C)	≤ 0.03
Silicon (Si)	≤ 1.00
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.030
Sulfur (S)	≤ 0.020
Chromium (Cr)	21.0 – 23.0
Nickel (Ni)	4.5 – 6.5
Molybdenum (Mo)	2.5 – 3.5
Nitrogen (N)	0.08 – 0.20

Mechanical Properties
Property	Value (min.)
Tensile Strength	≥ 620 MPa (90 ksi)
Yield Strength (0.2% offset)	≥ 450 MPa (65 ksi)
Elongation (in 2 in / 50 mm)	≥ 25%
Reduction of Area	≥ 45%
Hardness (Brinell)	≤ 293 HBW
Hardness (Rockwell C)	≤ 31 HRC

Application

Oil & Gas: Used for end-sealing of pipelines and isolation of high-pressure natural gas transmission systems in offshore drilling platforms, subsea pipeline systems, and acid gas (including H₂S) services.
Chemical & Petrochemical Processing: Used for port isolation of reactors and storage tanks, and end caps of heat exchangers.
Marine Engineering: Used for seawater pipeline systems, such as desalination plants and ship systems, to effectively resist seawater corrosion.
Power Generation: Used for end-sealing or isolation of boiler systems and steam pipelines.
Water Treatment and General Industry: Used for pipeline isolation in wastewater treatment systems, pressure vessels, and high-pressure storage tanks, as well as for safety isolation during equipment maintenance.

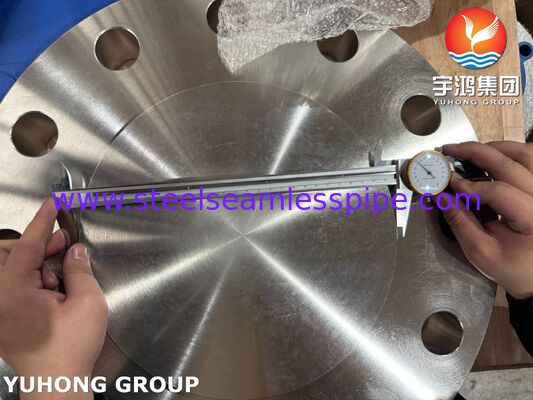

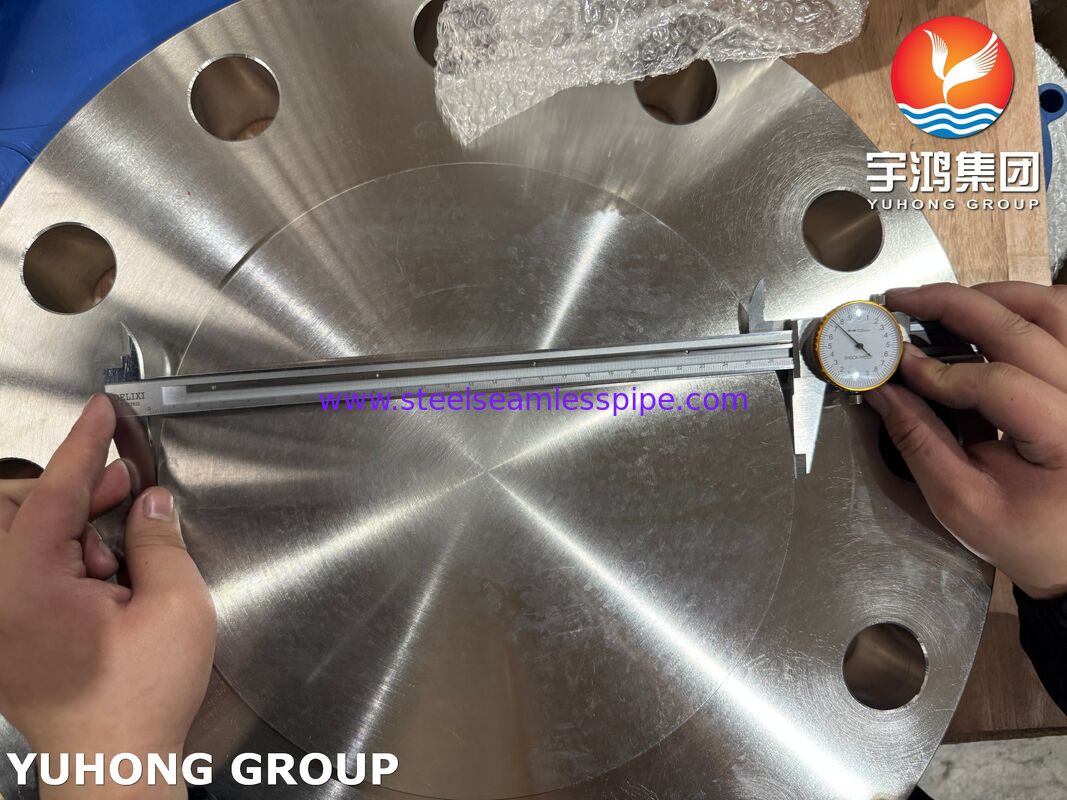

ASTM A182 F51 Blind RF Flange Duplex 2205 Forged, High Strength，Corrosion Resistant for Oil&Gas 0
