ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant，Precise for Hypodermic Needles, Medical Devices

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	Capillary Tubes

Payment & Shipping Terms:

Minimum Order Quantity:	10KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10-90 Days
Payment Terms:	L/C, T/T
Supply Ability:	According To Client's Request

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (156)

Fin Tube (703)

Heat Exchanger (28)

Heat Exchanger Tube (458)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (101)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (860)

Steel Flange (659)

Others (404)

Cladding Parts (8)

Detailed Product Description

Outer Diameter:	0.3mm 0.4mm 0.5mm	Grade:	SS304 304L 316 316L
Needle Surface:	Bright Annealed	Usage:	Medical Procedures
Length:	DEPEND ON CLIENT REQUEST	Package:	PLYWOOD CASE,BUNDLE
Highlight:	ASTM A269 SUS304 capillary tubes , corrosion resistant medical needle tubes , precise hypodermic needle tubing

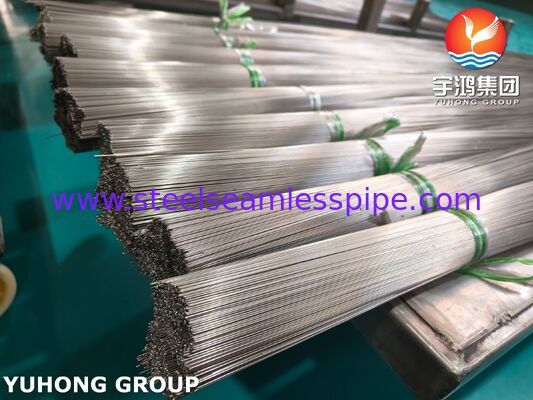

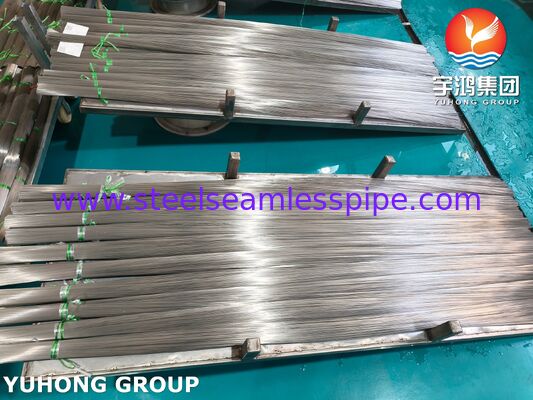

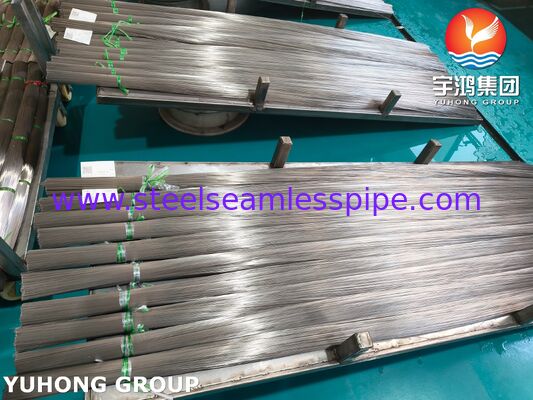

ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant,Precise for Hypodermic Needles, Medical Devices

ASTM A269 SUS304 medical capillary tubing is a precision micro-tube manufactured according to ASTM A269 standards, made of SUS304 stainless steel, and specifically designed for medical applications.

304 stainless steel is widely recognized for its good biocompatibility. Thanks to its excellent corrosion resistance and biocompatibility, capillary tubes play a crucial role in the medical field.

Medical Needle Application Selection Notes: TP304 is commonly selected for general medical needle applications requiring good strength, ductility, and corrosion resistance.

TP304L offers enhanced weldability due to its lower carbon content, making it ideal for welded needle assemblies where post-weld annealing is not performed.

304/304L Dual Certified tubing is also available, meeting both composition requirements, providing maximum flexibility for medical device manufacturing.

Let me know if you need additional data such as surface finish requirements (BA/EP) or dimensional tolerances for medical capillary tube applications.

Chemical Composition
Element	Grade: TP304 (wt%)
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Silicon (Si)	≤ 1.00
Chromium (Cr)	18.0 – 20.0
Nickel (Ni)	8.0 – 11.0
Iron (Fe)	Balance

Mechanical Properties
Property	Value (min.)
Yield Strength (0.2% offset)	≥ 205 MPa (30 ksi)
Tensile Strength	≥ 515 MPa (75 ksi)
Elongation (in 2 inches / 50 mm)	≥ 35%
Hardness (Rockwell B)	≤ 90 HRB

Mechanical Properties Comparison (304 vs. 304L)
Property	TP304	TP304L
Yield Strength (min.)	205 MPa (30 ksi)	170 MPa (25 ksi)
Tensile Strength (min.)	515 MPa (75 ksi)	485 MPa (70 ksi)
Elongation (min.)	35%	35%

Applications:

Forceps and irrigation/suction tubes for laparoscopic and arthroscopic endoscopes, or as precision components of catheters and guidewires.

Inner cannulas for high-end injection needles, puncture needles, and insulin pump tubing, ensuring accurate.

Dental and Surgical Tools: Water/air supply tubing for dental handpieces, or as the rigid component of liposuction cannulas and surgical irrigation tubes.

In Vitro Diagnostic Equipment: Inside blood analyzers, biochemical analyzers, and other equipment, responsible for the precise and stable delivery of minute amounts of reagents or samples.

Medical Device Sensors: Protective sheaths for temperature probes and pressure sensors, isolating interference and ensuring accurate signal transmission.
