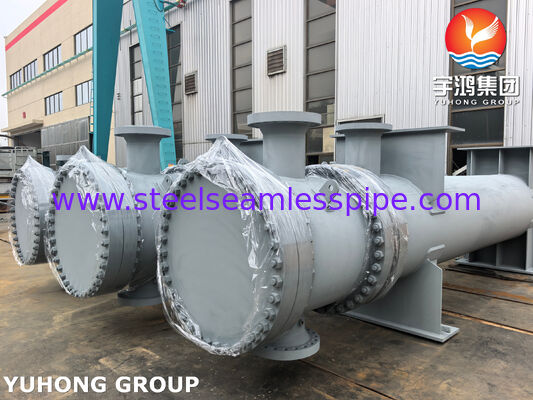

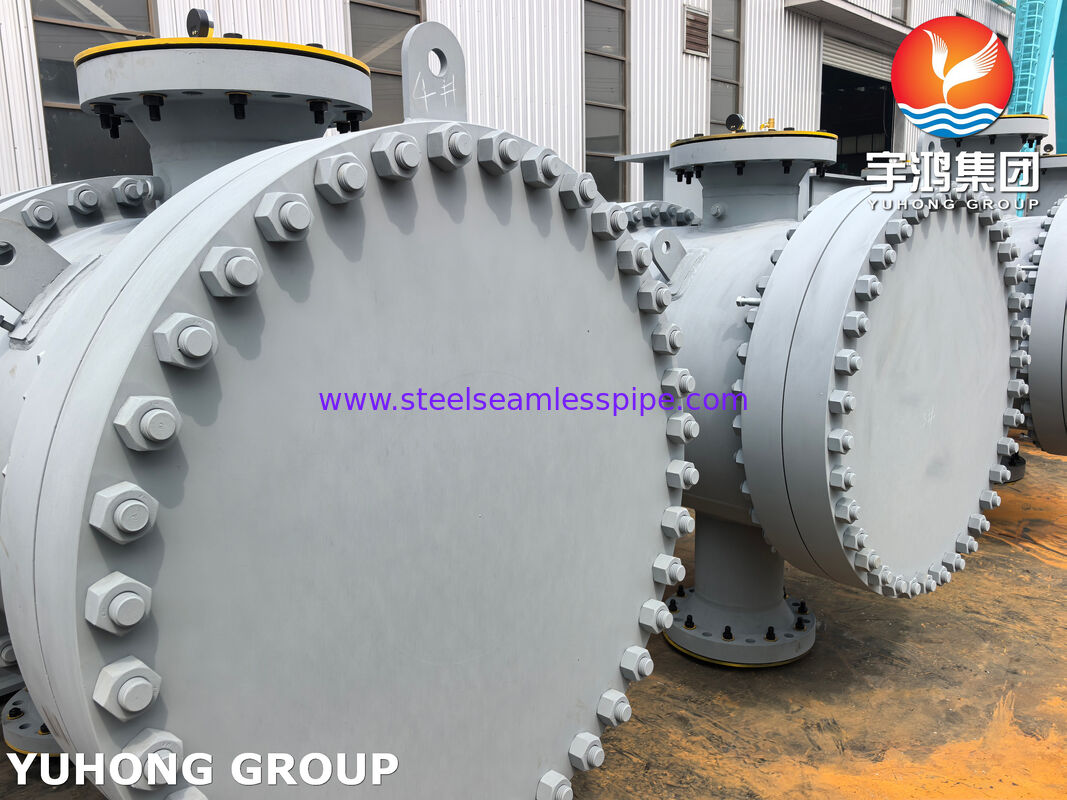

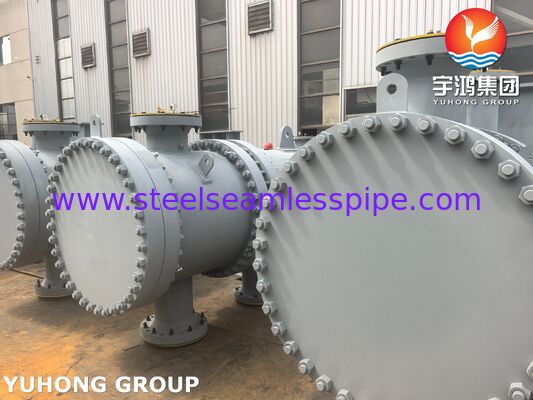

Shell and Tube Heat Exchanger--- Your Reliable, Efficient Built for Industy

Product Details:

Place of Origin:	China
Brand Name:	Yuhong
Certification:	ASME U Stamped NB PED
Model Number:	Shell and Tube Heat Exchanger

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotaible
Packaging Details:	Sea Worthy Package
Delivery Time:	30-180 days
Payment Terms:	L/C,T/T
Supply Ability:	3000 sets/ year

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (323)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (157)

Fin Tube (704)

Heat Exchanger (30)

Heat Exchanger Tube (459)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (103)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (861)

Steel Flange (660)

Others (405)

Cladding Parts (8)

Detailed Product Description

Applications:	Oil And Gas Industry	Application:	Oil & Gas, Chemical, Food Processing, Construction

Shell and Tube Heat Exchanger

Reliable. Efficient. Built for Industry.

Product Overview

Our Shell and Tube Heat Exchangers are engineered for high-performance heat transfer in demanding industrial environments. Designed in accordance with international standards (ASME, TEMA, GB/T 151), they provide robust, long-lasting solutions for heating, cooling, condensation, and evaporation processes.

Whether you are in chemical processing, oil & gas, power generation, HVAC, or food production, our heat exchangers deliver consistent thermal efficiency under extreme temperatures and pressures.

Key Features

Feature	Benefit
Heavy-duty construction	Withstands high pressure (up to 30+ MPa) and high temperature (up to 600°C)
Flexible design options	Fixed tube sheet, floating head, and U-tube types to suit various thermal and cleaning requirements
High thermal efficiency	Optimized baffle spacing and tube arrangement (triangular or square pitch) for maximum heat transfer
Corrosion-resistant materials	Available in carbon steel, stainless steel, titanium, and special alloys for aggressive fluids
Easy maintenance	Removable tube bundle options for mechanical cleaning and inspection

Available Configurations

Type	Best For
Fixed Tube Sheet	Low temperature difference, clean fluids on shell side
Floating Head	Large temperature differences, dirty fluids requiring regular cleaning
U-Tube	High temperature / high pressure, thermal expansion concerns

Typical Applications

Oil & Gas - Crude oil heating, gas cooling, refinery condensers
Chemical & Petrochemical - Reactor cooling, solvent recovery, acid heating
Power Plants - Feedwater preheating, turbine exhaust condensation
HVAC & Refrigeration - Chiller evaporators and condensers
Pharmaceutical & Food - Sterilization, pasteurization, and clean-in-place (CIP) systems

Technical Specifications (Typical Range)

Parameter	Value
Heat transfer area	1 m² - 2,500+ m²
Shell diameter	100 mm - 2,500 mm
Tube length	1.5 m - 12 m
Tube outer diameter	12 mm - 51 mm
Design pressure	Vacuum - 35 MPa
Design temperature	-50°C - 600°C

Custom designs are available for specific process conditions.

Why Choose Our Shell and Tube Heat Exchangers?

Our heat exchangers combine robust engineering with flexible design options to meet your specific industrial requirements. With proven performance across multiple industries and compliance with international standards, we deliver reliable thermal solutions that stand up to the most demanding operating conditions.
