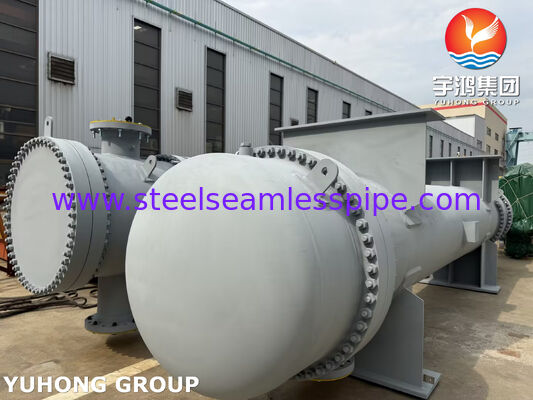

Stainless Steel Fixed Tubesheet Heat Exchanger with ASME SA213 TP304/316L Tubes and ASME SA182 F304/316L Tubesheet for Corrosion Resistant Applications

Complete thermal equipment solution featuring ASME SA213 TP304/316L tubes and SA182 F304/316L tubesheet, designed for chemical, food, pharmaceutical, and corrosive service applications.

Yuhong Group Co., Ltd. designs and manufactures high-quality thermal equipment, including shell & tube heat exchangers (TEMA heat exchanger designs), pressure vessels, and air coolers. We supply every critical internal component from single tubes to complete tube bundles.

This robust, all-stainless-steel unit is designed for demanding corrosive service with the following characteristics:

• Shell & channel material: Stainless steel (bright annealed finish)
• Tubes: ASME SA213 TP304/304L or TP316/316L seamless stainless steel
• Tubesheet: ASME SA182 F304/304L or F316/316L forged stainless steel
• End channel / bonnet: Removable with flanged connection
• Saddles / supports: Stainless steel for mounting on foundations
• Nameplate: Clearly marked with YUHONG GROUP identification

Stainless steel (304/304L or 316/316L) is chosen when:

• The process fluid is corrosive (dilute acids, chlorides, caustic solutions)
• Product purity is critical (pharmaceutical, food, beverage, biotech)
• External environment is aggressive (coastal, offshore, chemical plant)

316/316L adds molybdenum for enhanced resistance to pitting and crevice corrosion in chloride-containing services.

• Leak-tight tube-to-tubesheet joints: Precision rolling + seal welding with hydrostatic testing
• Corrosion-resistant design: Full stainless steel wetted surfaces
• Cleanability: Removable channel for tube end access
• Full ASME compliance: Design, materials, fabrication per ASME Code
• Material traceability: Mill Test Certificates provided for all components

Individual components available for repair or upgrade:

• Heat exchanger tubes - stainless steel seamless, cut to length
• Fin tubes - for adding surface area to existing bundles
• Heat exchanger tubesheet - forged stainless steel, drilled and grooved
• Baffles, tie rods, spacers - machined from stainless steel
• Shell and channel sections - rolled and welded to specifications

• Chemical processing: Heating/cooling of solvents, acids, bases, salt solutions
• Pharmaceutical manufacturing: Purified water loops, WFI cooling, reactor control
• Food & beverage: Pasteurization, juice cooling, CIP solution heating
• Biotechnology: Fermenter temperature control, buffer preparation
• Power generation: Demineralized water heaters, sample coolers
• Marine: Central cooling systems (fresh water circuits)

Every heat exchanger includes comprehensive documentation:

• Mill Test Certificates (MTC) for all pressure-retaining components
• Hydrostatic test report - tube side and shell side
• Dimensional inspection report
• Welding procedure specification and welder qualifications
• Nameplate photo
• Optional third-party inspection (SGS, BV, TÜV, Lloyds)
