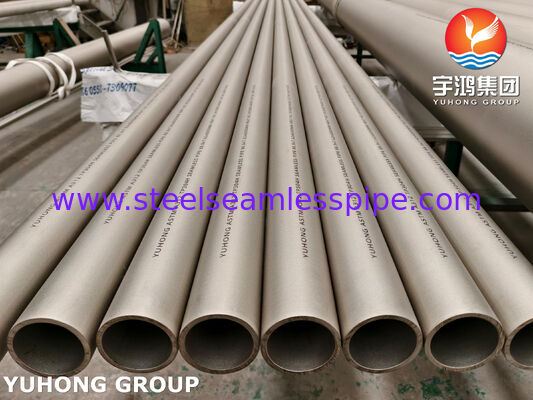

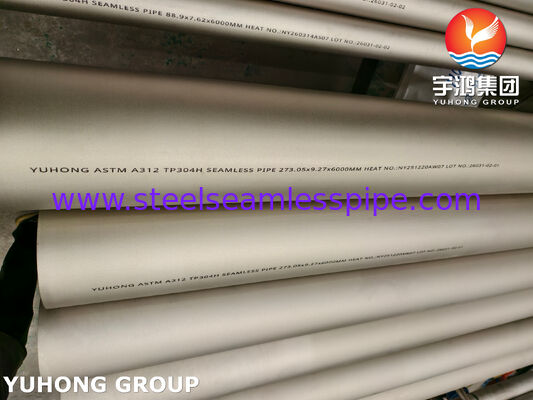

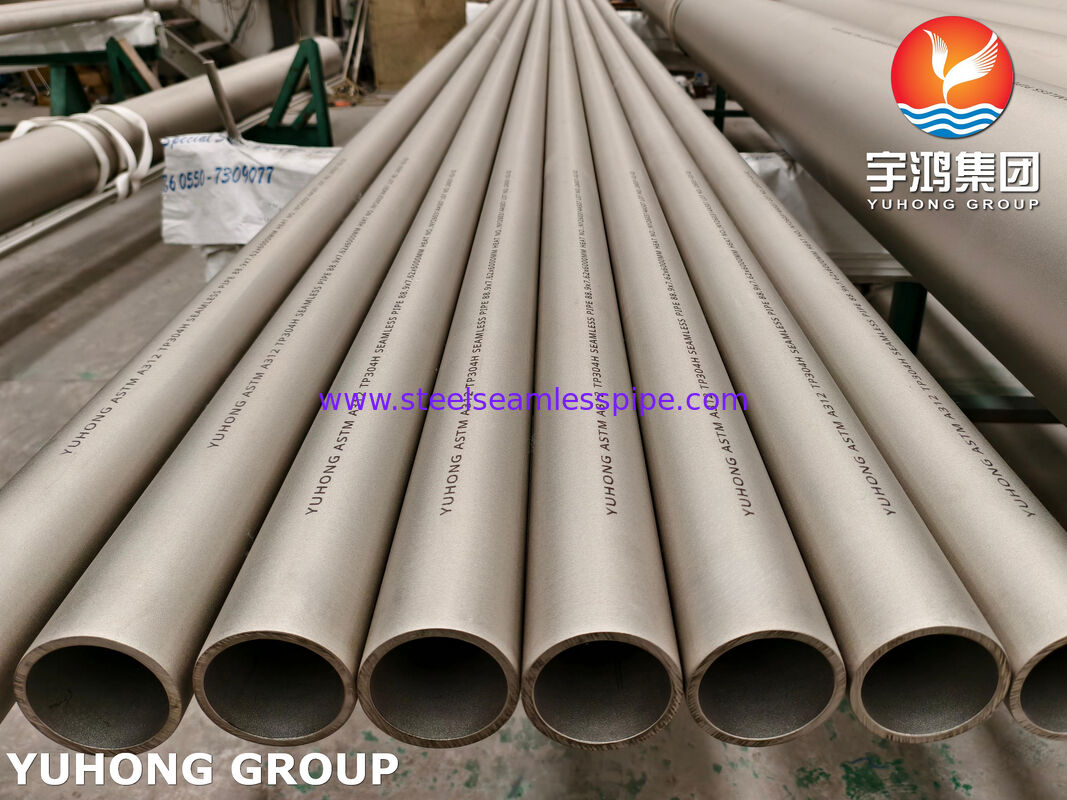

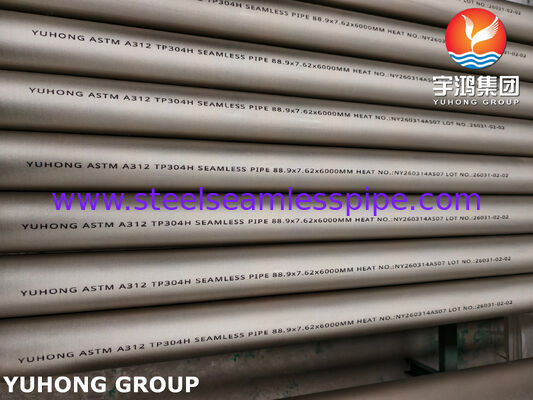

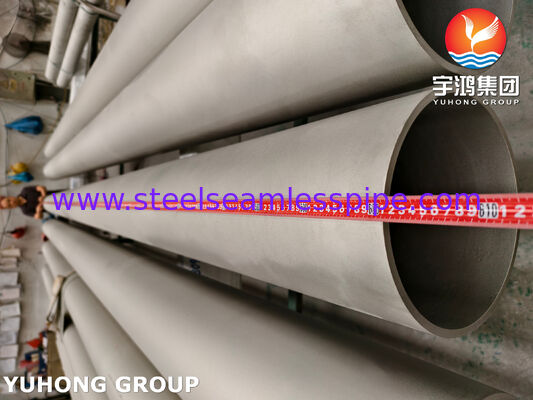

ASTM A312 TP304H / 1.4948 Stainless Steel Seamless Pipe Pickled Annealed Round Pipe

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A312 TP304H Stainless Steel Seamless Pipe

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Packaging Details:	Ply-wooden Case/ Bundle with plastic Cap
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (338)

Stainless Steel Seamless Tube (330)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (39)

Needle Tube (166)

Fin Tube (716)

Heat Exchanger (31)

Heat Exchanger Tube (469)

Heat Exchanger Tube Bundle (51)

Heat Exchanger Tubesheet (126)

Heat Exchanger Baffle (39)

Air Cooler (13)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (104)

Copper Alloy Tube (252)

Alloy Steel Tube (212)

Titanium Tube (21)

Bright Annealed Tube (174)

Boiler Tube (153)

Steel Fitting (867)

Steel Flange (666)

Others (408)

Cladding Parts (9)

Detailed Product Description

Product Name:	Stainless Steel Seamless Pipe	Standard:	ASTM A312 / ASME SA312
Material:	TP304H / 1.4948	O.D.:	1/2" To 48"
W.T.:	SCH 5S To SCH XXS	Length:	Single Random, Double Random & Cut Length
End:	Plain End, Beveled End	Type:	Seamless, Welded
Application:	Chemical And Petrochemical Plants, Oil And Gas Plants, Refineries, Power Plants...
High Light:	ASTM A312 TP304H Stainless Steel Pipe, 1.4948 Steel Seamless Pipe

ASTM A312 / ASME SA312 TP304H Stainless Steel Seamless Pipe 1.4948 Steel Pipe

A high-temperature-resistant stainless steel pipe, made without a weld seam, that has been heat-treated to soften it and acid-cleaned to make it clean and corrosion-resistant, specifically designed for long-term service above 550°C (1022°F) where normal stainless steel would creep and fail.

The single biggest reason to choose TP304H is superior creep rupture strength at elevated temperatures (> 550°C / 1022°F), combined with good oxidation resistance and lower cost than stabilized or high-alloy grades.

Equivalent Grade of ASTM A312 TP304H / 1.4948 Stainless Steel Seamless Pipe

EU/EN

UNS

JIS

AFNOR

GOST

ISO

X6CrNi18-10 (1.4948)

304H

S30409

SUS304H

Z6CN18-09

08KH18N10

X7CrNi18-9

European equivalent grade for Austenitic creep resisting steel 304H ( AISI, ASTM, UNS): X6CrNi18-10 (1.4948)
Chemical composition and properties of european equivalents (EN) for 304H (USA, AISI, ASTM, UNS): X6CrNi18-10 (1.4948)

**Chemical Composition % of ASTM A312 TP304H / 1.4948 Stainless Steel Seamless Pipe**
Grade	UNS Designation	Composition, %
Grade	UNS Designation	Carbon	Manganese	Phosphorus, max	Sulfur, max	Silicon	Chromium	Nickel
304H	S30409	0.04-0.10	2.00	0.045	0.03	0.75	18-20	8-10.5

Summary Table – Stainless Steel TP304H vs. Other Stainless Steels

Grade	Best Application	Why Choose 304H Over It?	Why Choose Other Over TP304H?
304/304L	General purpose, low temperature, wet service	For high T > 550°C: TP304H has far better creep life.	Below 450°C or welded corrosive service: 304L avoids sensitization.
316/316L	Chloride and acid resistance	TP304H is cheaper and has higher creep strength above 550°C.	Need pitting resistance or service below 500°C with chlorides.
321H	High temperature + welded corrosive service	TP304H is 20–30% cheaper, similar oxidation, adequate creep for many boilers.	Your welded assembly will see aqueous corrosion during shutdowns.
347H	Highest creep among austenitics	TP304H is 30–40% cheaper, available off-the-shelf, easier to machine.	You need maximum creep strength and resistance to intergranular corrosion.
310H	Extreme oxidation up to 1150°C	TP304H is far cheaper and sufficient below 925°C.	Operating temperature regularly > 950°C.

Applications

Because of its high-temperature mechanical strength, you will find TP304H seamless pipe in:

Power Generation: Superheater and reheater tubes in coal/gas-fired boilers.
Petrochemical: Furnace tubes, heat exchangers, and high-temperature hydrocarbon service piping.
Refineries: Catalytic reformers and high-temperature flue gas systems.
Industrial Heating: Radiant tubes, burner parts, and kilns.
