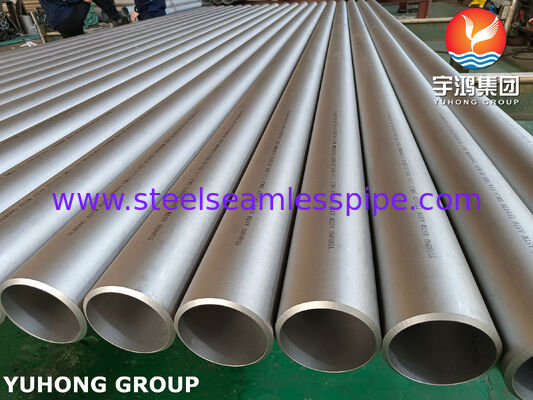

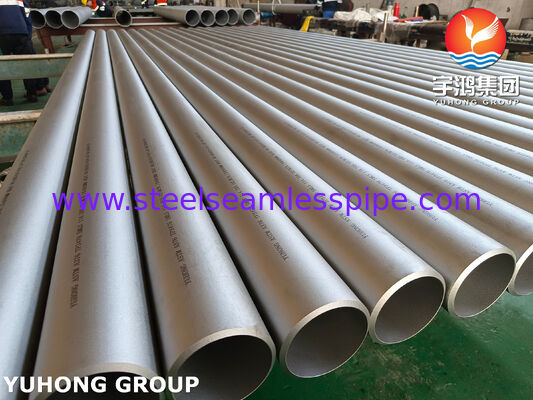

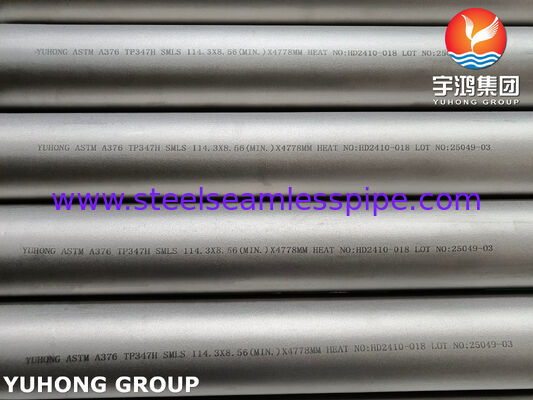

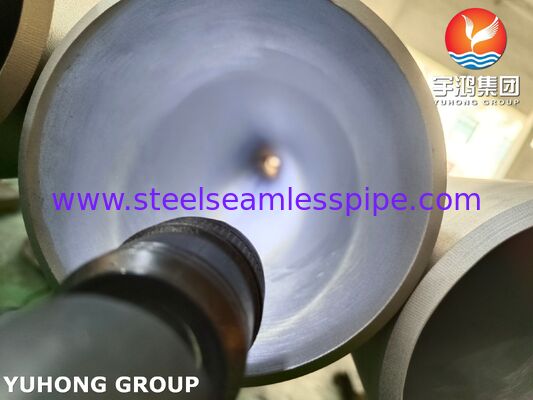

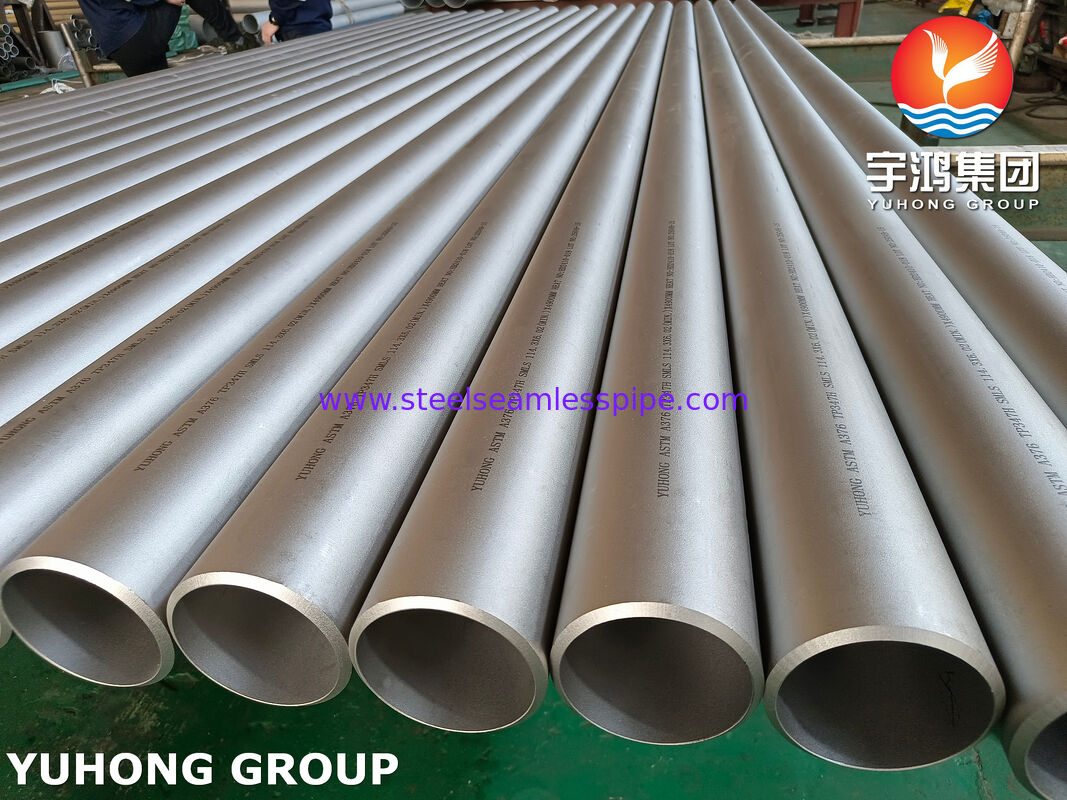

ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace

ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace

  • ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace
  • ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace
  • ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace
  • ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace
ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number: ASTM A376/ASME SA376 TP347H
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (339)
Stainless Steel Seamless Tube (331)
Duplex Stainless Steel Pipe (134)
Duplex Stainless Steel Tube (39)
Needle Tube (167)
Fin Tube (720)
Heat Exchanger (31)
Heat Exchanger Tube (470)
Heat Exchanger Tube Bundle (51)
Heat Exchanger Tubesheet (126)
Heat Exchanger Baffle (39)
Air Cooler (13)
Pressure Vessel (4)
Stainless Steel Welded Pipe (61)
Stainless Steel Welded Tube (133)
Nickel Alloy Pipe (276)
Nickel Alloy Tube (104)
Copper Alloy Tube (252)
Alloy Steel Tube (214)
Titanium Tube (21)
Bright Annealed Tube (175)
Boiler Tube (153)
Steel Fitting (867)
Steel Flange (666)
Others (408)
Cladding Parts (9)
Detailed Product Description
Specification: ASTM A376/ASME SA376 TP347H Stainless Steel Seamless Tube Certification: ISO
Shape: Round Technique: Cold Drawn/ Cold Rolled
Surface Treatment: Annealed, Polished Etc. Package: Wooden Boxes Package
Highlight:

ASTM A376 TP347H seamless tube

,

Nb-stabilized stainless steel tube

,

high-temperature superheater reheater tube

 ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace



ASTM A376/ASME SA376 is the standard specification for seamless austenitic steel pipe intended for high-temperature central station service, originally developed for piping in the electric-power generating thermal plants. TP347H is one of the designated H‑grades under this specification, specifically engineered for long‑term creep service in boilers and pressure vessels above 550°C (1022°F).

ASTM A376 TP347H seamless tube is the “go‑to” niobium‑stabilized stainless steel solution for creep‑controlled designs above 550°C, where conventional unstabilized grades (304H, 316H) risk sensitization and where higher carbon ensures coarser grain for superior creep resistance.





347 vs 347H Comparison:
Grade UNS C (%) Grain Size Primary Application
TP347 S34700 ≤0.08 Finer General service, moderate temperatures
TP347H S34709 0.04–0.10 ASTM No. 7 or coarser High‑temperature creep service (>550°C)





Chemical Composition
Element Min (%) Max (%) Function Description Standard Reference
C (Carbon) 0.04 0.1 Elevated carbon for coarse grain & creep strength ASTM A376
Mn (Manganese) — 2 Deoxidation, hot workability ASTM A376
P (Phosphorus) — 0.045 Cold brittleness control ASTM A376
S (Sulfur) — 0.03 Hot brittleness control ASTM A376
Si (Silicon) — 1 Oxidation resistance ASTM A376
Cr (Chromium) 17 19 Oxidation resistance & high‑temperature strength ASTM A376
Ni (Nickel) 9 13 Austenite structure stabilization ASTM A376
Nb (Niobium) + Ta (Tantalum) 8×C 1 Stabilization – prevents sensitization ASTM A376





Mechanical Properties
Parameter Requirement Standard Reference
Tensile Strength (Rm) ≥ 515 MPa (75 ksi) ASTM A376
Yield Strength (Rp0.2) ≥ 205 MPa (30 ksi) ASTM A376
Elongation (longitudinal, 50mm gage length) ≥ 35% ASTM A376
Hardness (Brinell) ≤ 223 HB ASTM A376
Hardness (Rockwell B) ≤ 95 HRB ASTM A376



Physical Properties
Parameter Value Unit Standard Reference
Density 7.7 – 8.03 g/cm³ ASTM A376
Elastic Modulus (20°C) ~195 GPa ASTM A376
Thermal Conductivity ~14.5 W/(m·K) ASTM A376
Coefficient of Linear Expansion (20–300°C) ~17.0 ×10⁻⁶/°C ASTM A376
Specific Heat Capacity (20°C) ~500 J/(kg·K) ASTM A376
Electrical Resistivity ~0.73 μΩ·m ASTM A376
Melting Range 1400 – 1425 °C ASTM A376





Application:







ASTM A376 TP347H Seamless Tube Nb-Stabilized 515MPa Up to 900°C for Superheater Reheater Cracking Furnace 0

  • Power Generation (core application): Superheaters and reheaters for supercritical and ultra‑supercritical power plant boilers; main steam piping; high‑temperature reheat piping

  • Petrochemical Industry: Ethylene cracking furnace tubes; hydrogen conversion furnace tubes; refinery furnaces; high‑temperature piping systems

  • Nuclear Industry: Non‑nuclear‑grade auxiliary piping systems within nuclear power plants requiring high‑temperature performance

  • Industrial Heating: Heat treatment equipment, expansion joints, aircraft exhaust manifolds

  • Heat Exchangers: High‑temperature thermal fluid piping and heat exchanger tube bundles exposed to cyclic thermal stress
