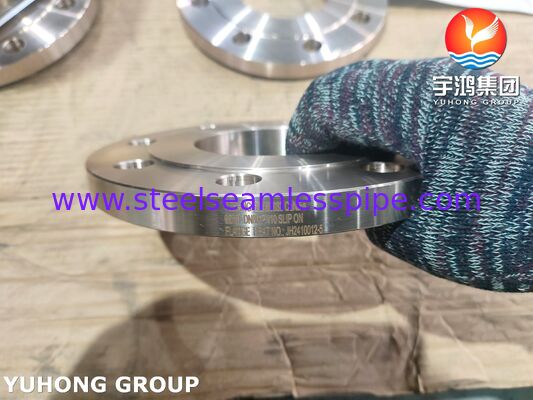

DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange

DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange

  • DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange
  • DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange
  • DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange
  • DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange
DIN 86033 CuNi 90/10 (C71500) Slip On Flange Marine Copper Nickel Pipe Flange
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ISO 9001, EN10204 3.1, ABS, DNV, LR, BV, CCS
Model Number: DIN 86033 CuNi 90/10 (C71500) Flange
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Packaging: Seaworthy Export Plywood Cases and Fumigation-Free Wooden Pallets
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C at sight
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Standard: DIN 86033 Material: CuNi 90/10 (C71500)
Product Type: Copper Nickel Flange Nominal Size: DN15-DN1200
Pressure Class: PN10 / PN16 Connection: Weld Neck, Slip On, Blind
Corrosion Resistance: Excellent Seawater Corrosion Resistance Application: Marine, Shipbuilding, Offshore, Desalination
Highlight:

DIN 86033 copper nickel flange

,

CuNi 90/10 slip on flange

,

marine copper nickel pipe flange

DIN 86033 CuNiFe 90/10 Slip On Flange DN450 PN10 Marine Copper Nickel Flange





DIN 86033 CuNiFe 90/10 Slip On Flange Manufacturer & Supplier



YUHONG GROUP supplies high-quality DIN 86033 CuNiFe 90/10 Slip On Flanges for marine piping systems, offshore engineering, seawater cooling systems, shipbuilding projects, and desalination plants.

Manufactured from premium Copper Nickel Iron Alloy (CuNiFe 90/10), these flanges provide exceptional resistance to seawater corrosion, biofouling, erosion, and chloride attack. The material is widely recognized as one of the most reliable solutions for marine and offshore piping systems.

Our DIN 86033 CuNiFe 90/10 Slip On Flanges are produced according to strict international quality standards and are available in various sizes, pressure ratings, and customized dimensions.






Product Specifications

Parameter

Specification

Product Name

Copper Nickel Slip On Flange

Material

CuNiFe 90/10

Material Grade

Copper Nickel Iron Alloy 90/10

Standard

DIN 86033

Flange Type

Slip On Flange (SO)

Size

DN15 – DN1200

Sample Size

DN450

Pressure Rating

PN10, PN16, PN25, PN40

Face Type

Flat Face (FF)

Manufacturing Process

Forged / Machined

Surface Finish

Machined

Inspection

PMI, Dimension Inspection

Certificate

EN 10204 3.1

Brand

YUHONG GROUP

Origin

China




What is CuNiFe 90/10?

CuNiFe 90/10 is a copper-nickel alloy containing approximately:

  • Copper (Cu): 88%–90%

  • Nickel (Ni): 9%–11%

  • Iron (Fe): 1%–2%

  • Manganese (Mn): Small Addition

This alloy is specifically designed for long-term seawater service and offers outstanding resistance to marine corrosion and biological fouling.






Product Advantages

  • Excellent Seawater Corrosion Resistance

CuNiFe 90/10 performs exceptionally well in seawater environments and provides long-term protection against corrosion.

  • Superior Anti-Fouling Performance

The alloy naturally inhibits marine organism growth, reducing maintenance requirements and improving system efficiency.

  • Outstanding Erosion Resistance

Ideal for high-flow seawater systems where erosion-corrosion can be a concern.

  • Long Service Life

Copper nickel flanges can provide decades of reliable service in harsh marine conditions.

  • Excellent Weldability

Suitable for fabrication and installation in shipbuilding and offshore projects.

  • Cost-Effective Marine Solution

Compared with higher alloy materials, CuNiFe 90/10 offers an excellent balance between performance and cost.






Applications



DIN 86033 CuNiFe 90/10 Slip On Flanges are widely used in:

Shipbuilding Industry

  • Naval vessels

  • Commercial ships

  • Tankers

  • Cruise ships

  • Offshore support vessels

Offshore Engineering

  • Offshore platforms

  • FPSO projects

  • Marine terminals

Seawater Systems

  • Seawater cooling pipelines

  • Firefighting systems

  • Ballast water systems

  • Desalination plants

Industrial Projects

  • Heat exchangers

  • Condensers

  • Power stations

  • LNG terminals






Quality Control

All flanges undergo strict inspection procedures:

  • Raw Material Verification

  • Positive Material Identification (PMI)

  • Chemical Composition Analysis

  • Dimensional Inspection

  • Surface Examination

  • Mechanical Testing

  • Third-Party Inspection Available

Material Test Certificates according to EN 10204 3.1 are supplied upon request.






Packaging & Delivery

Standard Export Packaging

  • Plastic Film Protection

  • Bubble Wrap

  • Wooden Cases

  • Fumigation-Free Plywood Cases

  • Export Seaworthy Packing






Why Choose YUHONG GROUP?

  • More than 20 years of export experience

  • Professional flange manufacturing capability

  • Complete material traceability

  • Competitive pricing

  • Fast worldwide delivery

  • Third-party inspection support

  • OEM & Custom Manufacturing Available






Frequently Asked Questions



1. What is DIN 86033?

DIN 86033 is a German standard commonly used for marine copper nickel flanges in shipbuilding and offshore piping systems.



2. What is CuNiFe 90/10 material?

CuNiFe 90/10 is a copper-nickel alloy containing approximately 90% copper and 10% nickel, designed for seawater applications.



3. Why use copper nickel flanges in marine systems?

Copper nickel alloys provide excellent seawater corrosion resistance, anti-fouling performance, and long service life.



4. What flange types are available?

Slip On, Blind, Weld Neck, Socket Weld, Lap Joint, and custom-designed flanges are available.



5. Can you provide EN 10204 3.1 certificates?

Yes, all products can be supplied with EN 10204 3.1 Mill Test Certificates.



6. What industries use CuNiFe 90/10 flanges?

Shipbuilding, offshore engineering, desalination plants, seawater cooling systems, LNG terminals, and power generation industries.






Related Products

  • CuNiFe 90/10 Blind Flange

  • CuNiFe 90/10 Weld Neck Flange

  • CuNiFe 90/10 Pipe

  • CuNiFe 90/10 Elbow

  • CuNiFe 90/10 Tee

  • CuNiFe 90/10 Reducer

  • CuNiFe 70/30 Flange

  • Copper Nickel Pipe Fittings
