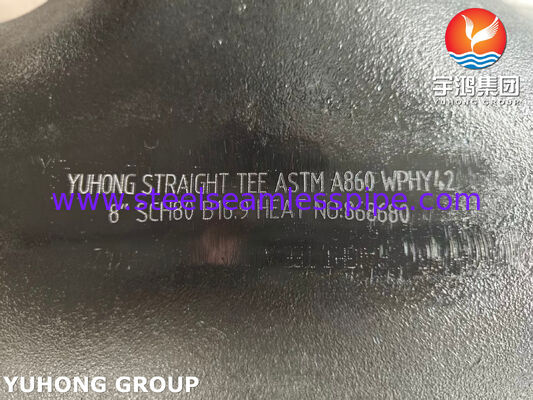

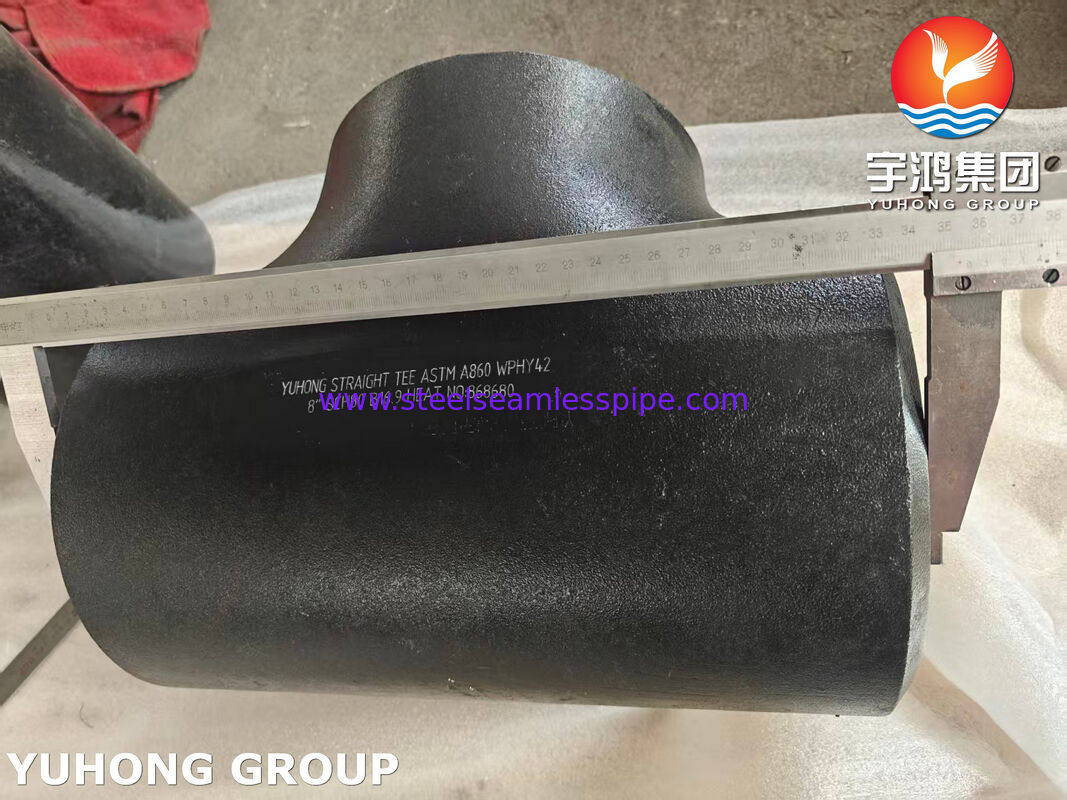

ASTM A860 WPHY 42 Carbon Steel Straight Tee ASME B16.9 Steel Buttweld Pipe Fittings

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API, PED , ABS, DNV, BV, LR
Model Number:	ASTM A860 WPHY 42 Carbon Steel Straight Tee

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (338)

Stainless Steel Seamless Tube (330)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (39)

Needle Tube (166)

Fin Tube (716)

Heat Exchanger (31)

Heat Exchanger Tube (469)

Heat Exchanger Tube Bundle (51)

Heat Exchanger Tubesheet (126)

Heat Exchanger Baffle (39)

Air Cooler (13)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (104)

Copper Alloy Tube (252)

Alloy Steel Tube (212)

Titanium Tube (21)

Bright Annealed Tube (174)

Boiler Tube (153)

Steel Fitting (867)

Steel Flange (666)

Others (408)

Cladding Parts (9)

Detailed Product Description

Product Name:	Carbon Steel Tee	Standard:	ASTM A860, ASME SA860
Material:	WPHY 42	Sizes:	1/2" To 48"
Wall Thickness Available:	SCH.10S To SCH.XXS	Shape:	Equal Tee, Reducing Tee, Y Tee
Type:	Seamless
High Light:	ASTM A860 WPHY 42 Buttweld Pipe Fittings, Carbon Steel Straight Tee

ASTM A860 WPHY 42 Carbon Steel Straight Tee ASME B16.9 Buttweld Pipe Fittings

An ASTM A860 WPHY 42 carbon steel straight tee is a high-strength, butt-weld pipe fitting manufactured to ASME B16.9 dimensional standards. The "WPHY 42" designation indicates a minimum yield strength of 42,000 psi, achieved through controlled heat treatment of ferritic steel. As a straight tee, it has three equal-sized openings with a 90‑degree branch, used to split or combine flow in a piping system. The ASME B16.9 standard governs its center‑to‑end dimensions, wall thickness (matching pipe schedules), bevel ends, and tolerances. This fitting is designed for demanding applications such as oil and gas transmission, petrochemical plants, and low‑temperature service, where superior strength and toughness are required compared to standard carbon steel fittings like ASTM A234 WPB. Installation is by butt‑welding directly to matching high‑yield pipe (e.g., API 5L X42 or X46).

Chemical Composition % of ASTM A860 WPHY 42 Carbon Steel Straight Tee ASME B16.9 Steel Buttweld Pipe Fittings

V+Co

≤0.02

1.00-1.45

≤0.030

≤0.010

0.15-0.40

≤0.50

≤0.30

≤0.20

≤0.35

≤0.05

≤0.10

≤0.04

≤0.06

≤0.12

Mechanical Properties of ASTM A860 WPHY 42 Carbon Steel Straight Tee ASME B16.9 Steel Buttweld Pipe Fittings

Yield Strength (0.2% offset)	Tensile Strength	Elongation, % in 4D	Elongation, % in 2 inch
≥290 MPa	≥415 MPa	25	32

Manufacturing & Testing Requirements per ASTM A860

Manufacturing: Can be seamless (for small sizes) or welded (from plate for large sizes). After welding, the fitting is heat-treated (normalized or quenched + tempered) to restore properties.

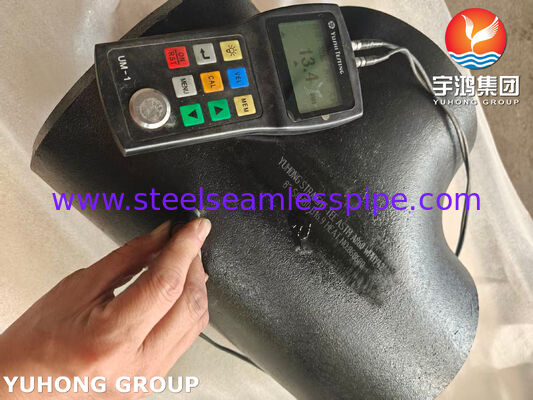

Non-Destructive Examination (NDE):
- All welds in fabricated fittings must be radiographed (RT) or ultrasonically tested (UT).
- No surface defects allowed (magnetic particle or liquid penetrant inspection may be used).
Heat Analysis: Chemical composition certified for each heat of steel.
Product Analysis: Sample from the finished fitting must meet the same chemistry.

Applications

Oil & Gas Transmission: Fits with API 5L X42 or X46 line pipe.
Chemical/Petrochemical Plants: High-pressure or low-temperature hydrocarbon lines.
Sour Service: Often ordered with NACE MR0175/ISO 15156 compliance for H₂S environments (requires special hardness control).
Offshore & Arctic Pipelines: Where impact testing at -50°F is mandatory.
Power Generation: High-pressure steam or water lines.
