ASME SB171 UNS C46400 Naval Brass Plate Forged Blank Circle Copper Alloy Forging Disc

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Model Number:	ASTM B171 UNS C46400 Naval Brass Disc

Payment & Shipping Terms:

Minimum Order Quantity:	1PC

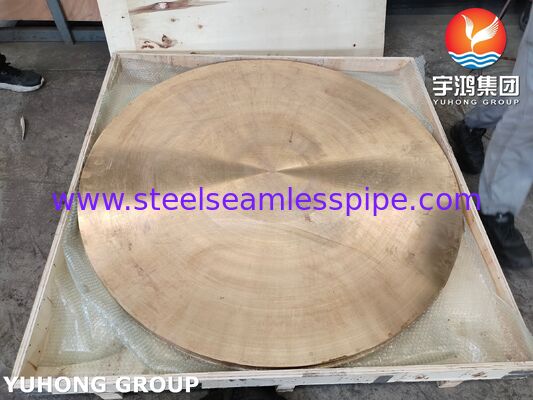

Packaging Details:	Ply wooden case / Pallet
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (343)

Stainless Steel Seamless Tube (340)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (741)

Heat Exchanger (35)

Heat Exchanger Tube (474)

Heat Exchanger Tube Bundle (53)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (105)

Copper Alloy Tube (258)

Alloy Steel Tube (219)

Titanium Tube (21)

Bright Annealed Tube (166)

Boiler Tube (155)

Steel Fitting (874)

Steel Flange (674)

Others (410)

Cladding Parts (9)

Detailed Product Description

Product Name:	Forging Disc	Standard:	ASTM B171, ASME SB171
Material:	UNS C46400	Size:	Can Custom, As Buyer's Drawing Requirements
Shape:	Cylinder	NDT:	100% PT, UT, PMI
Application:	Tubular Heat Exchanger, Boiler, Pressure Vessel, Steam Turbine, Large Central Air Conditioning, Etc.
High Light:	ASTM B171 UNS C46400 Naval Brass Plate, Forging Disc, Copper Alloy Forged Circles

ASME SB171 UNS C46400 Naval Brass Plate Copper Alloy Foging Disc for Heat Exchanger

ASME SB171 UNS C46400 Naval Brass Forged Disc refers to a circular, solid or ring-shaped forging (disc or blank) manufactured from UNS C46400 Naval Brass, produced to the material requirements of the ASME SB171 specification (which covers copper-alloy plate and sheet for marine applications). In summary, this product is a high-integrity, marine-grade copper alloy forging blank, whose material pedigree is defined by ASME SB171/UNS C46400, used as the starting point for critical components in seawater, high-temperature, and high-pressure industrial systems. If you are sourcing it, always ensure the mill certifies both the chemistry to SB171 and the non-destructive testing (NDT) standards for the forged shape.

Equivalent Grade of ASME SB171 UNS C46400 Naval Brass Plate Forged Circle Copper Alloy Forging Disc

UNS	SAE	ISO	EN
C46400	SAE J463 / CA464	CuZn39Sn1	CW712R (EN 12420)

Chemical Composition of ASME SB171 UNS C46400 Naval Brass Plate Forged Circle Copper Alloy Forging Disc

Element	Cu	Zn	Sn	Fe	Pb
%	59.0 – 62.0	Remainder (approx. 37-40%)	0.50 – 1.00	≤ 0.10	≤ 0.20

Mechanical Properties of ASME SB171 UNS C46400 Naval Brass Plate Forged Circle Copper Alloy Forging Disc

Temper	Tensile Strength (MPa)	Yield Strength (MPa)	Hardness (HBW)
Annealed (O60)	≥ 450	≥ 200	~80
Work Hardened	Up to 900	Up to 490	—
Standard Minimum	≥ 345	≥ 125 – 140	—

Physical Properties of ASME SB171 UNS C46400 Naval Brass Plate Forged Circle Copper Alloy Forging Disc

Parameter	Value	Unit
Density	8.4 – 8.53	g/cm³
Melting Range	885 – 900	°C
Thermal Conductivity (20°C)	~110 – 116	W/(m·K)
Coefficient of Linear Expansion (0-250°C)	21.2	×10⁻⁶/°C
Electrical Resistivity (15°C)	6.5	μΩ·m
Elastic Modulus	100 – 117	GPa
Relative Magnetic Permeability	1.01	—

Quality Assurance & Testing (per ASME SB171)

When procuring this forged disc, the manufacturer must typically provide:

Chemical Analysis Report (verifying Cu, Sn, Pb, Fe, Zn ranges).
Mechanical Test Certificates (Tensile and Hardness).

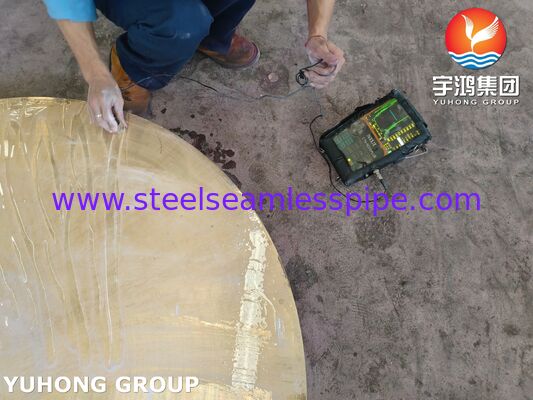

Ultrasonic Testing (UT) – to ensure internal soundness (no voids or laminations in the forging).
Hydrostatic/Pressure Testing (if intended for pressure-retaining parts).
Dimensional Inspection – verifying outside diameter (OD), inside diameter (ID if ring), and thickness conform to the forging print.

Application

Marine Hardware: Propeller shafts, stern tube bushings, and pump housings.
Valve Components: Valve seats, stems, discs, and flanges for high-pressure seawater piping (per ASME B16.24).
Industrial Fasteners: Heavy-duty nuts and bolts where galling resistance is required.
Heat Exchangers: Tube sheets and baffle plates.
Power Generation: Condenser components and turbine fittings.
