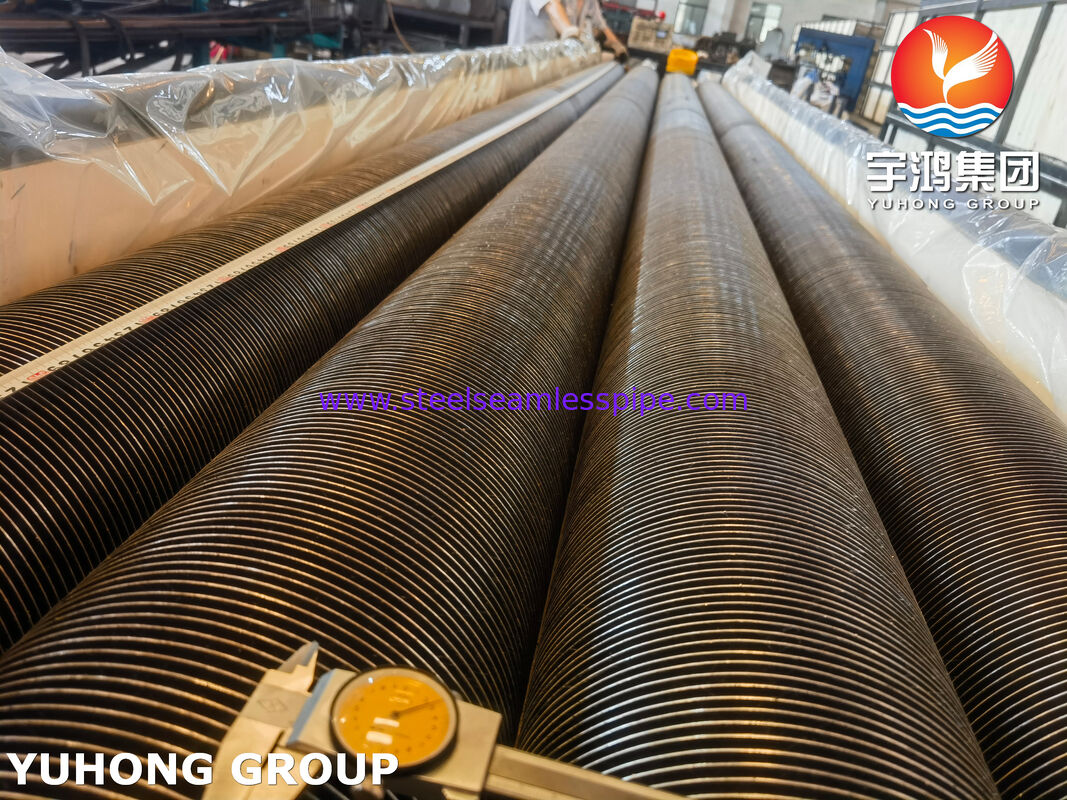

High-Frequency Welded Finned Tubes for Waste Heat Recovery – ASTM A269 TP321 Stainless Steel
High-frequency welded finned tubes manufactured from ASTM A269 TP321 stainless steel are advanced heat transfer components designed for demanding waste heat recovery systems, industrial boilers, fired heaters, exhaust gas heat exchangers, and energy-saving thermal recovery equipment.
By using high-frequency resistance welding technology, the fins are continuously welded onto the tube surface, creating a strong metallurgical bond with excellent heat transfer efficiency, mechanical stability, and resistance to vibration and thermal cycling.
ASTM A269 TP321 is a titanium-stabilized austenitic stainless steel that provides superior resistance to intergranular corrosion after high-temperature exposure. This makes TP321 high-frequency welded finned tubes particularly suitable for applications involving elevated temperatures, corrosive flue gases, and long-term continuous operation.
Compared with conventional wound fin tubes, high-frequency welded finned tubes offer higher fin attachment strength, improved thermal performance, and extended service life, making them a preferred solution for industrial waste heat recovery and heat exchanger applications.

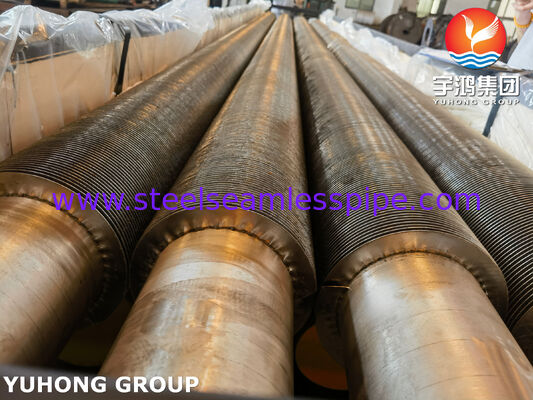

Key Features of ASTM A269 TP321 High-Frequency Welded Finned Tubes
1. High-Strength Fin Welding
The high-frequency welding process creates a durable connection between the fin and base tube, minimizing thermal resistance and preventing fin loosening under vibration or thermal expansion.
2. Excellent High-Temperature Performance
TP321 stainless steel maintains good mechanical strength and oxidation resistance at elevated temperatures, making it suitable for exhaust gas recovery and high-temperature heat exchanger systems.
3. Superior Corrosion Resistance
The titanium stabilization of TP321 reduces carbide precipitation during welding and high-temperature service, improving resistance against intergranular corrosion.
4. Efficient Waste Heat Recovery
The increased external surface area provided by welded fins significantly enhances heat transfer efficiency, allowing recovery of energy from exhaust gases, combustion systems, and industrial processes.
5. Long Service Life
The combination of stainless steel tube material and welded fin construction provides excellent resistance against thermal fatigue, corrosion, and mechanical stress.
Typical Applications
ASTM A269 TP321 high-frequency welded finned tubes are widely used in:
- Waste heat recovery units (WHRU)
- Industrial boiler economizers
- Fired heater convection sections
- Exhaust gas heat recovery systems
- Gas turbine heat recovery equipment
- Refinery and petrochemical heat exchangers
- Chemical processing plants
- Power generation auxiliary heat exchangers
- High-temperature air preheaters
Standard Specifications
| Item |
Specification |
| Product Type |
High-Frequency Welded Finned Tube |
| Base Tube Material |
ASTM A269 TP321 Stainless Steel |
| Manufacturing Process |
High-Frequency Resistance Welding |
| Tube Standard |
ASTM A269 |
| Tube Type |
Seamless / Welded Stainless Steel Tube |
| Fin Material |
Stainless Steel TP321 / TP304 / Customized |
| Fin Type |
Solid Fin or Serrated Fin |
| Surface Treatment |
Pickling, Passivation, Polishing (Optional) |
| Length |
Up to 18,000 mm (Customized Available) |
Common Size Range
The following dimensions are commonly produced for waste heat recovery applications:
Base Tube Dimensions
| Outside Diameter |
Wall Thickness |
| 12.7 mm |
1.0–2.0 mm |
| 15.88 mm |
1.0–2.5 mm |
| 19.05 mm |
1.2–3.0 mm |
| 25.4 mm |
1.5–3.5 mm |
| 31.75 mm |
1.5–4.0 mm |
| 38.1 mm |
2.0–5.0 mm |
| 50.8 mm |
2.5–6.0 mm |
| 63.5 mm |
3.0–6.5 mm |
(Custom dimensions available according to heat exchanger design requirements.)
Typical Fin Specifications
| Parameter |
Standard Range |
| Fin Height |
8–30 mm |
| Fin Thickness |
0.3–1.0 mm |
| Fin Pitch |
2.5–8 fins/inch |
| Fin Type |
Solid / Serrated |
| Fin Arrangement |
Single Start / Multiple Start |
| Maximum Tube Length |
Up to 18 m |
Manufacturing Process
The production process includes:
- Raw material inspection
- Verification of stainless steel grade
- Dimensional inspection
- Chemical composition verification
- Tube preparation
- Surface cleaning
- Removal of oxide layers and contaminants
- High-frequency welding
- Continuous welding of fins onto the tube surface
- Precise control of welding current and speed
- Fin forming and calibration
- Ensuring uniform fin pitch and height
- Final inspection
- Weld quality testing
- Dimensional verification
- Pressure testing
Inspection and Testing Methods
To ensure reliable performance in waste heat recovery systems, TP321 high-frequency welded finned tubes undergo strict quality inspections:
Chemical Composition Test

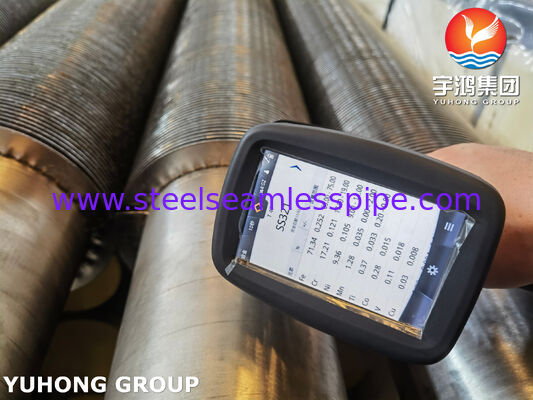

Performed using optical emission spectroscopy (OES) or equivalent methods to verify alloy composition.
Mechanical Testing
Includes:
- Tensile testing
- Yield strength testing
- Elongation testing
- Hardness testing

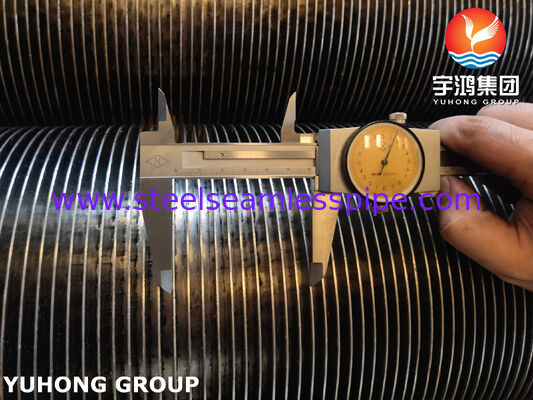

Dimensional Inspection
Checked parameters include:
- Tube outside diameter
- Wall thickness
- Fin height
- Fin pitch
- Fin thickness
- Overall length
- Straightness
Weld Quality Inspection
Includes:
- Visual inspection
- Weld penetration examination
- Fin attachment strength testing
- Macro examination when required
Non-Destructive Testing (NDT)
Available testing methods:
- Eddy current testing
- Ultrasonic testing
- Hydrostatic testing
- Pneumatic testing (if required)
Surface Inspection
Includes:
- Surface finish examination
- Corrosion and oxidation inspection
- Passivation verification
ASTM A269 TP321 Chemical Composition (%)
| Element |
Maximum / Range |
| Carbon (C) |
≤0.08 |
| Silicon (Si) |
≤1.00 |
| Manganese (Mn) |
≤2.00 |
| Phosphorus (P) |
≤0.045 |
| Sulfur (S) |
≤0.030 |
| Chromium (Cr) |
17.0–19.0 |
| Nickel (Ni) |
9.0–12.0 |
| Titanium (Ti) |
5 × C min – 0.70 |
| Iron (Fe) |
Balance |
ASTM A269 TP321 Mechanical Properties
| Property |
Requirement |
| Tensile Strength |
≥515 MPa |
| Yield Strength (0.2% Offset) |
≥205 MPa |
| Elongation |
≥35% |
| Hardness (Typical) |
≤HRB 90 |
| Density |
Approximately 7.9 g/cm³ |
Advantages in Waste Heat Recovery Systems
ASTM A269 TP321 high-frequency welded finned tubes provide:
- Higher heat recovery efficiency
- Reduced fuel consumption
- Improved energy utilization
- Strong resistance to thermal shock
- Reliable operation under high temperatures
- Reduced maintenance requirements
- Extended heat exchanger operating life
These advantages make them an effective choice for industries seeking improved energy efficiency and reduced operating costs.
Why Choose Our ASTM A269 TP321 High-Frequency Welded Finned Tubes?
We manufacture welded finned tubes according to international standards with strict control of:
- Raw material traceability
- Welding quality
- Fin geometry accuracy
- Mechanical performance
- Surface condition
- Final inspection procedures
Customized solutions are available for different waste heat recovery designs, including high-temperature exhaust systems, industrial boilers, and refinery heat recovery equipment.
